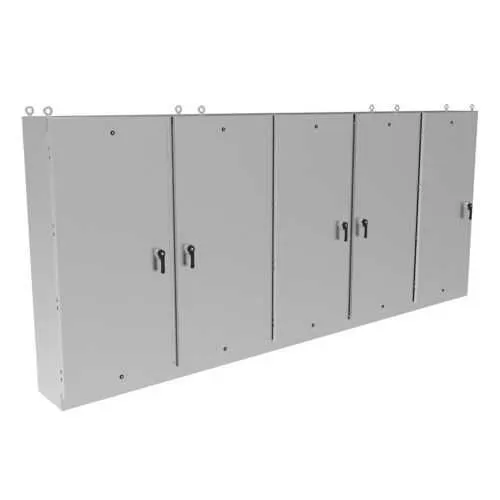

Eaton FD8419618-4XSFS Disconnect Enclosure - NEMA4X
Part Number: FD8419618-4XSFS
Quick Summary
The Eaton FD8419618-4XSFS disconnect enclosure delivers secure, readily accessible power distribution for industrial and commercial facilities. It supports safe, fast service access while protecting mains and control wiring in demanding environments. Many facilities struggle with moisture, dust ingress, and downtime due to inadequate housings; this enclosure helps mitigate those issues with a robust NEMA 4X rating and oil-resistant gasket. The design carries UL 508A and CSA C22.2 listings to meet common electrical codes, alongside NEMA enclosure standards for outdoor and harsh-duty use. Built on the B-Line series platform, it combines stainless steel construction with a ground-mount configuration and a 3-point latching handle for reliable operation, improving long-term maintenance predictability and reducing total cost of ownership.
Product Information
Extended Description
FD8419618-4XSFS Eaton: Eaton B-Line series ground mounted disconnect enclosure, 84"height, 18"length, 196"width, NEMA 4X, Hinged cover, FD4XSFS enclosure, Ground mount, Oil-resistant gasket
Product Name
Eaton B-Line series ground mounted disconnect enclosure
Catalog Number
FD8419618-4XSFS
UPC
799038832584
Product Weight
2519.401 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Stainless steel
Color
Stainless steel
Mounting method
Ground
Special features
3-pt latching handle
Bottom knockouts
10
Large ground mounted enclosure
Accessories section of Enclosure Catalog
Accessories section of Enclosure Catalog
Eaton Specification Sheet-FD8419618-4XSFS
Stainless steel construction provides exceptional corrosion resistance and durability, reducing maintenance cycles and extending service life in outdoor, washdown, or coastal environments. Ground mounting simplifies installation, enhances structural stability, and minimizes space requirements on crowded plant floors. The 3-point latching handle improves security and seal integrity during maintenance windows, helping to prevent tampering and weather-related ingress. An oil-resistant gasket maintains enclosure integrity in humid or chemically aggressive settings, supporting consistent NEMA 4X performance and reducing the risk of internal moisture damage. Ten bottom knockouts offer flexible conduit routing and fast wiring, enabling common electrical installs and streamlined field wiring. Compliance with UL 508A, CSA C22.2, and NEMA requirements reduces engineering time, accelerates regulatory acceptance, and lowers risk when deploying control panels in rugged environments. Designed for the Eaton B-Line enclosure ecosystem, this model ensures compatibility with accessories and spare parts, delivering a cohesive, scalable solution for growing facilities.
Get a Quick Quote for a Eaton FD8419618-4XSFS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FD8419618-4XSFS?
Enquire Now
FAQs
This model uses a ground mounting method as part of the Eaton B-Line series. It is designed to be anchored securely to a concrete pad or equipment base, offering stable support for outdoor or harsh-environment installations and simplifying wiring access during maintenance.
The enclosure carries UL 508A and CSA C22.2 listings and is rated NEMA 4X, providing weather-resistant protection for outdoor and demanding indoor environments, with a stainless steel construction that supports long-term reliability.
Yes. The NEMA 4X rating, stainless steel body, and oil-resistant gasket ensure corrosion resistance and ingress protection in outdoor and washdown areas, making it suitable for harsh-duty installations.
Yes. With UL 508A and CSA C22.2 certifications and NEMA 4X protection, this enclosure aligns with common industrial control panel standards and supports code-compliant, safe installations.
Stainless steel provides superior corrosion resistance and durability, reducing replacement intervals and maintenance costs in challenging environments, while maintaining a clean, professional enclosure appearance for plant floors and outdoor installations.
