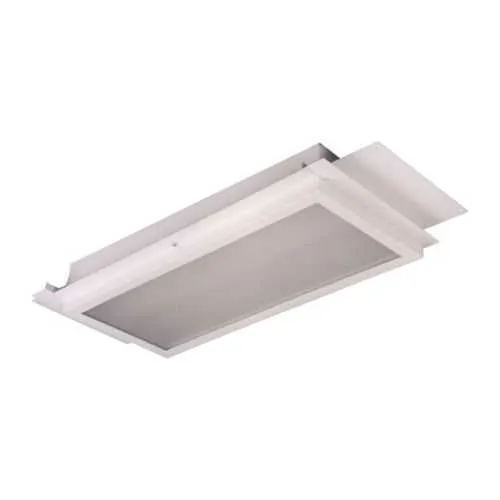

Eaton FDA217PER Marine Light - NEC/CEC
Part Number: FDA217PER
Quick Summary
Eaton FDA217PER Marine Light provides reliable interior illumination for maritime applications. Engineers face corrosion risk, tight spaces, and retrofit constraints aboard vessels, making durable, code-compliant fixtures essential. This luminaire is built to NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, ensuring safe operation in typical marine interiors. The recessed ceiling mount and perpendicular mounting simplify installation in tight overheads while maintaining consistent light distribution. With 17W, two T8 lamps and a rugged steel housing with an acrylic lens, it combines efficiency with long-term durability. In practice, users gain proactive maintenance cycles, reduced energy costs, and compliant lighting that supports regulatory audits for vessel upgrades and new builds.
Product Information
Extended Description
FDA217PER Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FDA marine interior, 50/60 Hz, Acrylic lens, T8, Steel, Perpendicular, Recessed ceiling mount, 2-lamp, 120-277 Vac, 17W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FDA marine interior
Catalog Number
FDA217PER
UPC
662276393691
Product Length/Depth
29.44 in
Product Height
4.13 in
Product Width
19.69 in
Product Weight
15 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Mounting direction
Perpendicular
Light type
T8
Number of lamps
2-lamp
Wattage
17W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Steel
Lens material
Acrylic
Crouse-Hinds series Pauluhn FRD/FDA Marine Interior Recessed Lights flyer
Crouse-Hinds series FDA Marine Interior Continuous Plank Recessed Lights catalog page
IF LBL1485 - FDA Perpendicular Fluorescent Luminaires
Eaton Specification Sheet - FDA217PER
Feature: Two-lamp 17W T8 configuration operating at 120-277 Vac and 50/60 Hz. Business Impact: Delivers energy efficiency across vessel fleets while maintaining compatibility with common shore power and on-board electrical systems. Application: Ideal for corridors, cabins, and galley lighting where reliable performance is required without costly retrofits. Feature: Recessed ceiling mounting with perpendicular orientation. Business Impact: Delivers a clean, low-profile installation that minimizes impact on headroom and reduces glare for crew comfort. Application: Shipboard interiors and overhead spaces where space is at a premium. Feature: Steel housing with acrylic lens. Business Impact: Provides robust durability in corrosive marine environments and easy maintenance with spill-resistant lens. Application: Crew quarters, passageways, and engine room access routes. Feature: Area classification Ordinary/Non-Hazardous Locations and NEC/CEC compliance. Business Impact: Simplifies regulatory approvals and reduces compliance risk during upgrades or new builds. Application: Routine maintenance programs and regulatory audits for marine facilities. Feature: Length, width, and mounting details (29.44 in x 19.69 in x 4.13 in; weight 15 lb). Business Impact: Predictable space planning and weight budgeting for vessel design reviews. Application: Retrofit projects and new installations requiring standard footprint alignment.
Get a Quick Quote for a Eaton FDA217PER
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FDA217PER?
Enquire Now
FAQs
FDA217PER requires a recessed ceiling installation with perpendicular mounting. Plan for a footprint of approximately 29.44 in length, 19.69 in width, and 4.13 in height. Ensure a 120-277 VAC power source on 50/60 Hz and verify ballast compatibility for the two T8 lamps in marine interiors. Adequate clearance around the fixture and doorways is recommended for service access.
The fixture operates at 120-277 VAC with a 50/60 Hz frequency, using a 17W, two-lamp T8 configuration. It features a steel housing and an acrylic lens, designed for recessed ceiling mounting. This makes it compatible with standard shore power and vessel electrical systems, simplifying upgrades and retrofit projects on ships and offshore facilities.
No. The FDA217PER is rated for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC standards but not intended for hazardous or classified marine zones. For such environments, verify alternative models with appropriate explosion-proof or hazardous-location ratings before specification or installation.
FDA217PER complies with NEC/CEC electrical standards and is classified for Ordinary/Non-Hazardous Locations, which supports regulatory reviews and shipboard safety programs. Its construction—steel housing and acrylic lens—paired with a recessed ceiling mount, aligns with industry practices for durable, code-compliant marine interiors.
The 17W two-lamp design reduces energy consumption compared with higher-wattage fixtures, delivering measurable cost savings over time. Durable steel housing and an easy-to-clean acrylic lens lower maintenance costs, while NEC/CEC compliance simplifies inspections and audits, contributing to faster approvals during vessel upgrades or new-build projects.
