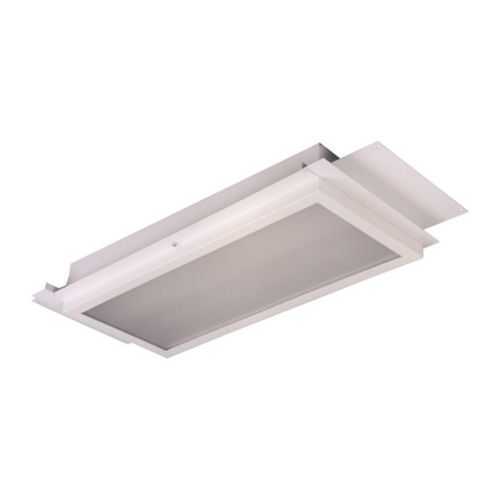

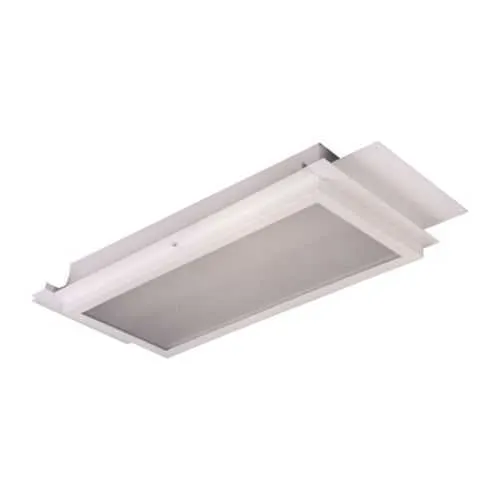

Eaton FDA232PAR-1 Marine Interior Recessed Light - NEC/CEC
Part Number: FDA232PAR-1
Quick Summary
FDA232PAR-1 is a marine interior recessed light from Eaton delivering dependable illumination for shipboard spaces. In demanding vessels, traditional fixtures can struggle with humidity, vibration, and tight ceilings, leading to frequent maintenance and downtime. This fixture is designed to mitigate those challenges by combining robust NEC/CEC compliance with Ordinary/Non-Hazardous location ratings, and a versatile 120–277 VAC, 50/60 Hz supply. It supports parallel mounting in recessed ceilings, bringing reliable lighting with a 57.5 in length, 4.13 in height, and 12.63 in width for streamlined integration. This solution delivers energy-efficient 32 W operation and compatibility with Pauluhn FDA marine interior systems, helping reduce lifecycle costs while improving onboard safety and workflow.
Product Information
Extended Description
FDA232PAR-1 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FDA marine interior, 50/60 Hz, Acrylic lens, T8, Steel, Parallel, Recessed ceiling mount, 2-lamp, Red filter tube with separate ballast (one lamp), 120-277 Vac, 32W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FDA marine interior
Catalog Number
FDA232PAR-1
UPC
662276874343
Product Length/Depth
57.5 in
Product Height
4.13 in
Product Width
12.63 in
Product Weight
23 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Mounting direction
Parallel
Light type
T8
Number of lamps
2-lamp
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Steel
Lens material
Acrylic
Special features
Red filter tube with separate ballast (one lamp)
Crouse-Hinds series Pauluhn FRD/FDA Marine Interior Recessed Lights flyer
Crouse-Hinds series FDA Marine Interior Continuous Plank Recessed Lights catalog page
Feature → Business Impact → Application: 32 W T8 two-lamp configuration delivers consistent lumen output while minimizing energy consumption, reducing long-term operating costs in marine interiors such as galley, corridors, and crew quarters. Application: shipboard lighting programs seeking efficient, compliant fixtures with predictable performance. Feature → Parallel mounting and recessed ceiling method provide a slim profile that simplifies installation in restricted ceiling plenum spaces. Business Impact: accelerates provisioning and reduces retrofit complexities during drydock cycles. Application: new builds and mid-life upgrades where existing Pauluhn FDA platforms are leveraged for compatibility. Feature → Acrylic lens and steel housing enhance durability in vibration-rich environments. Business Impact: improved impact resistance and longer service life in harsh marine conditions. Application: environments with frequent crew movement and potential incidental contact. Feature → Red filter tube with separate ballast (one lamp) offers flexible color control and maintenance options. Business Impact: targeted signaling capability and easier fault isolation, reducing maintenance time. Application: areas requiring zone-specific lighting or diagnostic simplicity in engine rooms and control areas. Feature → 120–277 Vac, 50/60 Hz compatibility ensures broad electrical suitability across fleets. Business Impact: minimizes inventory of spare drivers and facilitates cross-ship deployments. Application: diverse vessel types and offshore platforms where universal voltage compatibility is valued. Feature → NEC/CEC compliance and Ordinary/Non-Hazardous area rating provide regulatory confidence. Business Impact: simplifies procurement, commissioning, and safety approvals. Application: maritime interiors subject to strict electrical standards and non-hazardous location criteria.
Get a Quick Quote for a Eaton FDA232PAR-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FDA232PAR-1?
Enquire Now
FAQs
Installation starts with confirming space for a parallel-mounted, recessed-ceiling fixture. Mounting direction is parallel, with a 57.5 in length, 12.63 in width, and 4.13 in height to fit standard Pauluhn FDA interiors. Connect to 120–277 VAC, ensure the area is Ordinary/Non-Hazardous per NEC/CEC, and verify ballast arrangement for the two-lamp, 32 W T8 setup.
FDA232PAR-1 uses a 32 W, 2-lamp T8 lighting system powered by 120–277 VAC with a 50/60 Hz frequency rating. It features a recessed ceiling mounting method and a steel housing with an acrylic lens, designed for parallel mounting in marine interiors.
Yes. It is designed for marine interior environments and is rated for Ordinary/Non-Hazardous Locations. It complies with NEC/CEC standards, aligning with typical shipboard electrical and safety requirements while enabling broad voltage compatibility and reliable service in vessel interiors.
The red filter tube with a separate ballast (one lamp) provides targeted signaling and easier fault isolation. This simplifies troubleshooting and maintenance in restricted spaces, reduces downtime, and can improve serviceability during routine inspections on ships or offshore platforms.
With a 32 W two-lamp design, 120–277 VAC compatibility, and durable steel housing, the fixture reduces energy use and maintenance frequency in marine interiors. Its compliance with NEC/CEC and Ordinary/Non-Hazardous ratings lowers regulatory risk, supporting longer service intervals and lower lifecycle costs for fleets and offshore operations.
