Eaton FDA232PAREMT2 Interior Recessed Light - Emergency
Part Number: FDA232PAREMT2
Quick Summary

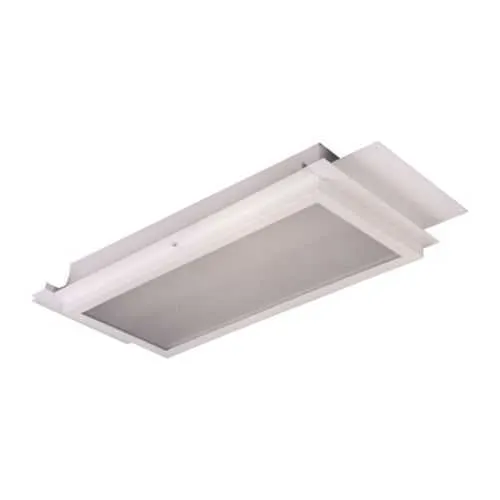

Eaton FDA232PAREMT2 interior recessed light provides reliable, low-profile illumination for marine interiors. Engineers often contend with salt-laden air, tight spaces, and the need for compliant, emergency lighting on board. This fixture meets NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, supporting safe operation in demanding vessel environments. The 2-lamp, 32W T8 configuration operates across 120–277 VAC with a 50/60 Hz supply, and includes an emergency battery back-up ballast for critical loads. Its parallel mounting and recessed ceiling mounting simplify installation in restricted ceiling plenums while delivering consistent light quality. For procurement teams, the durable steel housing and acrylic lens provide long service life with reduced maintenance, helping lower total cost of ownership in shipboard applications.
Product Information
Extended Description
FDA232PAREMT2 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FDA marine interior, 50/60 Hz, Acrylic lens, T8, Steel, Parallel, Recessed ceiling mount, 2-lamp, Emergency battery back-up ballast, one lamp, 277V max., test switch, 120-277 Vac, 32W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FDA marine interior
Catalog Number
FDA232PAREMT2
UPC
662276393738
Product Length/Depth
57.5 in
Product Height
4.13 in
Product Width
12.63 in
Product Weight
23 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Mounting direction
Parallel
Light type
T8
Number of lamps
2-lamp
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Steel
Lens material
Acrylic
Special features
Emergency battery back-up ballast, one lamp, 277V max., test switch
Crouse-Hinds series Pauluhn FRD/FDA Marine Interior Recessed Lights flyer
Crouse-Hinds series FDA Marine Interior Continuous Plank Recessed Lights catalog page
Eaton Specification Sheet - FDA232PAREMT2
Feature → The FDA232PAREMT2 uses a 2-lamp, 32W T8 configuration, delivering efficient illumination with a compact footprint. Business Impact → Reduces energy use and heat load on vessels while maintaining ample lighting for cabin and corridor areas. Application → Marine interior spaces where reliable light with emergency capability is required. Feature → Emergency battery back-up ballast and a test switch provide standby illumination during power loss. Business Impact → Improves safety and uptime for critical shipboard functions, lowering risk of downtime. Application → Engine rooms, passageways, and crew areas requiring uninterrupted visibility. Feature → 120–277 VAC, 50/60 Hz compatibility offers flexible integration with existing vessel electrical systems. Business Impact → Simplifies electrical design and stocking, reducing installation time and commissioning costs. Application → Ships and offshore platforms with varied power distributions. Feature → Recessed ceiling mounting with parallel mounting direction and a steel housing with an acrylic lens. Business Impact → Aesthetically discreet installation with enhanced durability against maritime conditions, minimizing maintenance. Application → Cabin ceilings, corridors, and galley lighting. Feature → NEC/CEC compliance and Ordinary/Non-Hazardous Location rating provide regulatory alignment. Business Impact → Lowers compliance risk and accelerates procurement cycles for fleet deployments. Application → General marine interior lighting installations that require standard regulations and safe operation.
Get a Quick Quote for a Eaton FDA232PAREMT2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FDA232PAREMT2?
Enquire Now
FAQs
The FDA232PAREMT2 is designed for recessed ceiling mounting with a parallel mounting direction, simplifying installation in restricted ceilings. It measures 57.5 inches long, 4.13 inches high, and 12.63 inches wide, housed in steel with an acrylic lens, supporting two 32 W lamps and operating on 120–277 VAC, compatible with typical vessel electrical systems.
The fixture runs at 32 W per fixture with two lamps (2-lamp), operates on 120–277 VAC at 50/60 Hz, uses T8 lamps, and is NEC/CEC compliant with Ordinary/Non-Hazardous Locations, ensuring regulatory alignment for marine interiors.
Yes. It includes an emergency battery back-up ballast and a test switch, providing uninterrupted lighting during power loss. The design supports emergency operation for critical loads, helping maintain visibility in key shipboard areas when mains power is unavailable.
The fixture uses a steel enclosure and an acrylic lens designed to withstand salt air and humidity common on vessels. Recessed mounting and a robust build minimize exposure to impact and weathering while delivering reliable performance across cabins and corridors.
With a 32W two-lamp configuration and durable steel/PMMA construction, maintenance intervals are extended and downtime is reduced. Energy efficiency, combined with NEC/CEC compliance and straightforward installation, lowers total cost of ownership for shipboard lighting across fleets.
