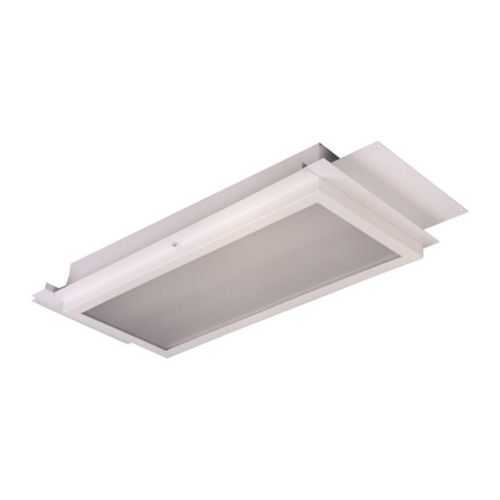

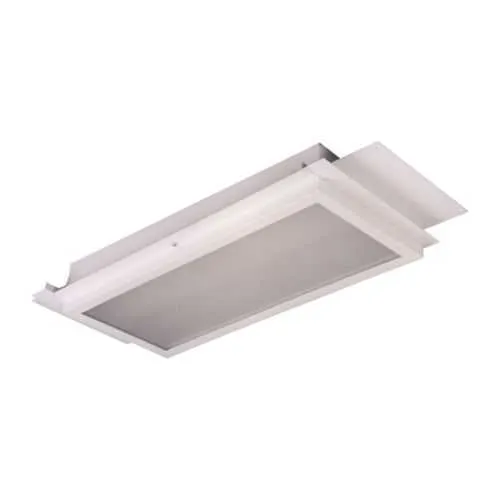

Eaton FDA240PER Marine Interior Recessed Light - NEC/CEC
Part Number: FDA240PER
Quick Summary
Eaton FDA240PER marine interior recessed light delivers reliable illumination for shipboard spaces. Engineers frequently confront the challenge of fitting durable, compliant lighting into tight ceiling plenums while meeting strict NEC/CEC requirements. This fixture carries NEC/CEC compliance and Ordinary/Non-Hazardous Locations classification, ensuring safety and reliability in marine environments. By leveraging a robust steel housing, acrylic lens, and a 2-lamp 34W design, it delivers energy-efficient illumination with proven Pauluhn Meridian compatibility, streamlining procurement, installation, and ongoing maintenance for fleet applications. Designed for 60 Hz operation at 120 VAC, the FDA240PER integrates with existing marine lighting strategies, reducing spares and downtime while delivering consistent, long-lasting light in crew quarters and passageways.
Product Information
Extended Description
FDA240PER Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FDA marine interior, 60 Hz, Acrylic lens, T12ES, Steel, Perpendicular, Recessed ceiling mount, 2-lamp, 120 Vac, 34W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FDA marine interior
Catalog Number
FDA240PER
UPC
662276393769
Product Length/Depth
53.63 in
Product Height
4.13 in
Product Width
19.69 in
Product Weight
26.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Mounting direction
Perpendicular
Light type
T12ES
Number of lamps
2-lamp
Wattage
34W
Voltage rating
120 Vac
Frequency rating
60 Hz
Mounting Method
Recessed ceiling
Material
Steel
Lens material
Acrylic
Crouse-Hinds series Pauluhn FRD/FDA Marine Interior Recessed Lights flyer
Crouse-Hinds series FDA Marine Interior Continuous Plank Recessed Lights catalog page
IF LBL1485 - FDA Perpendicular Fluorescent Luminaires
Eaton Specification Sheet - FDA240PER
Feature: 2-lamp 34W fluorescent luminaire with T12ES lamps and an acrylic lens in a steel housing. Business Impact: delivers bright, reliable illumination with moderate energy use and predictable maintenance cycles. Application: ideal for shipboard interiors such as cabins and corridors demanding consistent light levels. Feature: Acrylic lens and steel enclosure provide robust durability in humid, vibration-prone environments. Business Impact: lowers maintenance costs and extends service life, reducing total cost of ownership. Application: suitable for continuous-duty installations in marine interiors. Feature: Perpendicular mounting and recessed ceiling design maximize headroom and deliver a clean, integrated look. Business Impact: frees up overhead space and improves safety by keeping luminaires out of walkways. Application: perfect for tight ceiling plenum retrofits and new builds. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Locations suitability. Business Impact: regulatory alignment minimizes risk and streamlines procurement. Application: compliant installation across vessel compartments. Feature: Pauluhn Meridian family compatibility simplifies spares and part compatibility. Business Impact: reduces stocking needs and accelerates maintenance. Application: fleet-wide standardization for Pauluhn-based lighting.
Get a Quick Quote for a Eaton FDA240PER
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FDA240PER?
Enquire Now
FAQs
Install as a recessed ceiling luminaire with perpendicular mounting. Check the overall dimensions: 53.63 in length, 19.69 in width, and 4.13 in height, with a 26.5 lb weight. Use 120 VAC at 60 Hz and the 2-lamp T12ES configuration. Refer to LBL1485 installation sheets for guidance and follow shipboard electrical codes.
FDA240PER operates at 120 VAC, 60 Hz, delivering 34 watts of power with a 2-lamp T12ES configuration. The acrylic lens and steel housing are designed for durable marine interior use, aligning with NEC/CEC standards and Ordinary/Non-Hazardous Locations classifications.
Yes. FDA240PER is listed for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. This makes it suitable for crew cabins, corridors, and other non-hazardous interiors aboard vessels, while providing reliable performance and predictable maintenance.
The fixture carries NEC/CEC compliance and is classified for Ordinary/Non-Hazardous Locations. This combination supports regulatory alignment for marine interior installations and reduces risk in vessel lighting projects.
Download the Eaton specification sheet, installation instructions, and catalogs via the provided links: FDA240PER spec sheet, FDA Marine Interior catalog page, and the LBL1485 installation sheet, which streamline commissioning, span installation, and spare-part planning.
