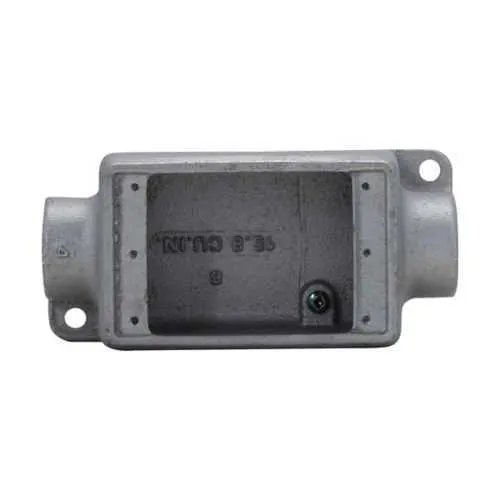

Eaton FDC1 Condulet FD Device Box for NEC/CEC
Part Number: FDC1
Quick Summary
Eaton FDC1 Condulet FD device box is a deep, single-gang enclosure designed to protect field terminations in conduit systems in harsh environments. It reduces installation challenges in tight spaces and simplifies wiring by offering a compact footprint that accommodates standard 1/2-inch trade-size conduits, retrofit-ready for serviceability. NEC/CEC compliance, UL certification for metallic device boxes, and CSA listing for Canada ensure reliability across North American installations in diverse industrial settings. In practice, engineers gain predictable compatibility, rugged construction, and long-term cost savings from fewer field replacements and maintenance. This combination supports efficient control panel assembly on factory floors and plant-wide electrical infrastructure projects.
Product Information
Extended Description
FDC1 Eaton: Eaton Crouse-Hinds series Condulet FD device box, Deep, Feraloy iron alloy, Single-gang, C shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet FD device box
Catalog Number
FDC1
UPC
782274398105
Product Length/Depth
6.03 in
Product Height
2.75 in
Product Width
2.69 in
Product Weight
3.33 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
Deep
Number of gangs
1
Shape
C
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series FS, FD, Single, Multi, Blank Device Boxes and Covers catalog page
FS and FD Device Boxes and Covers UL certification
FS and FD Device Boxes and Covers UL certification
FS and FD Device Boxes and Covers UL certification
Eaton Specification Sheet - FDC1
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Deep, single-gang Condulet FD enclosure provides additional wiring space and easier termination access → Benefit: Improves wiring efficiency and reduces installation time in control panels, lowering labor costs and error rates in industrial automation applications. Application: Use in electrical infrastructure projects where space is constrained but capacity matters. Feature: Feraloy iron alloy construction offers rugged durability and corrosion resistance → Benefit: Extends service life in ordinary locations, reducing replacement frequency and maintenance cycles in harsh environments. Application: Outdoor or semi-exposed installations within mainstream facilities. Feature: 1/2" trade size and 6.03 in length with 2.69 in width and 2.75 in height → Benefit: Standard conduit compatibility and predictable cubic capacity for safe, compliant terminations. Application: CONDULET FD wiring in control panels. Feature: Area classification Ordinary/Non-Hazardous Locations with NEC/CEC standards → Benefit: Simplifies procurement and project planning for U.S. and Canadian deployments, streamlining compliance. Application: Cross-border manufacturing lines. Feature: 3.33 lb weight and C-shaped design → Benefit: Manageable handling and space-efficient mounting in tight panels; enhances installation ergonomics. Application: Equipment racks, wall-mounted enclosures, and panel interiors. Feature: Compatibility with Eaton FS/FD catalog components and covers → Benefit: Faster assembly and guaranteed fit, reducing rework and parts-availability risk. Application: Retrofit and expansion of existing Condulet families in automation systems.
Get a Quick Quote for a Eaton FDC1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FDC1?
Enquire Now
FAQs
The FDC1 delivers a deep, single-gang Condulet FD enclosure designed for standard 1/2 inch conduit terminations. Its compact C-shaped body optimizes mounting on walls or panels, while leaving room for splices and terminations. Use compatible Condulet covers and mounting hardware to ensure a secure, code-compliant installation in control panels and industrial enclosures.
FDC1 measures 6.03 inches in length, 2.75 inches in height, and 2.69 inches in width, weighing 3.33 pounds. It is molded from Feraloy iron alloy, providing rugged durability and corrosion resistance suitable for ordinary locations. The box is deep and single-gang with a 1/2 inch trade size, designed for reliable field terminations.
Yes. The FDC1 is classified for Ordinary/Non-Hazardous Locations and aligns with NEC/CEC standards, simplifying approval for both U.S. and Canadian projects. This makes it a practical choice for cross-border manufacturing facilities and automation installations where consistent compliance is required.
Access the Eaton Specification Sheet for FDC1 directly from Eaton’s site to review detailed electrical ratings and installation guidelines. UL certification information for FS/FD device boxes is available via UL’s database, with related listings for Canada through CSA Group. These resources help verify compliance for your project’s safety and performance requirements.
Absolutely. The FDC1 is designed to be compatible with Eaton Crouse-Hinds Condulet FD covers and other FS/FD catalog components, enabling streamlined panel assembly and future expansion. This compatibility supports standardized spares, faster retrofits, and predictable performance across an automation system’s lifecycle.
