Eaton FDCM1 Condulet FD Device Box - 1/2\" Trade Size NEC/CEC

Part Number: FDCM1
FDCM1
Manufacturer
Eaton
Part number
FDCM1
Category

Quick Summary

Eaton FDCM1 Condulet FD device box provides rugged enclosure for outlet and wiring terminations in harsh industrial environments. In crowded control panels, space constraints, heat buildup, and time-consuming wiring can slow projects. This model carries NEC/CEC compliance, plus UL Canada and CSA certifications for North American installations. By combining deep single-gang footprint with malleable iron protection, it delivers reliable durability while simplifying installation and future maintenance; this translates to faster builds and lower lifecycle costs. For engineers and electricians, it means predictable performance, safer terminations, and a solid base for Condulet FD ecosystem deployments in industrial facilities.

Product Information

Extended Description

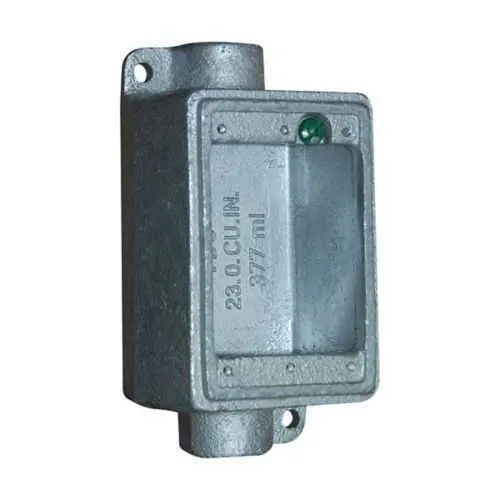

FDCM1 Eaton: Eaton Crouse-Hinds series Condulet FD device box, Deep, Malleable iron, Single-gang, C shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet FD device box
Catalog Number
FDCM1
UPC
662277026604
Product Length/Depth
6.1 in
Product Height
2.87 in
Product Width
2.86 in
Product Weight
3.13 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
Deep
Number of gangs
1
Shape
C
Trade size
1/2"
Material
Malleable iron
Crouse-Hinds series FS, FD, Single, Multi, Blank Device Boxes and Covers catalog page FS and FD Device Boxes and Covers Canadian certification FS and FD Device Boxes and Covers Canadian certification FS and FD Device Boxes and Covers Canadian certification Eaton Specification Sheet - FDCM1 Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Deep enclosure design provides extra space for terminations and wiring. Business Impact: Reduces crowding, minimizes bending radius, and speeds panel wiring during assembly. Application: Ideal for 6.1 in long cavities and 1/2\" trade-size conduits in control panels. Feature: 1-gang, C-shaped box with a 1/2\" trade size. Business Impact: Enables reliable device mounting with compatibility to standard conduit fittings, lowering time-to-wire. Application: Common in machine control panels and junction boxes. Feature: Malleable iron construction. Business Impact: Delivers rugged mechanical protection against impact and vibration, extending service life in tough environments. Application: Suitable for factory floors, metal fabrication lines, and outdoor paging enclosures. Feature: NEC/CEC standards compliance. Business Impact: Ensures code-conforming installations, reducing rework and inspection delays. Application: North American electrical installations in ordinary/non-hazardous locations. Feature: Compatibility with Eaton Condulet FD ecosystem. Business Impact: Simplifies procurement and installation with consistent mounting patterns and readily available covers. Application: Use in conjunction with FS/FD device boxes across control panels and process lines. Feature: Defined dimensions and weight. Business Impact: Aids panel planning and space budgeting, minimizing enclosure overhang and fit issues. Application: 6.1 in length, 2.87 in height, 2.86 in width, 3.13 lb for accurate layout planning.

Get a Quick Quote for a Eaton FDCM1

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton FDCM1? Enquire Now

FAQs

Begin by verifying the 1/2 inch trade-size conduit fittings and mounting pattern for a single-gang FD box. Align with panel knockouts, anchor the box to the enclosure, and route conductors into the deep chamber before terminating devices. The deep design provides extra space for splices and connectors, speeding wiring and reducing crowding.
Yes. The FDCM1 supports NEC/CEC standards, and its Canadian UL and CSA certifications reinforce compliance in North American installations. Use in ordinary/non-hazardous locations ensures alignment with typical electrical codes for industrial facilities.
The FDCM1 measures 6.1 inches in length, 2.87 inches in height, and 2.86 inches in width, with an approximate weight of 3.13 pounds. These measurements support planning for panel depth and wiring space in compact electrical enclosures.
Best suited for control panels, electrical enclosures, and machine-area junctions where a durable, single-gang, 1/2 inch trade-size box is needed. Its deep volume and malleable-iron construction provide reliable protection for terminations in rugged industrial settings.
The Eaton specification sheet for FDCM1 is available from Eaton’s website. Look for the FDCM1 PDF under the Condulet FD device boxes catalog to review detailed dimensions, materials, and compliance information.
