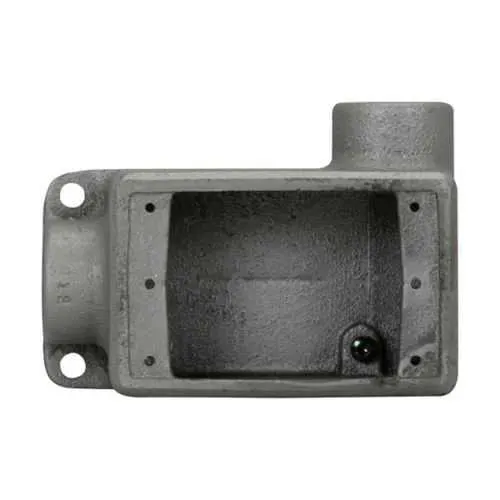

Eaton FDR1 Condulet FD Device Box - Deep Feraloy
Part Number: FDR1
Quick Summary
The Eaton FDR1 Condulet FD device box provides rugged, deep enclosure for wiring in industrial control panels. Engineers often confront space constraints that force tradeoffs between protection and accessibility, risking miswiring or delays. It meets NEC/CEC standards and is documented for ordinary/non-hazardous locations, with CSA and UL certifications available through supporting datasheets. With a 1/2" trade size and feraloy iron alloy construction, this enclosure supports reliable, compliant installations while reducing field install time, integrating smoothly with Condulet FD accessories and standard conduit systems to streamline panel wiring projects.
Product Information
Extended Description
FDR1 Eaton: Eaton Crouse-Hinds series Condulet FD device box, Deep, Feraloy iron alloy, Single-gang, R shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet FD device box
Catalog Number
FDR1
UPC
782274400402
Product Length/Depth
5.16 in
Product Height
2.75 in
Product Width
3.56 in
Product Weight
3.22 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
Deep
Number of gangs
1
Shape
R
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series FS, FD, Single, Multi, Blank Device Boxes and Covers catalog page
FS and FD Device Boxes and Covers Canadian CSA certification
FS and FD Device Boxes and Covers Canadian CSA certification
FS and FD Device Boxes and Covers Canadian CSA certification
Eaton Specification Sheet - FDR1
Industrial Fittings Bend Radius and Cubic Capacity Chart
Deep, single-gang Condulet FD device box delivers roomier wiring space, enabling cleaner terminations and faster installations, which translates to lower labor costs and reduced field errors in dense control panels. The Feraloy iron alloy construction provides rugged protection against impact and wear in demanding environments, improving panel uptime and reducing maintenance calls. The 1/2" trade size compatibility ensures seamless fit with common conduit fittings, adapters, and device thimbles, simplifying procurement and installation. Its dimensions—5.16 in length, 2.75 in height, and 3.56 in width—offer a compact yet ample footprint for devices, accessories, and splices, optimizing panel density without compromising access. Compliance with NEC/CEC standards and ordinary/non-hazardous location classifications supports straightforward code compliance and cross-border projects, while CSA/UL documentation reinforces confidence in certification status. The box’s compatibility with the Crouse-Hinds Condulet FD family means installers can reuse covers and accessories, improving lifecycle cost, spare-part availability, and inventory management for ongoing maintenance and expansion.
Get a Quick Quote for a Eaton FDR1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FDR1?
Enquire Now
FAQs
The FDR1 is designed for 1/2" trade size conduits and pairs with Eaton Condulet FD accessories, including covers and fittings from the same family. This compatibility streamlines procurement, ensures a tight, code-compliant enclosure, and simplifies on-site mounting by using standardized components that fit existing conduit runs.
Yes, the FDR1 carries NEC/CEC standards for general electrical installations. Supporting CSA and UL certification documentation is available via Eaton and third-party databases, confirming compliance for both Canadian and US applications. Always reference the latest datasheet and certification pages to verify approvals for your project scope.
The FDR1 device box measures 5.16 inches in depth, 2.75 inches in height, and 3.56 inches in width, with an approximate weight of 3.22 pounds. These measurements define its single-gang footprint and help determine space planning, mounting clearances, and cable volumes for dense panel layouts.
Choosing the FDR1 provides deeper enclosure capacity within a compact form, reducing cramped wiring and allowing more generous conductor fills. The feraloy iron alloy offers robust protection in harsh environments, while 1/2" trade size compatibility and FD series accessories accelerate installation, improve reliability, and lower field rework costs.
By leveraging a standard 1/2" conduit interface, compatible FD accessories, and a deep single-gang form, the FDR1 minimizes part variety and simplifies wiring layouts. This results in quicker installs, fewer mistakes, easier maintenance access, and lower lifecycle costs due to inventory consistency and long-term availability of covers and components from the Condulet FD family.
