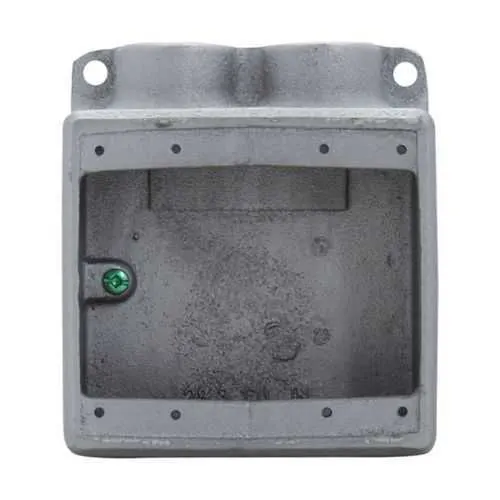

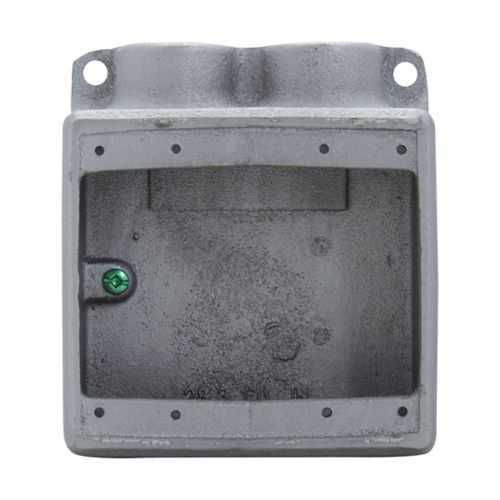

Eaton FDS222 Device Box - 2-Gang, Deep, Feraloy Iron Alloy
Part Number: FDS222
Quick Summary
The Eaton FDS222 device box is a rugged, two-gang enclosure designed for deep conduit applications in industrial control panels. Engineers often struggle with limited space, dense wiring, and corrosion risk that drives maintenance costs. This box meets NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, with Canadian certification through UL and CSA, helping you navigate multi-region compliance. Its feraloy iron alloy construction delivers durable protection in moisture-rich plant environments while maintaining a manageable weight. By combining deep volume with precise dimensions, it supports reliable device mounting and tidy terminations. Use this enclosure to simplify installation, reduce rework, and improve long-term system reliability in automated facilities.
Product Information
Extended Description
FDS222 Eaton: Eaton Crouse-Hinds series Condulet FDS device box, Deep, Feraloy iron alloy, Two-gang, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet FDS device box
Catalog Number
FDS222
UPC
782274400600
Product Length/Depth
5.19 in
Product Height
5.25 in
Product Width
1.69 in
Product Weight
4.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
Deep
Number of gangs
2
Trade size
3/4"
Material
Feraloy iron alloy
Crouse-Hinds series FS, FD, Single, Multi, Blank Device Boxes and Covers catalog page
FS and FD Device Boxes and Covers Canadian certification
FS and FD Device Boxes and Covers Canadian certification
FS and FD Device Boxes and Covers Canadian certification
Eaton Specification Sheet - FDS222
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature deep, two-gang enclosure with 3/4in trade size provides increased cubic capacity for splices and devices, reducing wiring congestion and speeding panel assembly. Business impact: faster installations and fewer call-backs due to cramped terminations. Application: control panels in manufacturing lines where space is at a premium and device density is high. Feature feraloy iron alloy construction delivers superior corrosion resistance in damp or wash-down environments, decreasing maintenance costs and extending service life. Application: outdoor or semi-enclosed industrial spaces where moisture exposure is common. Feature NEC/CEC compliance and Ordinary/Non-Hazardous Location classification simplify regulatory approvals and installation planning, reducing project risk. Application: new builds and retrofits in non-hazardous areas across facilities. Feature compact dimensions and a weight of 4.4 lb facilitate handling and mounting, improving on-site productivity. Application: quick swaps and field service with minimal equipment. Feature compatibility with the Crouse-Hinds Condulet family supports seamless integration with existing conduit boxes and covers, lowering design complexity. Application: modular upgrades in control cabinets with standard FS/FD/Condulet accessories. Feature detailed specification documentation, including a dedicated Eaton specification sheet, aiding accurate site surveys and procurement. Application: engineers verifying fit, capacity, and compliance before purchase.
Get a Quick Quote for a Eaton FDS222
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FDS222?
Enquire Now
FAQs
Begin by confirming the box is sized for two 3/4" conduits and that the mounting surface is suitable for feraloy alloy enclosures. Align knockouts, secure the box with appropriate mounting hardware, and route conductors for clean terminations. Check that the cover aligns properly to maintain enclosure integrity and ensure all wiring fits within the 5.19 in L x 5.25 in H x 1.69 in W interior space.
The FDS222 is a two-gang, deep device box made of feraloy iron alloy. It measures 5.19 inches in length, 5.25 inches in height, and 1.69 inches in width, with an approximate weight of 4.4 pounds. It supports two 3/4 inch trade-size conduits and is designed for ordinary/non-hazardous locations under NEC/CEC standards.
No. The FDS222 is specified for Ordinary/Non-Hazardous Locations and is not rated for hazardous or outdoor weather-exposed environments. For harsher conditions, consider enclosures with appropriate IP ratings and environmental certifications, and verify site conditions against NEC/CEC requirements before selection.
The FDS222 complies with NEC/CEC standards for ordinary locations. It also carries Canadian certification via UL and CSA listings, supporting cross-border use and simplifying multi-region approvals for industrial installations.
Its feraloy iron alloy construction delivers durable protection against moisture and corrosion, reducing replacement cycles. The deep, two-gang design speeds wiring and terminations, minimizing labor costs during installation and field service. Compatibility with the Condulet family further lowers design time and simplifies future upgrades or expansions.
