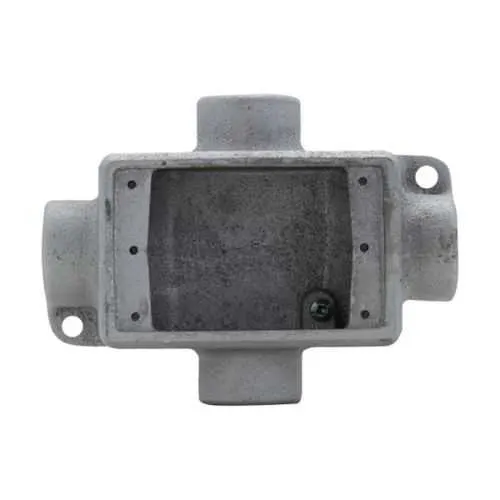

Eaton FDX2 Condulet FD Device Box - Deep Feraloy
Part Number: FDX2
Quick Summary
Eaton FDX2 Condulet FD device box provides rugged, deep enclosure for control wiring in non-hazardous environments. This single-gang Condulet is designed to streamline terminations and reduce installation time, even in tight panels. It adheres to NEC/CEC standards and carries UL certification for metallic device boxes with CSA Canada listings, giving you confidence across North American installations. The FDX2 combines a 3/4" trade size with a robust Feraloy iron alloy body, delivering durable protection while remaining compatible with Eaton’s Crouse-Hinds FS/FD family. For procurement and maintenance teams, this translates to lower repair costs, fewer field adjustments, and consistent compliance in automation projects.
Product Information
Extended Description
FDX2 Eaton: Eaton Crouse-Hinds series Condulet FD device box, Deep, Feraloy iron alloy, Single-gang, X shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet FD device box
Catalog Number
FDX2
UPC
782274401102
Product Length/Depth
6.03 in
Product Height
1.88 in
Product Width
4.5 in
Product Weight
3.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
Deep
Number of gangs
1
Shape
X
Trade size
3/4"
Material
Feraloy iron alloy
Crouse-Hinds series FS, FD, Single, Multi, Blank Device Boxes and Covers catalog page
FS and FD Device Boxes and Covers UL certification
FS and FD Device Boxes and Covers UL certification
FS and FD Device Boxes and Covers UL certification
Eaton Specification Sheet - FDX2
Industrial Fittings Bend Radius and Cubic Capacity Chart
The Deep FDX2 enclosure provides extra internal space for more complex terminations, improving wiring organization and reducing miswiring risk in control panels. This translates to faster installation, fewer punch-down errors, and improved reliability in daily operation. Built from Feraloy iron alloy, the box delivers superior mechanical strength and corrosion resistance, extending service life in demanding plant environments and lowering replacement costs over the lifecycle. With a 1-gang, X-shaped configuration and a 3/4" trade size, it accommodates standard conduit fittings while maintaining a compact footprint, enabling easier panel routing and better heat management. Its ordinary/non-hazardous location rating ensures regulatory compliance without paying for unnecessary hazardous-area protection. The box’s dimensions (6.03 in L, 1.88 in H, 4.5 in W) support predictable fit in compact panels, aligning with common industry standards for quick, error-free integration. Compatibility with the FS/FD catalog lineage simplifies parts stocking and expands reuse across existing installations, reducing total cost of ownership.
Get a Quick Quote for a Eaton FDX2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FDX2?
Enquire Now
FAQs
FDX2 is designed around a 3/4" trade size, which aligns with common conduit fittings used in industrial automation. Its single-gang, 1-cavity design provides straightforward termination access, while the deep body accommodates wiring that requires extra clearance. This compatibility minimizes the need for adapters and reduces installation time.
The FDX2 supports NEC/CEC compliance and carries UL certification for metallic device boxes, with CSA Canada listings referenced in Eaton’s certification materials. This combination ensures regulatory acceptance in ordinary/non-hazardous locations across both the U.S. and Canada, streamlining approvals and audits.
FDX2 is rated for Ordinary/Non-Hazardous Locations, making it ideal for standard industrial, commercial, and automation panels. Its Feraloy iron alloy provides strong mechanical protection and corrosion resistance, offering durable service without needing protective coatings in non-hazardous settings.
The device box measures 6.03 inches in length, 4.5 inches in width, and 1.88 inches in height, with an approximate weight of 3.6 pounds. These dimensions support predictable panel planning and compatibility with typical enclosure layouts in control systems.
The FDX2 leverages a single-gang, X-shaped design for straightforward wiring access and space efficiency. Its deep body accommodates additional conductors and terminations, while compatibility with the Crouse-Hinds FS/FD family simplifies parts stocking and upgrades within existing installations, reducing downtime and total cost of ownership.
