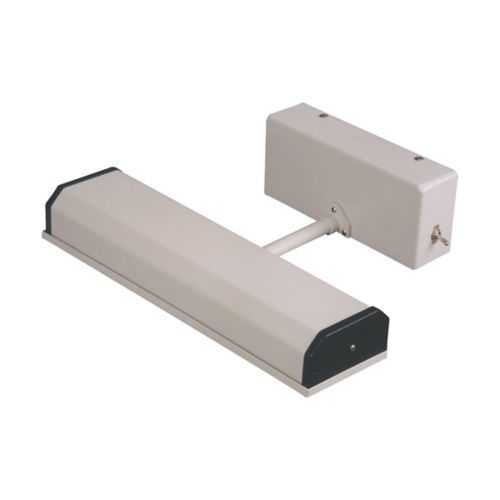

Eaton FE215CV/3 Pauluhn Marine Interior - NEC/CEC
Part Number: FE215CV/3
Quick Summary
FE215CV/3 marine interior luminaire delivers reliable shipboard illumination for marine spaces. On crowded vessels, limited mounting options, corrosion risk, and long repair cycles make lighting projects costly and disruptive. This unit is NEC/CEC compliant and rated for Ordinary/Non-Hazardous locations, supporting safe, compliant deployment. Its 18.5 inch length and rugged aluminum housing streamline installation while the clear acrylic lens preserves visibility and minimizes glare. Designed for 120 Vac at 60 Hz with two 15 W lamps, FE215CV/3 aligns with typical shipboard power systems while reducing energy use and maintenance requirements.
Product Information
Extended Description
FE215CV/3 Eaton: Eaton Crouse-Hinds series Pauluhn FE215 marine interior, 60 Hz, Fluorescent, Clear acrylic lens, T8, Aluminum, 2-lamp, No arm, no neck type, 120 Vac, 15W
Product Name
Eaton Crouse-Hinds series Pauluhn FE215 marine interior
Catalog Number
FE215CV/3
UPC
662276515062
Product Length/Depth
18.5 in
Product Height
7.75 in
Product Width
4.75 in
Product Weight
7.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp type
Fluorescent
Type
No arm, no neck
Number of lamps
2-lamp
Wattage
15W
Light type
T8
Light/lens color
Clear
Material
Aluminum
Lens material
Acrylic
Voltage rating
120 Vac
Frequency rating
60 Hz
Eaton Crouse-Hinds FE215CV/3 3D drawing
Crouse-Hinds series Pauluhn FE215/FE28 Marine Interior Desk and Chart Lights catalog page
IF LBL1533 - FE215/3 and FE28/3 Fluorescent Luminaires
Eaton Specification Sheet - FE215CV/3
Feature: Two-lamp fluorescent configuration (2-lamp, 15W, 120 Vac, 60 Hz) → Business Impact: Delivers bright, even illumination with low power draw, improving crew visibility while reducing energy costs on long voyages. Application: ideal for crew quarters, corridors, and engine spaces on marine vessels. FE215CV/3 is well-suited for marine interior lighting needs where reliable, consistent light is essential. Feature: Aluminum housing with clear acrylic lens → Business Impact: Provides corrosion resistance in salt-air environments and durable light transmission, extending fixture life and reducing maintenance intervals. Application: shipboard interiors such as galleys, cabins, and passageways. Feature: No arm, no neck mounting; 18.5 in long, 4.75 in wide, 7.75 in high; 7.6 lb → Business Impact: Simplifies retrofits and speeds installation, minimizing vessel downtime and easing handling in tight spaces. Application: retrofit projects and new builds in restricted ceiling cavities. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating → Business Impact: Streamlines regulatory approvals and installation planning, lowering risk of non-compliance and rework. Application: standard shipboard electrical projects across fleets. Feature: Availability of installation resources including 3D CAD drawings, installation sheets, and catalogs → Business Impact: Accelerates design review and field deployment, reducing procurement errors and on-site delays. Application: engineering, procurement, and maintenance teams.
Get a Quick Quote for a Eaton FE215CV/3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FE215CV/3?
Enquire Now
FAQs
FE215CV/3 is designed for ordinary/ non-hazardous locations and operates at 120 VAC, 60 Hz, making it compatible with standard shipboard electrical systems. Its no-arm, no-neck mounting and 18.5 in length simplify retrofits into existing Pauluhn FE215/FE28 circuits. For installations, refer to the IF LBL1533 instruction sheet and the 3D CAD drawing package to ensure accurate mounting clearances and wiring runs.
Key specs include a two-lamp fluorescent configuration at 15W per lamp, total 30W, 120 VAC, 60 Hz input, T8 lamp type with a clear acrylic lens and aluminum housing. Dimensions are 18.5 in length, 7.75 in height, 4.75 in width, and weight 7.6 lb. It is rated for ordinary/ non-hazardous locations and complies with NEC/CEC standards.
Yes. FE215CV/3 is specified for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC standards. This makes it appropriate for crew areas, corridors, cabins, and other interior spaces on vessels where standard electrical practices apply, without requiring explosion-proof or specialized hazardous-area ratings.
FE215CV/3 carries NEC/CEC standards compliance and is rated for Ordinary/Non-Hazardous Locations. While it does not carry SIL, CE, or IP-specific ratings in the provided data, its NEC/CEC compliance supports regulatory alignment for general marine interior installations.
Comprehensive resources include installation instructions IF LBL1533, a 3D CAD drawing package, and the Crouse-Hinds FE215/FE28 Marine Interior desk/chart lights catalog page. These materials help with mounting details, wiring diagrams, and reference designs during procurement and on-site setup.
