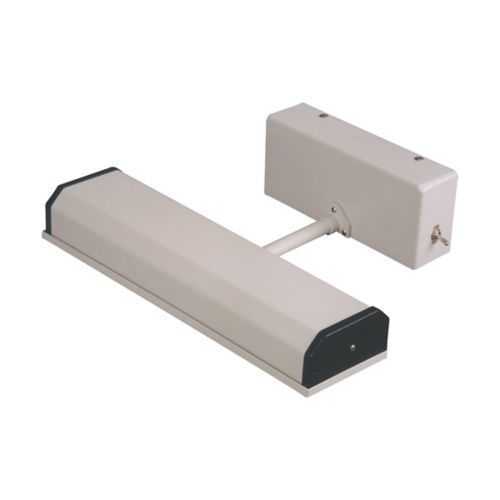

Eaton FE215RV/1 Marine Interior Lighting - NEC/CEC
Part Number: FE215RV/1
Quick Summary
Eaton FE215RV/1 marine interior lighting delivers rugged, reliable illumination for vessel interiors. This fixture helps shipyards and maintenance teams address cramped spaces and the need for durable, corrosion-resistant lighting that minimizes downtime. Built to NEC/CEC standards and rated for Ordinary/Non-Hazardous Locations, it meets essential regulatory requirements while safely performing in marine environments. The 2-lamp fluorescent design, 120 Vac operation, and red acrylic lens support clear signaling and visibility, reducing ballast and replacement costs over time. With aluminum housing and a lightweight 8.2 lb footprint, it ships ready for easy installation and ongoing service in professional marine applications using standard tools.
Product Information
Extended Description
FE215RV/1 Eaton: Eaton Crouse-Hinds series Pauluhn FE215 marine interior, 60 Hz, Fluorescent, Red acrylic lens, T8, Aluminum, 2-lamp, Arm type, 120 Vac, 15W, 14.31" height
Product Name
Eaton Crouse-Hinds series Pauluhn FE215 marine interior
Catalog Number
FE215RV/1
UPC
662276393929
Product Length/Depth
18.5 in
Product Height
14.31 in
Product Width
4.75 in
Product Weight
8.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp type
Fluorescent
Type
Arm
Number of lamps
2-lamp
Wattage
15W
Light type
T8
Light/lens color
Red
Material
Aluminum
Lens material
Acrylic
Voltage rating
120 Vac
Frequency rating
60 Hz
Eaton Crouse-Hinds FE215RV/1 3D drawing
Crouse-Hinds series Pauluhn FE215/FE28 Marine Interior Desk and Chart Lights catalog page
Eaton Specification Sheet - FE215RV/1
Feature: 2-lamp fluorescent design with 15W per lamp operating at 120 Vac, 60 Hz. Business Impact: Delivers efficient lighting with predictable energy use and easy lamp replacement, reducing operating costs. Application: Ideal for cabin, galley, and engine-room spaces where reliable illumination is critical. Feature: Red acrylic lens and aluminum housing. Business Impact: Enhances visibility and signaling while resisting corrosion in marine environments, extending service life. Application: Suitable for overhead mounting in damp interiors without compromising aesthetics. Feature: Arm-type mounting with dimensions 18.5 in length, 14.31 in height, and 4.75 in width; weight 8.2 lb. Business Impact: Facilitates retrofits and quick installation in tight vessel spaces, lowering installation time and labor costs. Application: Commonly used in bulkhead and ceiling arrangements aboard ships. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Locations rating. Business Impact: Ensures regulatory alignment and reduced compliance risk, enabling safer fleet operations. Application: Approved for standard marine interiors where hazardous atmosphere requirements do not apply. Feature: Documentation and compatibility. Business Impact: Access to 3D CAD drawings, catalogs, and spec sheets accelerates design validation and procurement, improving project timelines. Application: Streamlines engineering workflows and BIM integration for marine projects.
Get a Quick Quote for a Eaton FE215RV/1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FE215RV/1?
Enquire Now
FAQs
FE215RV/1 is designed with an arm-type mounting suitable for overhead or bulkhead installations. Its dimensions (18.5 in length, 4.75 in width, 14.31 in height) fit compact retrofits, and the aluminum housing provides durability in damp environments. When mounting, ensure proper clearance for lamp access and follow NEC/CEC wiring guidelines for 120 Vac, 60 Hz systems.
The fixture runs at 120 Vac, 60 Hz and houses two 15W fluorescent lamps (total 30W). It uses T8 lamps and a red acrylic lens. Plan for ballast compatibility, provide proper wiring in non-hazardous areas, and account for the 8.2 lb weight and space for installation hardware. Ensure termination follows NEC/CEC requirements for marine electrical systems.
Yes. FE215RV/1 carries NEC/CEC compliance and is rated for Ordinary/Non-Hazardous Locations, making it suitable for cabins, compartments, and decks that do not present hazardous atmospheres. Always verify vessel class requirements and local regulatory interpretations to ensure full compliance in your specific installation.
Official data include a 3D CAD drawing package, a Crouse-Hinds Pauluhn FE215/FE28 interior catalog page, and an Eaton specification sheet. Access these resources to support design validation, BIM workflows, and precise part selection for retrofits or new builds on marine projects.
Fluorescent fixtures like FE215RV/1 offer long lamp life and readily available replacement lamps, minimizing downtime. The aluminum housing resists corrosion in marine atmospheres, and the arm-type mounting simplifies servicing. Together, these factors reduce maintenance frequency, energy use, and total cost of ownership across multiple vessels.
