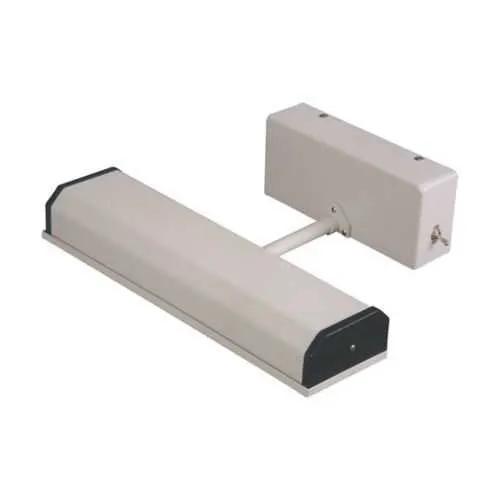

Eaton FE215RV/2 Marine Interior Luminaires - NEC/CEC
Part Number: FE215RV/2
Quick Summary
Eaton FE215RV/2 marine interior luminaire provides reliable fluorescent lighting for shipboard interiors. It’s designed to withstand the demands of confined, moisture-prone spaces while delivering consistent illumination. Engineers often struggle with maintenance access and component corrosion in crew areas; this fixture’s aluminum housing and acrylic lens help mitigate those risks. The unit complies with NEC/CEC standards for ordinary/non-hazardous locations and operates on a 120 VAC 60 Hz supply, which aligns with common vessel electrical systems. By integrating a two-lamp T8 setup at 15W per lamp, it reduces energy consumption while keeping output predictable for chart rooms, living quarters, and engineering spaces. Overall, FE215RV/2 supports safer, more efficient marine lighting with straightforward installation and serviceability.
Product Information
Extended Description
FE215RV/2 Eaton: Eaton Crouse-Hinds series Pauluhn FE215 marine interior, 60 Hz, Fluorescent, Red acrylic lens, T8, Aluminum, 2-lamp, Arm type, 120 Vac, 15W, 18.75" height
Product Name
Eaton Crouse-Hinds series Pauluhn FE215 marine interior
Catalog Number
FE215RV/2
UPC
662276533509
Product Length/Depth
18.5 in
Product Height
18.75 in
Product Width
4.75 in
Product Weight
8.7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp type
Fluorescent
Type
Arm
Number of lamps
2-lamp
Wattage
15W
Light type
T8
Light/lens color
Red
Material
Aluminum
Lens material
Acrylic
Voltage rating
120 Vac
Frequency rating
60 Hz
Eaton Crouse-Hinds FE215RV/2 3D drawing
Crouse-Hinds series Pauluhn FE215/FE28 Marine Interior Desk and Chart Lights catalog page
IF LBL1534 - FE215/2 and 4, FE28/2 and 4 Fluorescent Luminaires
Eaton Specification Sheet - FE215RV/2
Feature: Two-lamp, 15W per lamp fluorescent configuration provides a total of 30W runtime. Business Impact: Lower energy consumption and predictable ballast load improve operating costs on vessel fleets while maintaining sufficient illumination for critical tasks. Application: Chart rooms and crew quarters where steady, reliable light supports accuracy and comfort. Feature: Aluminum housing with a red acrylic lens delivers durable, corrosion-resistant construction. Business Impact: Extended service life in harsh marine environments reduces maintenance intervals and replacement costs. Application: Interior bulkheads and corridors where visibility and environmental resistance matter. Feature: Arm-type mounting with 18.75 in height, 18.5 in length, and 4.75 in width offers flexible installation. Business Impact: Simplified retrofit or new-build integration across differing vessel layouts lowers installation time and labor costs. Application: Engine rooms, passages, and workstation areas with varying mounting constraints. Feature: 120 VAC, 60 Hz operation and NEC/CEC compliance for ordinary/non-hazardous locations. Business Impact: Ensures regulatory alignment and compatibility with common shipboard power distributions, reducing risk during inspections. Application: Standard maritime electrical systems in commercial and auxiliary spaces. Feature: Red lens and 2-lamp T8 fluorescent technology balance visibility with energy efficiency. Business Impact: Enhanced crew visibility for safety-critical tasks while maintaining cost-effective lighting. Application: Navigation desks, chart tables, and living quarters that benefit from conspicuous yet economical lighting. Feature: Availability of installation resources including IF LBL1534 instruction sheet, catalogs, and 3D drawings. Business Impact: Accelerates commissioning, minimizes field ambiguities, and supports precise pre-installation planning. Application: New builds and retrofits in shipyards and maintenance facilities.
Get a Quick Quote for a Eaton FE215RV/2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FE215RV/2?
Enquire Now
FAQs
FE215RV/2 uses an arm-type mounting designed for marine interiors. Its dimensions are 18.5 in length, 18.75 in height, and 4.75 in width, with an 8.7 lb weight, making it suitable for a range of bulkheads and ceilings. Installation follows Eaton’s LBL1534 guidance and available 3D drawings to ensure proper clearance and serviceability in chart rooms, crew spaces, and passageways.
The fixture runs on 120 VAC at 60 Hz and uses two 15W lamps (total 30W). It is designed for ordinary/non-hazardous locations and complies with NEC/CEC standards. This makes it compatible with typical vessel power distributions and simplifies integration with existing shipboard electrical systems.
Yes. FE215RV/2 is described as a marine interior luminaire with aluminum housing and acrylic lens to withstand shipboard conditions. It carries NEC/CEC standards alignment and is specified for Ordinary/Non-Hazardous locations, aligning with regulatory expectations for non-hazardous shipboard interiors while delivering reliable, durable lighting.
Plan for standard lamp service since this is a fluorescent, two-lamp unit. The arm-type mounting aids access in confined spaces, and the installation is supported by Eaton’s instruction sheet IF LBL1534 and catalogs. For maintenance, schedule lamp replacements at 15W per lamp (per lamp) while keeping spare T8 lamps on hand to minimize downtime.
FE215RV/2 stands out with a 2-lamp T8 fluorescent setup, a red acrylic lens, aluminum housing, and an arm-type mounting profile optimized for interior shipboard spaces. It also carries NEC/CEC compliance for ordinary/non-hazardous locations and 120 VAC/60 Hz operation, offering a balanced mix of durability, ease of installation, and regulatory compatibility.
