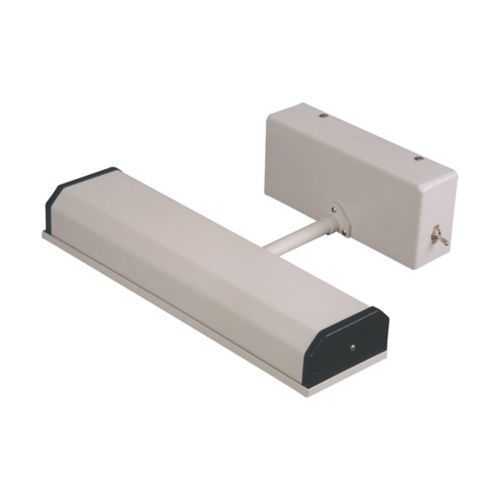

Eaton FE215RV/4 Lighting for Marine Interiors - NEC/CEC
Part Number: FE215RV/4
Quick Summary
FE215RV/4 marine interior lighting is a rugged two-lamp fluorescent luminaire designed for shipboard interiors and other non-hazardous areas. Operators frequently face harsh environments, cramped spaces, and the need for dependable lighting that minimizes maintenance. This Eaton Crouse-Hinds Pauluhn fixture complies with NEC/CEC standards for Ordinary/Non-Hazardous Locations and supports 120V, 60 Hz systems on marine platforms. The red acrylic lens enhances visibility in constrained corridors, while the aluminum housing delivers corrosion resistance in salty atmospheres. By combining high reliability with energy-efficient 15W lamps, this solution helps shipowners reduce downtime and total cost of ownership, while maintaining compliance and consistent illumination across critical work zones.
Product Information
Extended Description
FE215RV/4 Eaton: Eaton Crouse-Hinds series Pauluhn FE215 marine interior, 60 Hz, Fluorescent, Red acrylic lens, T8, Aluminum, 2-lamp, Arm type, 120 Vac, 15W, 24.75" height
Product Name
Eaton Crouse-Hinds series Pauluhn FE215 marine interior
Catalog Number
FE215RV/4
UPC
662276533530
Product Length/Depth
18.5 in
Product Height
24.75 in
Product Width
4.75 in
Product Weight
9.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp type
Fluorescent
Type
Arm
Number of lamps
2-lamp
Wattage
15W
Light type
T8
Light/lens color
Red
Material
Aluminum
Lens material
Acrylic
Voltage rating
120 Vac
Frequency rating
60 Hz
Eaton Crouse-Hinds FE215RV/4 3D drawing
Crouse-Hinds series Pauluhn FE215/FE28 Marine Interior Desk and Chart Lights catalog page
IF LBL1534 - FE215/2 and 4, FE28/2 and 4 Fluorescent Luminaires
Eaton Specification Sheet - FE215RV/4
Feature 2-lamp 15W fluorescent design provides bright, energy-efficient lighting with lower running costs and cooler operation in confined spaces. Business Impact: reduces energy consumption, lowers maintenance cycles, and extends lamp life in continuous-use marine applications. Application: ideal for interior cargo holds, crew areas, and chart rooms where consistent visibility is essential. Feature aluminum housing offers robust corrosion resistance for marine environments, improving longevity and reducing replacement expenses. Application: supports long service life on vessels exposed to humidity and salt spray. Feature red acrylic lens enhances zone identification and emergency signaling, improving crew safety and wayfinding. Business Impact: accelerates response times during operations or evacuations. Application: suitable for passageways and control panels requiring quick visual cues. Feature arm-type mounting enables flexible installation with existing fixtures or retrofit projects, minimizing vessel downtime. Application: compatible with standard overhead structures on ships and platforms. Feature 120 Vac 60 Hz electrical compatibility ensures integration with common shipboard electrical systems, reducing the need for transformers or adapters. Business Impact: lowers installation complexity and cost. Application: widely compatible across fleets with standard electrical infrastructure. Feature NEC/CEC compliance confirms suitability for Ordinary Locations, simplifying procurement and regulatory validation. Application: supports compliant lighting strategies across marine interiors and offshore vessels. Overall, FE215RV/4 demonstrates a balanced combination of performance, durability, and installer-friendly features tailored to the marine sector, backed by Pauluhn lineage and industry relevance.
Get a Quick Quote for a Eaton FE215RV/4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FE215RV/4?
Enquire Now
FAQs
The FE215RV/4 is an arm-type luminaire designed for marine interiors with standard mounting footprints. Its dimensions (approximately 18.5 in length, 24.75 in height, 4.75 in width) fit typical overhead mounting spaces, and the arm mount facilitates straightforward retrofits alongside existing fixtures. Ensure the mounting location provides adequate clearance for the red acrylic lens and service access for lamp replacement.
FE215RV/4 uses two fluorescent lamps (2-lamp) with a total wattage of 15W per lamp, operating at 120 VAC and 60 Hz. This configuration delivers efficient illumination suitable for ordinary locations in marine interiors while maintaining compatibility with standard shipboard electrical systems.
Yes. The fixture is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. This makes it suitable for non-hazardous interiors on ships and offshore platforms, simplifying procurement and regulatory validation while providing reliable lighting for routine operations.
Maintenance benefits come from the aluminum housing's corrosion resistance and the modular fluorescent lamps, which are relatively easy to replace. The 24.75 in height and 18.5 in length support accessible service points, while the rugged Pauluhn design minimizes downtime during routine inspections and lamp replacements in confined spaces.
The 2-lamp, 15W design lowers energy consumption compared with higher-wattage marine luminaires, reducing operating costs. Durable aluminum housing and a red lens improve visibility and reliability in critical zones, lowering maintenance frequency. The fixture’s NEC/CEC compliance also streamlines procurement and regulatory audits, contributing to a favorable total cost of ownership.
