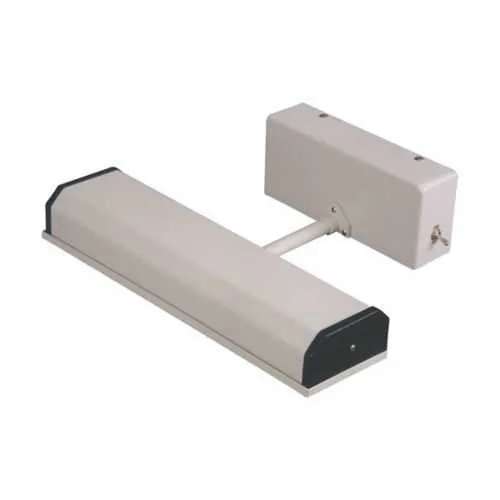

Eaton FE28/2 Marine Interior Luminaire - NEC/CEC
Part Number: FE28/2
Quick Summary
Eaton FE28/2 marine interior luminaire provides reliable fluorescent lighting for shipboard cabins and compartments. Engineers often struggle with corrosion-prone environments, space constraints, and the need for dependable spares during long voyages. This fixture meets NEC/CEC standards for ordinary/non-hazardous locations, features a robust aluminum housing, and delivers a two-lamp, 8W T5 fluorescent solution that’s designed for 120 VAC at 60 Hz. Its compact footprint and adjustable mounting support flexible installations on decks, in galleys, or chart rooms, while offering predictable performance and streamlined maintenance. For procurement teams, the FE28/2 combines marine-grade durability with familiar electrical specs to reduce retrofit risk and total cost of ownership.
Product Information
Extended Description
FE28/2 Eaton: Eaton Crouse-Hinds series Pauluhn FE28 marine interior, 60 Hz, Fluorescent, T5, Aluminum, 2-lamp, Single adjustable type, 120 Vac, 8W
Product Name
Eaton Crouse-Hinds series Pauluhn FE28 marine interior
Catalog Number
FE28/2
UPC
662276528772
Product Length/Depth
18.5 in
Product Height
18.75 in
Product Width
4.75 in
Product Weight
3.96 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp type
Fluorescent
Type
Single adjustable
Number of lamps
2-lamp
Wattage
8W
Light type
T5
Material
Aluminum
Voltage rating
120 Vac
Frequency rating
60 Hz
Eaton Crouse-Hinds FE28/2 3D drawing
Crouse-Hinds series Pauluhn FE215/FE28 Marine Interior Desk and Chart Lights catalog page
IF LBL1534 - FE215/2 and 4, FE28/2 and 4 Fluorescent Luminaires
Eaton Specification Sheet - FE28/2
Feature: Aluminum housing provides corrosion resistance → Business impact: Extends service life in salt-air marine interiors, lowering maintenance and replacement costs → Application: Ideal for cabins, engine rooms, and chart rooms where exposure to humidity and salt spray is common. Feature: 2-lamp T5 fluorescent configuration at 8W → Business impact: Delivers sufficient illumination with low energy consumption, reducing ongoing power usage and heat load → Application: Desk and chart lighting zones, workbenches, and control panels on vessels. Feature: Single adjustable fixture with 18.5 in length, 18.75 in height, and 4.75 in width → Business impact: Flexible mounting and alignment improves installation efficiency and reduces retrofit complexity → Application: Narrow overhead spaces and modular interiors in marine environments. Feature: 120 VAC, 60 Hz operation → Business impact: Full compatibility with standard ship electrical systems minimizes wiring changes and risk → Application: Retrofit projects and new builds using common maritime electrical practices. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous area classification → Business impact: Regulatory risk reduction and safer operation in non-hazardous zones → Application: Marine interior lighting where certified performance and regulatory alignment are required. Feature: Access to installation and datasheet resources (LBL1534 sheet, FE28/2 specs) → Business impact: Accelerates commissioning and helps ensure correct installation → Application: Electrical contractor onboarding and maintenance planning for fleets.
Get a Quick Quote for a Eaton FE28/2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FE28/2?
Enquire Now
FAQs
The FE28/2 features an adjustable single-lamp design with a compact 18.5 by 18.75 by 4.75 inch footprint and aluminum housing. Installers should follow the LBL1534 instruction sheet and ensure mounting points accommodate the fixture’s dimensions. With 120 VAC at 60 Hz, standard ship electrical practices apply, and the two-lamp configuration supports re-lamping without full fixture replacement.
FE28/2 operates at 120 VAC and 60 Hz, using a fluorescent T5 lamp configuration with a total wattage of 8W across two lamps. This makes it suitable for shipboard applications using common U.S. electrical standards, while delivering efficient lighting for interior tasks and chart work.
No. The FE28/2 is certified for Ordinary/Non-Hazardous Locations under NEC/CEC standards. It should not be used in hazardous or classified locations. For such zones, verify alternative fixtures with appropriate explosion-proof or hazardous-location ratings from Eaton’s Pauluhn line.
Official resources include the FE28/2 specification sheet, the FE215/FE28 Marine Interior catalog page, the installation sheet IF LBL1534, and a 3D CAD drawing package. These documents provide detailed mounting instructions, dimensional data, and accessory guidance to support accurate selection and installation.
The aluminum housing resists corrosion in salt-air environments, reducing corrosion-related maintenance. The two-lamp, low-wattage 8W design lowers energy use and heat output, contributing to lower operating costs. Combined with NEC/CEC compliance, the fixture supports regulatory alignment and longer service intervals, improving fleet-wide reliability and ROI on retrofits.
