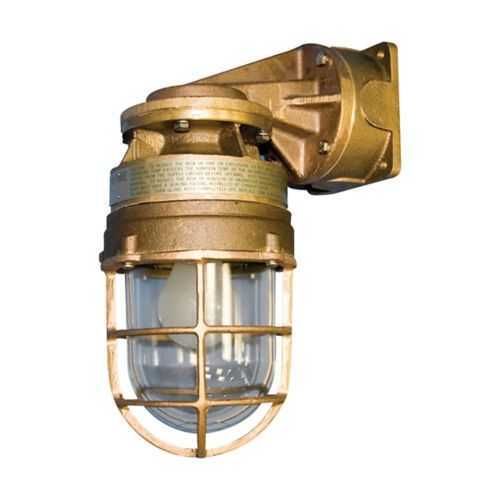

Eaton FEPB47B-26 Globe & Guard - IP66, Hazardous Location
Part Number: FEPB47B-26
Quick Summary
FEPB47B-26 is an Eaton Crouse-Hinds globe and guard designed for durable wall-mounted lighting in hazardous/classified locations. It addresses common pain points like corrosion, impact, and enclosure damage in harsh environments where reliability matters. The luminaire delivers NEC/CEC compliance with NEC hazardous ratings for Class I, Division 1 and Division 2, alongside NEMA 4X and IP66 protection for tough washdowns and weather exposure. By combining a brass guard with a tempered glass globe and a 26W compact fluorescent lamp, it supports energy-efficient operation and extended service life. This solution enables faster installation, reduced maintenance, and safer containment of electrical enclosures in industrial facilities.
Product Information
Extended Description
FEPB47B-26 Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Clear tempered glass globe, With cast brass guard, Compact fluorescent, Brass, CF max. lamp size, Wall mount, 120 Vac, 26W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
FEPB47B-26
UPC
662276634480
Product Length/Depth
9.38 in
Product Height
12.25 in
Product Width
5.75 in
Product Weight
28.5 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Wall
Wattage
1 x 30W
Lamp type
Compact fluorescent
Lamp size - max
CF
Base type
Medium
Guard type
With cast guard
Voltage rating
120 Vac
Frequency rating
50/60 Hz
Globe color
Clear
Globe material
Tempered glass
Guard material
Brass
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1414 - EP Fluorescent - Wall Mount
Eaton Specification Sheet - FEPB47B-26
Rugged brass guard and tempered-glass globe deliver exceptional durability in aggressive environments, reducing maintenance cycles and replacement costs for hazardous-location lighting projects. This translates to lower total cost of ownership and fewer downtime events in refineries, chemical plants, and mining operations. The 26W compact fluorescent lamp, paired with a medium base and CF max lamp size, delivers reliable illumination while optimizing energy use and ballast life, helping facilities meet sustainability goals without sacrificing performance. The IP66 and NEMA 4X ratings provide confident ingress protection against dust, water, and washdowns, ensuring consistent operation in washdown zones and outdoor-adjacent areas. Compatibility with wall mounting simplifies retrofits and new installs, enabling faster project completion and standardized spare parts across sites. Designed for NEC/CEC compliance and Class I, Division 1 and 2 environments, this luminaire reduces regulatory risk and supports safer plant operation. The unit’s solid brass guard and clear tempered-glass globe minimize impact damage and provide clear visibility for critical work areas in harsh environments. Overall, FEPB47B-26 offers a proven solution for hazardous-location lighting where reliability and compliance are non-negotiable.
Get a Quick Quote for a Eaton FEPB47B-26
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FEPB47B-26?
Enquire Now
FAQs
The FEPB47B-26 is designed for hazardous/classified locations and is suitable for Class I, Division 1 and 2 environments. Its wall-mount configuration, IP66 ingress protection, and NEMA 4X rating make it ideal for chemical plants, refineries, mining, and outdoor areas where exposure to dust, water, and washdowns is common.
Key specs include 120 VAC operation at 50/60 Hz, a 1 Ă— 30 W compact fluorescent lamp, a medium base, and CF max lamp size set for CFL lamps. The globe is clear tempered glass with a brass guard, designed for reliable illumination in tough environments.
Yes. The FEPB47B-26 carries NEC/CEC compliance for hazardous locations, including NEC hazardous ratings for Class I, Division 1 and Division 2. It also features NEMA 4X and IP66 ratings to support safe and compliant operation in harsh industrial settings.
The brass guard and tempered-glass globe protect critical components from impact and washdown exposure, reducing replacement frequency. The CFL lamp provides energy-efficient lighting with longer intervals between maintenance cycles, contributing to lower total cost of ownership and less downtime in plant operations.
Yes. Its wall-mount design and medium-base CFL configuration support straightforward retrofits and new installations. The compact dimensions and robust ingress protection simplify replacement of older globe-and-guard fixtures in hazardous areas while maintaining compliance and safety standards.
