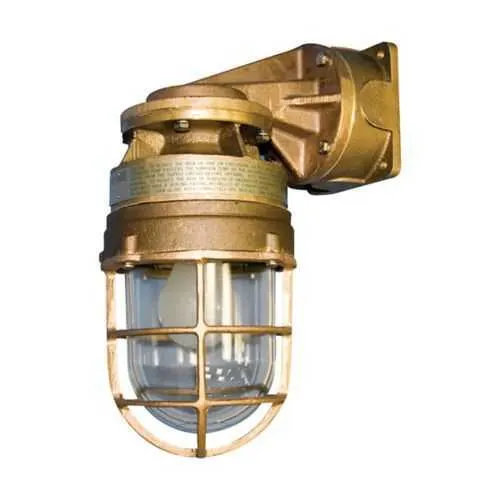

Eaton FEPB47B-32 EP globe and guard - IP66, Brass Guard
Part Number: FEPB47B-32
Quick Summary
Eaton Crouse-Hinds series Pauluhn EP globe and guard provides rugged lighting for hazardous locations in industrial facilities. Maintenance downtime and frequent globe failures from fragile glass can stall production and drive costs. This fixture carries NEC/CEC standards, IP66 ingress protection, and a NEMA 4X rating, offering reliable performance in Class I, Division 1/2 environments. Combined with a wall-mount brass guard and tempered glass globe, the 32W CF lamp delivers efficient illumination with long service life, supporting safer operations and lower total cost of ownership.
Product Information
Extended Description
FEPB47B-32 Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Clear tempered glass globe, With cast brass guard, Compact fluorescent, Brass, CF max. lamp size, Wall mount, 120 Vac, 32W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
FEPB47B-32
UPC
662276394162
Product Length/Depth
9.38 in
Product Height
12.25 in
Product Width
5.75 in
Product Weight
29 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Wall
Wattage
32W
Lamp type
Compact fluorescent
Lamp size - max
CF
Base type
Medium
Guard type
With cast guard
Voltage rating
120 Vac
Frequency rating
50/60 Hz
Globe color
Clear
Globe material
Tempered glass
Guard material
Brass
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1414 - EP Fluorescent - Wall Mount
Eaton Specification Sheet - FEPB47B-32
Wall mounting with brass guard provides robust protection and simplifies installation, reducing the risk of accidental damage during maintenance while improving operator safety in busy plant corridors. This design translates to measurable uptime gains and lower repair costs in demanding environments. IP66 and NEMA 4X protections shield the luminaire from dust, water jets, and corrosion, delivering reliable service in hazardous locations such as chemical plants and mining sites with minimal protective enclosures. The tempered glass globe maintains clear visibility and resilience against impact, supporting consistent process monitoring and reducing the need for frequent globe replacements. A 32W compact fluorescent lamp offers energy efficiency and longer operating life, lowering energy bills and maintenance cycles while delivering ample illumination for critical tasks. Compatibility with standard 120 V supply and 50/60 Hz operation enables easy retrofits and straightforward commissioning across facilities. Compliance with NEC/CEC requirements helps you meet regulatory obligations and simplify audits while supporting safe operations in Class I, Division 1/2 zones.
Get a Quick Quote for a Eaton FEPB47B-32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FEPB47B-32?
Enquire Now
FAQs
The FEPB47B-32 is designed for hazardous and classified locations, including Class I, Division 1 and Division 2 environments, with IP66 ingress protection and a NEMA 4X rating. It is a wall-mounted luminaire that uses a 32W compact fluorescent lamp and is suitable for chemical plants, refineries, and other demanding industrial settings where robust protection and reliable illumination are essential.
Mount the unit on a suitable wall surface using standard electrical boxes and hardware compatible with its wall-mount design. Connect to a 120 Vac supply, ensuring proper insulation and grounding. Refer to the installation sheet LBL1414 for epfluorescent wall-mount guidance, and verify that the mounting location complies with NEC/CEC requirements for hazardous locations.
Yes, the EP globe and guard meets IP66 and NEMA 4X protections, meaning it is dust-tight and protected against powerful water jets, as well as corrosion-resistant in harsh environments. In practice, this reduces maintenance frequency, allows washing or high-pressure cleaning around the luminaire, and supports long-term operation in chemical, mining, or offshore facilities.
The brass guard offers durable, impact-resistant protection around the globe, while the tempered glass globe resists shattering and maintains clear illumination over time. Together, they minimize unscheduled replacements, lower maintenance costs, and maintain consistent light output in challenging process areas where vibrations and impact are common.
The FEPB47B-32 is specified for a 32W compact fluorescent lamp with a medium base. It is designed to maximize efficiency for 32W CF lamps while meeting 50/60 Hz and 120 Vac supply. For different lighting needs, verify compatibility with Eaton’s Pauluhn EP-line catalog pages and installation guidance to confirm suitable alternatives or lamp replacements within the same enclosure and rating.
