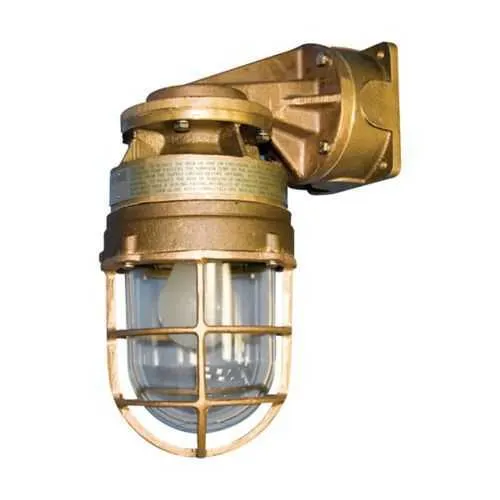

Eaton FEPC31B-26 EP Globe and Guard - IP66 Rated
Part Number: FEPC31B-26
Quick Summary
The FEPC31B-26 is an Eaton EP globe and guard for hazardous-area lighting in industrial facilities. Maintenance in hazardous locations is time-consuming and risky when fixtures aren’t rugged or easy to service. It meets Hazardous/Classified Locations, NEC/CEC standards, and carries NEMA 4X and IP66 protection for reliable operation in washdown and dusty environments. This ceiling-mounted luminaire uses a brass guard and tempered glass globe with a compact fluorescent lamp, delivering energy efficiency and long service intervals, which translates to lower maintenance costs and less downtime for critical processes. This combination supports compliance-driven procurement and safer plant operations.
Product Information
Extended Description
FEPC31B-26 Eaton: Eaton Crouse-Hinds series Pauluhn EP globe and guard, Medium base, 50/60 Hz, Clear tempered glass globe, With cast brass guard, Compact fluorescent, Brass, CF max. lamp size, Ceiling mount, 120 Vac, 26W
Product Name
Eaton Crouse-Hinds series Pauluhn EP globe and guard
Catalog Number
FEPC31B-26
UPC
662276496903
Product Length/Depth
6.25 in
Product Height
12.5 in
Product Width
6.25 in
Product Weight
22 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Ceiling
Wattage
1 x 30W
Lamp type
Compact fluorescent
Lamp size - max
CF
Base type
Medium
Guard type
With cast guard
Voltage rating
120 Vac
Frequency rating
50/60 Hz
Globe color
Clear
Globe material
Tempered glass
Guard material
Brass
Crouse-Hinds series Pauluhn EP Fluorescent catalog page
IF LBL1415 - EP Fluorescent - Ceiling Mount
Eaton Specification Sheet - FEPC31B-26
Feature: Brass guard with cast guard protection and tempered glass globe. Business Impact: Enhanced physical protection against impacts in demanding environments, reducing repair and replacement costs. Application: Ideal for ceiling-mounted fixtures in chemical plants and refineries where washdown and dust are common. Feature: Compact fluorescent lamp, 1 x 30W, 50/60 Hz, 120 Vac. Business Impact: Energy-efficient illumination with longer life, lowering energy bills and maintenance cycles. Application: Suitable for standard plant electrical systems and retrofit projects where downtime must be minimized. Feature: IP66 and NEMA 4X enclosure protection. Business Impact: Superior ingress protection against water, dust, and corrosive media, ensuring consistent performance in harsh locations. Application: Outdoor-rated or washdown environments including oil & gas, petrochemical, and food & beverage plants. Feature: Brass guard and glass globe construction. Business Impact: Corrosion resistance and durable light enclosure support long service life in aggressive atmospheres. Application: Harsh chemical processes, coastal facilities, and high-splash areas. Feature: Hazardous/Classified Locations area classification and NEC/CEC compliance. Business Impact: Regulated installation reduces risk of non-compliance penalties and improves safety audits. Application: Critical process areas in refineries, chemical plants, and manufacturing floors. Feature: Ceiling mounting with standard 120 Vac power. Business Impact: Easy integration into existing facility layouts with minimal structural changes. Application: Retrofit and new-build projects where ceiling-luminance is preferred for workspace illumination.
Get a Quick Quote for a Eaton FEPC31B-26
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FEPC31B-26?
Enquire Now
FAQs
FEPC31B-26 operates on 120 Vac with a 50/60 Hz frequency, using a medium base for easy lamp changes. Its ceiling-mount design simplifies installation in existing facilities, and the 30W CFL provides efficient lighting for typical workshop and process areas. This combination supports straightforward integration with common panel schedules and wiring practices.
This fixture carries Hazardous/Classified Locations area classification with NEC/CEC standards, Class I, Division 1 and Division 2 ratings, NEMA 4X enclosure protection, and IP66 ingress protection. These certifications verify safe operation in explosive atmospheres and washdown-ready settings, helping you meet regulatory and safety requirements.
Yes. With IP66 and NEMA 4X protection, along with a brass guard and tempered glass globe, the luminaire resists water, dust, and corrosive exposure. It maintains lumen output and reliability in harsh washdown zones commonly found in chemical plants, refineries, and food processing facilities.
Plan for ceiling mounting in suitable process or utility spaces. The brass guard and tempered glass globe require careful handling during mounting and lamp changes. Refer to the included installation sheets (IF LBL1415) for fluorescent ceiling-mount guidance and ensure compliance with NEC/CEC wiring practices for 120 Vac supplies.
The combination of a 30W compact fluorescent lamp, long service life, and rugged enclosure lowers energy usage and maintenance frequency. IP66/NEMA 4X protection minimizes downtime in harsh environments, improving process uptime and safety compliance, which translates into reduced total cost of ownership over the fixture’s life cycle.
