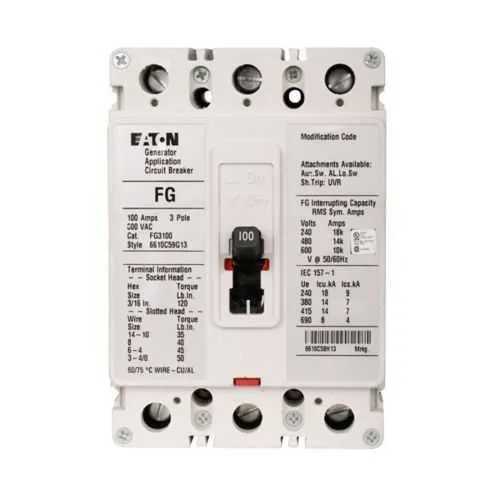

Eaton FG3025 Engine Generator MCB - 18 kAIC at 600 Vac
Part Number: FG3025
Quick Summary
The Eaton FG3025 Engine Generator MCB protects engine-generator circuits with fixed thermal and magnetic trips. In engine-driven power systems, downtime is costly, so reliable interruption and coordination matter. This unit carries IEC 947-2 ratings, UL Listed, and CSA Certified, supporting global compliance. Designed for engine-generator protection, it integrates with line/load terminals and a compact FG frame. For buyers, this yields faster installation, regulatory peace of mind, and a clear path to reducing downtime. The unit supports 60 Hz operation and is rated for 25 A at 600 Vac with 18 kAIC at 240 Vac.
Product Information
Extended Description
FG3025 Eaton: Eaton Series C complete EG molded case circuit breaker, F-frame, FG, Fixed thermal and magnetic trips, Three-pole, 25A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, Engine generator, Reverse, 60 Hz, Fixed
Product Name
Eaton complete engine generator molded case circuit breaker
Catalog Number
FG3025
UPC
786679269541
Product Length/Depth
7 in
Product Height
6 in
Product Width
5 in
Product Weight
4 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEC 947-2 IEC Rated UL Listed CSA Std. C22.2 No. 5 CSA Certified UL 489
Amperage Rating
25 A
Voltage rating
600 Vac
Trip Type
T186
Circuit breaker type
FG
Circuit breaker frame type
Complete breaker
Terminals
Line and load
Frame
F
Frequency rating
60 Hz
Class
Engine generator
Pickup
Fixed
Interrupt rating
18 kAIC at 240 Vac 14 kAIC at 480 Vac
Generator rating
9 kVA/7 kW at 240 Vac, 18 kVA/14 kW at 480 Vac, 23 kVA/18 kW at 600 Vac
Number of poles
Three-pole
Functions
Reverse
Engine generator circuit breakers catalog
Circuit Breakers Explained
Eaton Specification Sheet - FG3025
Feature – Amperage rating and form factor: The FG3025 is a three-pole unit rated 25 A with a 600 Vac supply, mounted in Eaton's F-frame complete breaker. This compact design (7 in L, 5 in W, 6 in H and 4 lb) fits engine compartments and control panels without compromising performance. Business impact – predictable protection for smaller engine-generator loads, simplified wiring, and reduced panel footprint. Application – engine-generator sets that run at 60 Hz with tight mounting constraints. Feature – Fixed trips and interrupt ratings: It uses fixed thermal and magnetic trips (T186) with 18 kAIC at 240 Vac and 14 kAIC at 480 Vac, enabling fast interruption for short circuits. Business impact – minimizes arc-flash exposure, maintains generator protection coordination, reduces downstream damage and downtime. Application – critical engine-generator protection where quick fault clearance matters. Feature – Generator coverage and output flexibility: Generator ratings of 9 kVA/7 kW at 240 Vac, 18 kVA/14 kW at 480 Vac, and 23 kVA/18 kW at 600 Vac. Business impact – supports multiple generator outputs with a single protective device, reducing inventory and simplifying procurement. Application – varying engine-generator configurations across 240, 480, and 600 Vac systems. Feature – Certifications and compliance: IEC 947-2 ratings, UL Listed, CSA Certified, and UL 489 compliance. Business impact – regulatory assurance across regions, simplified supplier qualification, and lower procurement risk. Application – global deployments in industrial, transport, and utility environments. Feature – Physical characteristics and warranty: Dimensions 7 x 5 x 6 in and weight 4 lb; warranty per Eaton policy 25-000 (one year from installation or 18 months from shipment). Business impact – easier panel integration, predictable maintenance planning, and reliable support resources. Application – control panels, engine compartments, and field installations requiring compact protection.
