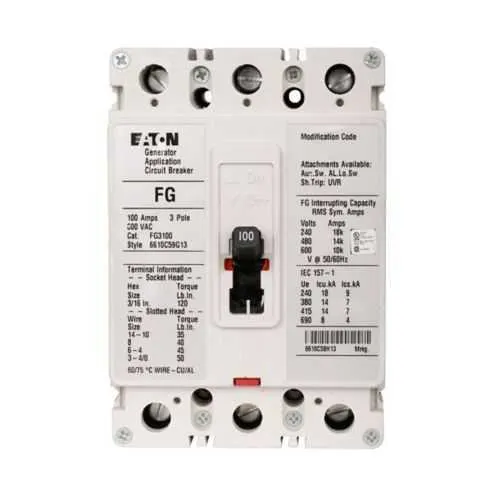

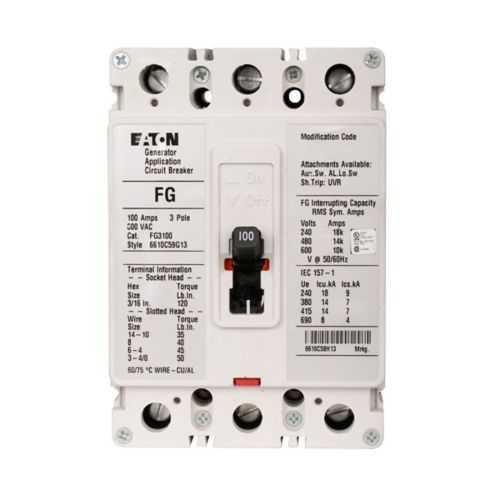

Eaton FG3045WD05Z04 Engine Generator MCCB - UL 489
Part Number: FG3045WD05Z04
Quick Summary
Eaton FG3045WD05Z04 Engine Generator MCCB protects generator-driven power systems in industrial facilities. Nuisance trips and compliance gaps can drive downtime and maintenance costs; this unit is designed to minimize both through fixed thermal and magnetic trips, a three-pole FG frame, and ready line side end cap compatibility for straightforward installation. Certifications include UL 489, CSA Std. C22.2 No. 5, and IEC 947-2, signaling global compliance for diverse panels and control rooms. Built for 60 Hz, 600 Vac systems with metric mounting, it supports generator protection while enabling efficient procurement, predictable outage behavior, and easy serviceability across mission-critical applications.
Product Information
Extended Description
FG3045WD05Z04 Eaton: Eaton Series C complete EG molded case circuit breaker, F-frame, FG, Fixed thermal and magnetic trips, Three-pole, 45A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line side end cap, optional load side, Metric, Reverse, 60 Hz, KPR1AM
Product Name
Eaton complete engine generator molded case circuit breaker
Catalog Number
FG3045WD05Z04
UPC
786685465340
Product Length/Depth
7 in
Product Height
6 in
Product Width
5 in
Product Weight
4 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 489 IEC 947-2 CSA Std. C22.2 No. 5
Amperage Rating
45 A
Voltage rating
600 Vac
Trip Type
T186
Circuit breaker type
FG
Circuit breaker frame type
Complete breaker
Terminals
Line side end cap, optional load side
Frame
F
Frequency rating
60 Hz
Class
Engine generator
Line
KPR1AM
Mounting hardware
Metric
Pickup
Fixed
Prod load
3T100FB
Interrupt rating
14 kAIC at 480 Vac 18 kAIC at 240 Vac
Generator rating
16 kVA/13 kW at 240 Vac, 32 kVA/29 kW at 480 Vac, 41 kVA/32 kW at 600 Vac
Number of poles
Three-pole
Functions
Reverse
Engine generator circuit breakers catalog
Circuit Breakers Explained
Eaton Specification Sheet - FG3045WD05Z04
Implementation of arc flash mitigating solutions at industrial manufacturing facilities
Feature: Fixed thermal and magnetic trips provide dependable protection. Business Impact: Reduces nuisance trips and protects critical loads, improving uptime. Application: Ideal for engine-generator sets in manufacturing and data-center environments. Feature: 45 A amperage rating with 600 Vac capacity. Business Impact: Suitable for common generator set configurations, simplifying panel design and wire sizing. Application: Three-pole FG frame breakers in power distribution panels. Feature: High interrupt ratings—18 kAIC at 240 Vac and 14 kAIC at 480 Vac. Business Impact: Withstands peak fault currents, improving safety margins and system reliability. Application: Generators connected to diverse load profiles. Feature: Line side end cap, optional load side, and metric mounting. Business Impact: Streamlines installation and retrofit projects with compatible hardware and international mounting standards. Application: Field upgrades and new installations across global facilities. Feature: Certifications UL 489, CSA, IEC 947-2. Business Impact: Ensures global compliance and smoother procurement across regions, reducing hold-ups in audits. Application: Government, utilities, and multinational plant environments. Feature: 60 Hz operation and listed generator ratings (16 kVA/13 kW at 240 Vac; 32 kVA/29 kW at 480 Vac; 41 kVA/32 kW at 600 Vac). Business Impact: Aligns with standard generator outputs for consistent protection and predictable performance. Application: Engine-generator protection in mixed-voltage facilities.
Get a Quick Quote for a Eaton FG3045WD05Z04
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FG3045WD05Z04?
Enquire Now
FAQs
For engine-generator protection, ensure a three-pole FG frame fits the panel footprint and that metric mounting hardware is used. Utilize the line side end cap (with optional load side) to simplify wiring, and confirm 60 Hz operation at 600 Vac to match the generator specifications. This setup supports straightforward retrofits and quick fault isolation.
The device provides 45 A at 600 Vac with fixed thermal and magnetic trips (T186). Its interrupt ratings are 18 kAIC at 240 Vac and 14 kAIC at 480 Vac, enabling robust protection for generator-driven loads. Generator ratings include 16 kVA/13 kW at 240 Vac, 32 kVA/29 kW at 480 Vac, and 41 kVA/32 kW at 600 Vac.
Yes, this is a three-pole FG-frame molded case circuit breaker designed for engine-generator protection. It uses metric mounting, line side end caps, and an optional load side, aligning with generator control panels. The device coordinates well with standard 60 Hz generator configurations and supports dependable on-site protection in generator rooms and power plants.
The FG3045WD05Z04 is UL 489, CSA Std. C22.2 No. 5, and IEC 947-2 certified. These approvals ensure compatibility with North American and international electrical protection standards, simplify auditing, and support compliant procurement for industrial facilities operating under diverse regulatory regimes.
By reducing nuisance trips and improving fault-coordination, the FG3045WD05Z04 lowers unplanned downtime and maintenance costs. The 1-year warranty (or 18 months from shipment per Eaton policy) provides initial protection, while robust ratings and easy replaceability streamline service intervals and long-term operational efficiency.
