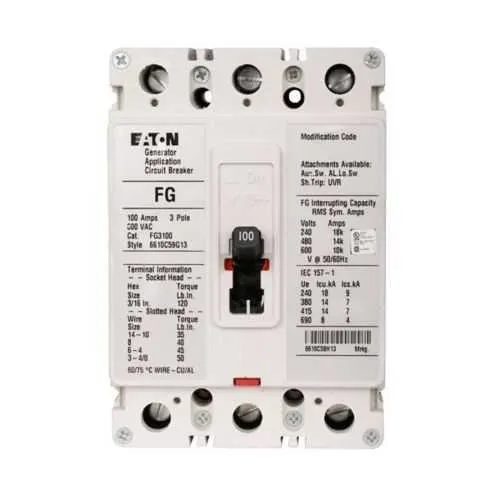

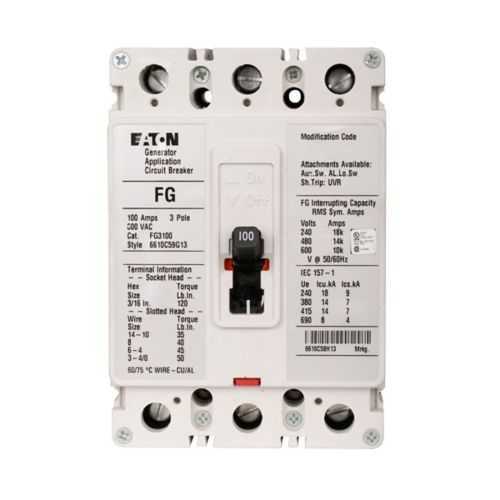

Eaton FG3060 Engine Generator MCB - UL 489 Listed
Part Number: FG3060
Quick Summary
Eaton FG3060 Engine Generator MCB protects engine-driven electrical systems by delivering reliable short-circuit and overload protection. Engine downtime and nuisance trips are common pain points in generator sets, and fixed thermal and magnetic trips help reduce unexpected outages and simplify maintenance. Certified for CSA, UL 489 Listed, and IEC rated standards, this device supports broad regional compliance for industrial, commercial, and data-center generator installations. Designed for 60 Hz operation across 240–600 Vac, it uses a three-pole FG frame with line/load terminals, facilitating straightforward installation. Its compact form factor and Eaton warranty support easier procurement and long-term service for OEMs and service teams.
Product Information
Extended Description
FG3060 Eaton: Eaton Series C complete EG molded case circuit breaker, F-frame, FG, Fixed thermal and magnetic trips, Three-pole, 60A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, Engine generator, Reverse, 60 Hz, Fixed
Product Name
Eaton complete engine generator molded case circuit breaker
Catalog Number
FG3060
UPC
786679269664
Product Length/Depth
7 in
Product Height
6 in
Product Width
5 in
Product Weight
4 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified CSA Std. C22.2 No. 5 UL 489 UL Listed IEC 947-2 IEC Rated
Amperage Rating
60 A
Voltage rating
600 Vac
Trip Type
T186
Circuit breaker type
FG
Circuit breaker frame type
Complete breaker
Terminals
Line and load
Frame
F
Frequency rating
60 Hz
Class
Engine generator
Pickup
Fixed
Interrupt rating
18 kAIC at 240 Vac 14 kAIC at 480 Vac
Generator rating
22 kVA/17 kW at 240 Vac, 43 kVA/35 kW at 480 Vac, 54 kVA/43 kW at 600 Vac
Number of poles
Three-pole
Functions
Reverse
Engine generator circuit breakers catalog
Circuit Breakers Explained
Eaton Specification Sheet - FG3060
The FG3060 delivers 60 A at 600 Vac with fixed pickup and a T186 trip, which translates into precise fault interruption and reduced thermal stress on downstream equipment. In practical terms, this means shorter fault-clearing times, lower energy exposure during faults, and improved uptime for engine-generator sets that must meet strict availability targets. The three-pole configuration and line/load terminals enable clean, plug-and-play integration into standard generator cabinets, helping installers meet tight project schedules while maintaining compliance with cataloged wiring practices. With an 18 kAIC interrupt rating at 240 Vac and 14 kAIC at 480 Vac, it provides robust protection for both standby and prime-power applications, minimizing arc energy in fault events. The 22 kVA/17 kW rating at 240 Vac and up to 54 kVA/43 kW at 600 Vac covers a wide range of generator sizes, supporting scalable system design. The FG frame and fixed pickup support reliable operation under frequent switching, while the reverse function accommodates specific engine-generator configurations. This combination reduces total-cost-of-ownership by simplifying stocking, installation, and maintenance planning across multiple sites.
Get a Quick Quote for a Eaton FG3060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FG3060?
Enquire Now
FAQs
For FG3060 installations, use the line/load terminals as specified and mount the unit within a suitable enclosure to accommodate its 7 in length, 6 in height, and 5 in width footprint. The three-pole configuration supports standard 60 Hz generator wiring, and fixed pickup simplifies wiring checks during commissioning. Ensure compatibility with your generator frame (F) and verify the ratings align with your system voltage (240–600 Vac). Regularly inspect the thermal-magnetic trip function during preventive maintenance to confirm reliable fault clearing.
FG3060 is a 60 A, 600 Vac molded case circuit breaker with a three-pole FG frame and fixed pickup. It provides 18 kAIC at 240 Vac and 14 kAIC at 480 Vac, with a generator rating of 22 kVA/17 kW at 240 Vac, 43 kVA/35 kW at 480 Vac, and 54 kVA/43 kW at 600 Vac. It supports 60 Hz operation and line/load terminals for straightforward integration into engine-generator installations.
Yes. FG3060 is specifically designed for engine-generator sets operating at 60 Hz, with a 60 Hz frequency rating and a three-pole configuration suitable for engine-driven power systems up to 600 Vac. Its fixed pickup and highly specified interrupt ratings make it ideal for protecting generator outputs while minimizing nuisance trips in standby or prime-power configurations.
FG3060 carries CSA Certified, UL 489 Listed/UL Listed, and IEC rated certifications. These approvals ensure compliance for North American and international generator installations, aiding regulatory adherence and simplifying procurement across diverse project requirements.
The FG3060 is covered by Eaton’s warranty policy: one year from the date of installation or eighteen months from shipment, whichever occurs first. Its fixed-trip design reduces calibration needs and maintenance intervals, contributing to lower lifecycle costs and predictable service planning for engine-generator protective devices.
