Eaton FG3090 Engine Generator MCCB - UL Listed
Part Number: FG3090
Quick Summary
The FG3090 Engine Generator MCCB from Eaton provides robust protection for engine-driven power systems up to 600 V. Engineers often struggle to select a molded case circuit breaker that can handle reverse power flow, fixed trips, and generator start/stop sequences without compromising reliability. This model carries UL Listed, CSA Certified, and IEC Rated certifications, ensuring compliance across North American and international standards. With a tight line/load configuration and a fixed trip, it delivers dependable protection while enabling straightforward installation in engine generator assemblies. Leverage this solution to enhance safety, reduce downtime, and streamline procurement within industrial power generation applications.
Product Information
Extended Description

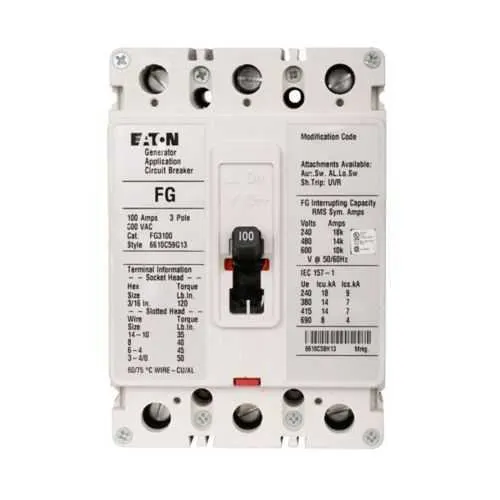

FG3090 Eaton: Eaton Series C complete EG molded case circuit breaker, F-frame, FG, Fixed thermal and magnetic trips, Three-pole, 90A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, Engine generator, Reverse, 60 Hz, Fixed
Product Name
Eaton complete engine generator molded case circuit breaker
Catalog Number
FG3090
UPC
786679269725
Product Length/Depth
7 in
Product Height
6 in
Product Width
5 in
Product Weight
4 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Std. C22.2 No. 5 IEC 947-2 UL Listed CSA Certified IEC Rated UL 489
Amperage Rating
90 A
Voltage rating
600 Vac
Trip Type
T186
Circuit breaker type
FG
Circuit breaker frame type
Complete breaker
Terminals
Line and load
Frame
F
Frequency rating
60 Hz
Class
Engine generator
Pickup
Fixed
Interrupt rating
18 kAIC at 240 Vac 14 kAIC at 480 Vac
Generator rating
32 kVA/26 kW at 240 Vac, 65 kVA/52 kW at 480 Vac, 81 kVA/65 kW at 600 Vac
Number of poles
Three-pole
Functions
Reverse
Engine generator circuit breakers catalog
Circuit Breakers Explained
Eaton Specification Sheet - FG3090
Selling Policy 25-000 - Distribution and Control Products and Services
