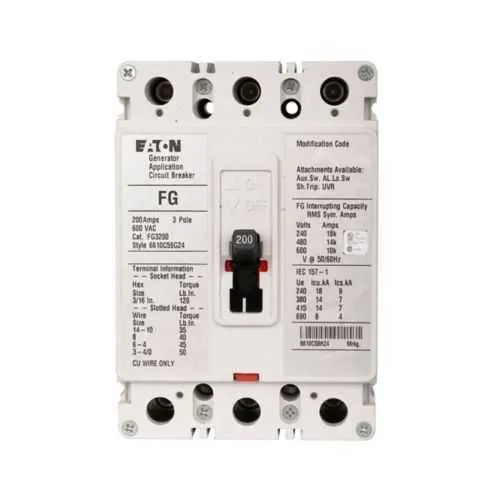

Eaton FG3200 Engine Generator MCB - IEC Rated UL Listed

Three-pole FG frame with fixed thermal and magnetic trips provides precise fault isolation. This reduces nuisance trips and minimizes unplanned downtime for engine-generator systems in demanding facilities. It’s ideal for 60 Hz genset protection in new builds or retrofit projects. 200 A amperage and 600 Vac rating align with common generator outputs, enabling straightforward integration with standard engine sets. Short-circuit capacity of 18 kAIC at 240 Vac and 14 kAIC at 480 Vac ensures reliable interruption under fault conditions. This combination supports compliant, fast clearances during start-up surges and peak loads. Line and load terminals are included, simplifying installation and reducing component counting in the field. Fixed pickup delivers predictable operating characteristics, easing commissioning and troubleshooting. As a complete FG frame assembly, it’s compatible with Eaton's engine-generator protection ecosystem. Compliance with MIL-DTL-17361, IEC Rated, UL Listed, and CSA Certified markings minimizes regulatory risk across markets. The broad certification footprint helps OEMs meet multi-region procurement and warranty requirements. It also supports documentation for quality audits and customer approvals. Compact footprint—7.7 in length, 4.9 in height, 4.9 in width—and a 4.5 lb weight make it practical for tight enclosures and retrofit spaces. The catalog note confirms both line and load terminals are included, reducing install time. This translates to faster project timelines and lower field labor costs. Warranty covers one year from installation or 18 months from shipment, whichever comes first, adding business protection during equipment turnover and maintenance cycles.
