Eaton FIG 1000 1 1/2X1 FASTC PLN - UL Listed OSHPD Certified
Part Number: FIG 1000 1 1/2X1 FASTC PLN
Quick Summary
Eaton B-Line series TOLCO lateral sway brace attachment FIG 1000 1 1/2X1 FASTC PLN provides a seismic brace connection for 1.5 inch pipe systems with a 1.25 inch brace pipe. This configuration targets fast, predictable bracing during construction and retrofit, reducing field time while maintaining a strong load path. Engineers often contend with bracing that is difficult to install or inspect, leading to schedule delays and noncompliant assemblies. UL Listed and OSHPD Certified offer regulatory confidence for healthcare facilities, data centers, and industrial rooms. With a plain steel finish and a fast clamp design, it integrates cleanly with Eaton B-Line components, supporting consistent performance, ease of maintenance, and scalable solutions across projects.
Product Information
Extended Description

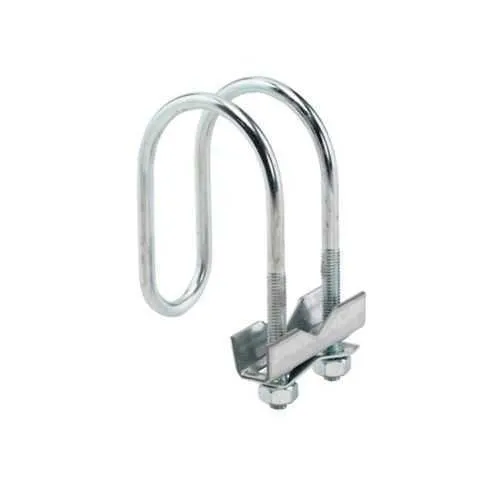

FIG 1000 1 1/2X1 FASTC PLN Eaton: Eaton B-Line series TOLCO lateral sway brace attachment, Plain, Steel, Fig 1000, 1.5" pipe size with 1.25" brace pipe, Fast clamp sway brace attachment
Product Name
Eaton B-Line series TOLCO lateral sway brace attachment
Catalog Number
FIG 1000 1 1/2X1 FASTC PLN
UPC
782051720587
Product Length/Depth
0 in
Product Height
1 in
Product Width
0 in
Product Diameter
1.5 in
Product Weight
7.4 lb
Certifications
UL Listed OSHPD Certified
Finish
Plain
Material
Steel
Size
1.5 inch pipe size with 1.25 inch brace pipe
Model
Fig 1000
Type
Fast clamp sway brace attachment
Seismic engineering services
Seismic engineering services
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Eaton Specification Sheet - FIG 1000 1 1/2X1 FASTC PLN
Fast clamp sway brace attachment is engineered to secure the brace with simple, tool-free operation, delivering faster installation times and reduced field labor. The business impact is lower project costs and improved site productivity, especially in seismic zones where timing matters. In practice, the FIG 1000 fast clamp is ideal for industrial facilities where overhead bracing must be deployed quickly without compromising alignment or performance. Compatibility with 1.5 inch pipe size and 1.25 inch brace pipe standardizes components, reduces procurement complexity, and minimizes stock variety, helping contractors streamline ordering and field assembly. Certifications such as UL Listed and OSHPD Certified ensure compliance in medical and high-occupancy environments, while the plain steel finish keeps upfront costs competitive and compatible with field coatings. The model’s design leverages Eaton B-Line ecosystems for predictable fit and scalable retrofits across multiple project types. Installation guidance from Eaton further mitigates common objections about fitment and torque requirements, enabling a smoother project flow.
Get a Quick Quote for a Eaton FIG 1000 1 1/2X1 FASTC PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 1000 1 1/2X1 FASTC PLN?
Enquire Now
FAQs
FIG 1000 is designed for a 1.5 inch pipe size with a 1.25 inch brace pipe. It is compatible with Eaton B-Line TOLCO systems and uses a fast clamp mechanism to simplify field assembly. When planning a retrofit, verify clearance around the brace path and ensure the related structural connections can accommodate the 7.4 lb weight for safe handling during installation.
Key specs include a product diameter of 1.5 inches, height of 1 inch, and weight of 7.4 pounds. Finish is plain steel, with 1.5 in pipe size and 1.25 in brace pipe compatibility. Certifications include UL Listed and OSHPD Certified, ensuring seismic performance and regulatory compliance in critical facilities.
Yes. The FIG 1000 sway brace attachment is designed for seismic bracing in MEP systems and carries UL Listed and OSHPD Certified ratings. Its compatibility with standard 1.5 in pipe and 1.25 in brace pipe supports reliable brace path integrity in high-demand environments such as hospitals and data centers.
Key certifications are UL Listed and OSHPD Certified. These indicate compliance with electrical and seismic requirements for a wide range of facilities, including healthcare, education, and industrial environments. Always cross-check project-specific codes and ensure the product is used within its listed scope and supported by the manufacturer’s installation guidelines.
The fast clamp design reduces installation time and field labor, contributing to lower total installed cost and schedule compression on seismic bracing projects. Its compatibility with existing Eaton B-Line components minimizes custom fabrication, while UL OSHPD certifications provide ongoing assurance of regulatory compliance, reducing risk during inspections and future retrofits.
