Eaton FIG 1000 1X1 1/4 FASTC PLN Sway brace - OSHPD UL
Part Number: FIG 1000 1X1 1/4 FASTC PLN
Quick Summary
FIG 1000 sway brace attachment stabilizes electrical racks by providing lateral restraint for reliable mechanical support in data centers, control rooms, and industrial facilities. In seismic zones, sway and misalignment can drive installation risk, escalate project timelines, and raise maintenance costs. The unit carries OSHPD certification and UL listing, helping ensure code-compliant seismic bracing and electrical enclosures in accordance with industry standards. Designed for Eaton B-Line Tolco framing, this plain steel bracket blends rugged durability with straightforward installability, reducing field labor and rework. Its compact footprint, compatibility with 1 inch pipe size and 1.25 inch brace pipe, and proven steel construction support versatile mounting scenarios, delivering safer layouts, longer service life, and lower total cost of ownership across projects.
Product Information
Extended Description

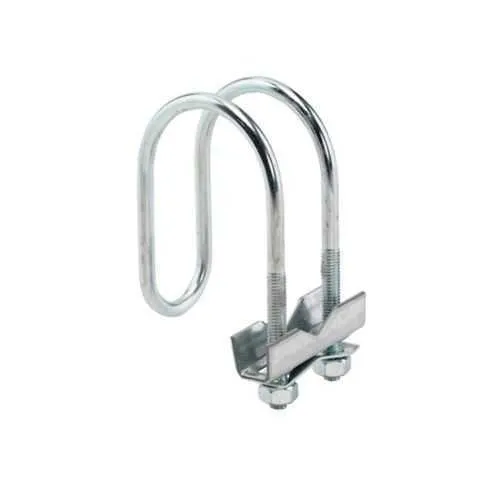

FIG 1000 1X1 1/4 FASTC PLN Eaton: Eaton B-Line series TOLCO lateral sway brace attachment, Plain, Steel, Fig 1000, 1" pipe size with 1.25" brace pipe, Fast clamp sway brace attachment
Product Name
Eaton B-Line series TOLCO lateral sway brace attachment
Catalog Number
FIG 1000 1X1 1/4 FASTC PLN
UPC
782051720860
Product Length/Depth
0 in
Product Height
1.25 in
Product Width
0 in
Product Diameter
1 in
Product Weight
7.6 lb
Certifications
OSHPD Certified UL Listed
Finish
Plain
Material
Steel
Size
1 inch pipe size with 1.25 inch brace pipe
Model
Fig 1000
Type
Fast clamp sway brace attachment
Seismic engineering services
Seismic engineering services
Seismic engineering guidelines
Seismic engineering guidelines
Eaton Specification Sheet - FIG 1000 1X1 1/4 FASTC PLN
Fast clamp sway brace attachment speeds installation and reduces field labor. By eliminating time-consuming hardware and complex alignment, installers can complete bracing tasks in a fraction of the traditional timeframe, translating to faster project turnover and lower on-site costs. This product is specifically designed for Tolco framing and 1 inch pipe runs, enabling seamless integration with Eaton B-Line systems and minimizing retrofit headaches in crowded electrical rooms. The 1 inch pipe with 1.25 inch brace pipe configuration supports standardized installations, reducing the need for adapters while improving consistency across multiple racks and zones. OSHPD Certified and UL Listed certifications provide regulatory assurance, accelerating approvals and inspections while meeting seismic and electrical safety requirements. The plain steel finish offers durability at a competitive cost, ideal for data centers, manufacturing floors, and commercial facilities. Its compact height and modest weight simplify handling during install, inspection, and future modifications, contributing to safer crews and faster upgrades. Overall, this sway brace attachment delivers measurable efficiency gains, improved compliance, and a longer service life when paired with Tolco framing.
Get a Quick Quote for a Eaton FIG 1000 1X1 1/4 FASTC PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 1000 1X1 1/4 FASTC PLN?
Enquire Now
FAQs
FIG 1000 is designed for Eaton B-Line Tolco framing and accommodates 1 inch pipe runs with a 1.25 inch brace pipe. It is ideal for mechanical, electrical, and plumbing bracing in data centers, control rooms, and industrial facilities, delivering rapid installation with a standardized, reliable mounting approach.
The FIG 1000 sway brace attachment is OSHPD Certified and UL Listed, signaling compliance with seismic bracing requirements and electrical enclosure safety standards. These certifications reduce inspection risk, streamline approvals, and provide verifiable performance data for critical facilities such as data centers and hospitals.
The fast clamp mechanism enables tool-free or minimal-tool installation, aligning quickly with the 1 in pipe and 1.25 in brace pipe configuration. This design reduces field labor hours, minimizes on-site disturbances, and supports rapid retrofits or new builds without compromising mounting rigidity or seismic performance.
The assembly uses a 1 inch pipe size with a 1.25 inch brace pipe and has a height of 1.25 inches, a diameter of 1 inch, and a weight of 7.6 pounds. The plain finish steel construction balances durability with manageable handling during installation and maintenance.
Yes. Engineered for Tolco seismic bracing within Eaton B-Line framing, FIG 1000 meets industry seismic guidelines and is OSHPD Certified UL Listed. It provides reliable lateral restraint for racks, improves installation consistency, and reduces risk during seismic events, making it well-suited for data centers, server rooms, and commercial spaces.
