Eaton FIG 1000 2 1/2X1 1/4FASTC EG - OSHPD Certified
Part Number: FIG 1000 2 1/2X1 1/4FASTC EG
Quick Summary
The Eaton B-Line series TOLCO lateral sway brace attachment provides secure, fast-clamp sway brace connections for 2.5 inch pipe systems used in mechanical, electrical, and plumbing installations. Installers and procurement teams struggle with time-consuming field assembly and misfit hardware, which this unit mitigates with a one-piece electro-galvanized steel design. The product is OSHPD Certified and aligns with seismic bracing standards, ensuring compliance for critical facilities. With 2.5 inch pipe size and 1.25 inch brace pipe compatibility, it fits standard Tolco seismic bracing layouts and reduces field adjustments. This combination of robust steel, electro-plated finish, and fast clamp attachment delivers reliable performance and lower lifecycle costs.
Product Information
Extended Description

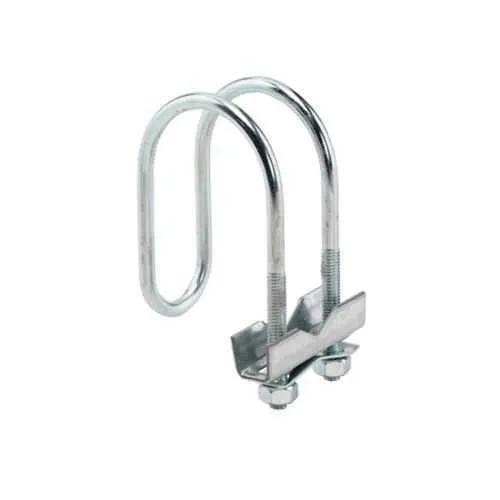

FIG 1000 2 1/2X1 1/4FASTC EG Eaton: Eaton B-Line series TOLCO lateral sway brace attachment, Electro-galvanized, Steel, Fig 1000, 2.5" pipe size with 1.25" brace pipe, Fast clamp sway brace attachment
Product Name
Eaton B-Line series TOLCO lateral sway brace attachment
Catalog Number
FIG 1000 2 1/2X1 1/4FASTC EG
UPC
782051720945
Product Length/Depth
0 in
Product Height
1.25 in
Product Width
0 in
Product Diameter
2.5 in
Product Weight
9.4 lb
Certifications
OSHPD Certified
Finish
Electro-plated
Material
Steel
Size
2.5 inch pipe size with 1.25 inch brace pipe
Model
Fig 1000
Type
Fast clamp sway brace attachment
Seismic engineering services
Seismic engineering services
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Eaton Specification Sheet - FIG 1000 2 1/2X1 1/4FASTC EG
Feature → Business Impact → Application: The fast clamp sway brace attachment design accelerates installation by eliminating multiple hardware fittings, reducing field labor and scheduling conflicts on busy job sites. Outcome: faster project closeouts and lower labor costs, especially for high-rise or industrial facilities where seismic bracing is common. Application: use with Fig 1000 for rapid suspension of 2.5 inch pipe runs in mechanical or electrical rooms, including data centers and manufacturing floors. Feature → Business Impact → Application: Electro-galvanized steel provides corrosion resistance in humid or industrial environments, extending service life and reducing repainting or replacement cycles. Outcome: lower total cost of ownership and improved maintenance windows. Application: ideal for wash-down zones and outdoor installations where exposure to moisture is a concern. Feature → Business Impact → Application: 2.5 inch pipe size with 1.25 inch brace pipe compatibility standardizes installs across Tolco seismic layouts, improving design consistency. Outcome: easier procurement, fewer part mismatches, and faster commissioning. Application: supports integrated seismic bracing catalogs for mechanical, electrical, and plumbing systems. Feature → Business Impact → Application: OSHPD Certified construction compliance simplifies approvals for healthcare, data centers, and critical facilities. Outcome: reduced inspection time and risk mitigation for code compliance. Application: suitable for projects requiring seismic bracing with verified performance. Feature → Business Impact → Application: Fast clamp, one-piece design minimizes field adjustments and eliminates welding, improving installation tolerances. Outcome: tighter installation quality and fewer call-backs. Application: supports rapid retrofits and upgrades in retrofit projects where space is constrained.
Get a Quick Quote for a Eaton FIG 1000 2 1/2X1 1/4FASTC EG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 1000 2 1/2X1 1/4FASTC EG?
Enquire Now
FAQs
The FIG 1000 is designed for Tolco seismic bracing using a 2.5 inch pipe and a 1.25 inch brace pipe. It is compatible with Eaton B-Line/TOLCO sway brace systems and supports fast clamp attachment to simplify mounting in mechanical, electrical, and plumbing installations. This makes it an ideal choice for data centers, manufacturing floors, and utility rooms where seismic support is required.
Key specs include a 2.5 inch product diameter, 1.25 inch brace pipe compatibility, electro-galvanized steel construction, Fig 1000 model name, and a fast clamp sway brace attachment method. The unit weighs 9.4 lb and is OSHPD certified, reflecting suitability for seismic bracing in critical facilities.
Yes, the FIG 1000 sway brace attachment is OSHPD certified, aligning with seismic bracing standards for critical facilities. This certification supports code-compliant installations in healthcare, data centers, and other environments where seismic performance is essential.
The fast clamp design allows for quick, tool-light mounting without welding or bespoke fittings. The one-piece electro-galvanized steel construction simplifies hardware coordination, reduces field adjustments, and accelerates commissioning—benefiting projects with tight schedules and dense rack layouts.
