Eaton FIG 1000 2 1/2X1 FASTC EG - OSHPD Certified
Part Number: FIG 1000 2 1/2X1 FASTC EG
Quick Summary
Eaton FIG 1000 2 1/2X1 FASTC EG sway brace attachment is a robust lateral bracing solution for seismic-rated installations. Engineers often struggle with fast, compliant seismic bracing that fits tight spaces and reduces installation labor. It carries OSHPD Certified status and aligns with Eaton's seismic engineering guidelines to support regulatory compliance. Designed for 2.5 in pipe runs with a 1 in brace pipe, it streamlines field installs in data centers, control rooms, and industrial facilities. This product delivers reliable performance, easy handling (9.1 lb), and compatibility with the Eaton B-Line/TOLCO ecosystem for scalable, long-term protection.
Product Information
Extended Description

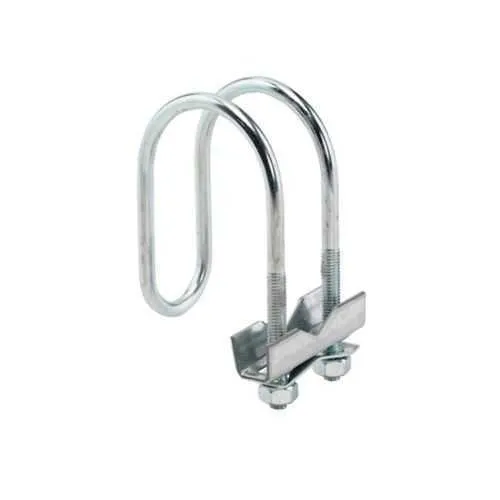

FIG 1000 2 1/2X1 FASTC EG Eaton: Eaton B-Line series TOLCO lateral sway brace attachment, Electro-galvanized, Steel, Fig 1000, 2.5" pipe size with 1" brace pipe, Fast clamp sway brace attachment
Product Name
Eaton B-Line series TOLCO lateral sway brace attachment
Catalog Number
FIG 1000 2 1/2X1 FASTC EG
UPC
782051720693
Product Length/Depth
0 in
Product Height
1 in
Product Width
0 in
Product Diameter
2.5 in
Product Weight
9.1 lb
Certifications
OSHPD Certified
Finish
Electro-plated
Material
Steel
Size
2.5 inch pipe size with 1 inch brace pipe
Model
Fig 1000
Type
Fast clamp sway brace attachment
Seismic engineering services
Seismic engineering services
Seismic engineering guidelines
Seismic engineering guidelines
Eaton Specification Sheet - FIG 1000 2 1/2X1 FASTC EG
Feature: Electro-galvanized steel with an electro-plated finish delivers corrosion resistance in demanding environments. Impact: Fewer replacement cycles and lower maintenance costs over the life of the seismic bracing system. Application: Ideal for data centers, industrial facilities, and outdoor installations that require dependable longevity. Feature: Fig 1000 compatibility with 2.5 inch pipe size and 1 inch brace pipe. Impact: Simplifies inventory and installation planning, reduces mismatch risk, and speeds project timelines. Application: Works with common 2.5 in conduits and supports near vertical and horizontal runs in switchgear rooms. Feature: Fast clamp sway brace mechanism. Impact: Accelerates installation by eliminating traditional threaded fastening steps, reducing field labor and commissioning time. Application: Particularly effective in tight spaces and retrofit projects in seismic zones. Feature: OSHPD Certified. Impact: Provides regulatory compliance for seismic performance in facilities requiring code-adherent bracing, such as healthcare and critical infrastructure. Application: Suitable for projects following seismic design criteria and inspection workflows. Feature: Lightweight yet robust design (9.1 lb). Impact: Improves handling on site without compromising strength, enabling quicker positioning and alignment. Application: Supports efficient field installations for 2.5 in pipe runs within Eaton B-Line/TOLCO systems. Feature: Comprehensive documentation and support. Impact: Access to engineering guidelines, catalogs, and datasheets streamlines procurement, validation, and installation planning. Application: Designers reference Seismic engineering guidelines and the FIG 1000 datasheet during specification and approval processes.
Get a Quick Quote for a Eaton FIG 1000 2 1/2X1 FASTC EG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 1000 2 1/2X1 FASTC EG?
Enquire Now
FAQs
The FIG 1000 2 1/2X1 FASTC EG is designed specifically for a 2.5 inch pipe size with a 1 inch brace pipe. It integrates into Eaton B-Line/TOLCO seismic bracing assemblies, using a fast clamp mechanism that simplifies alignment and reduces field fastening complexity while maintaining code-compliant performance.
This product carries OSHPD Certified status, supporting seismic performance verification in code-driven projects. It is complemented by Eaton's seismic engineering guidelines and datasheets to help engineers validate bracing design, installation details, and field modification workflows.
The fast clamp design eliminates many traditional threaded fasteners, enabling rapid, tool-light installation and straightforward adjustment. This reduces labor steps, shortens commissioning time, and minimizes on-site errors, which is particularly beneficial for retrofits and busy installations in data centers or switchgear rooms.
Yes. The FIG 1000 FASTC EG is designed for lateral seismic bracing on 2.5 in pipe runs and is OSHPD certified, making it well-suited for data center infrastructure, electrical rooms, and other critical facilities where seismic performance and reliability are required.
Weighing 9.1 lb, the sway brace attachment offers a favorable balance of strength and manageability for field crews. The unit’s compact footprint and compatibility with 2.5 in pipe runs simplify transport, positioning, and alignment during installation within B-Line/TOLCO systems.
