Eaton FIG 1000 2 1/2X1 FASTC PLN - Lateral sway brace OSHPD
Part Number: FIG 1000 2 1/2X1 FASTC PLN
Quick Summary
Eaton B-Line series TOLCO lateral sway brace attachment provides secure, adjustable sway control for 2.5 inch piping in electrical and mechanical rooms. Field alignment and vibration can derail projects; this solution delivers a fast-clamp, rigid connection that keeps runs true and reduces rework. OSHPD Certified ensures code compliance for seismic installations, while the design also references seismic engineering guidelines to support safety and performance. With plain steel construction and a 2.5 inch pipe size plus a 1 inch brace pipe, it installs quickly, improves installation quality, and lowers total cost of ownership.
Product Information
Extended Description

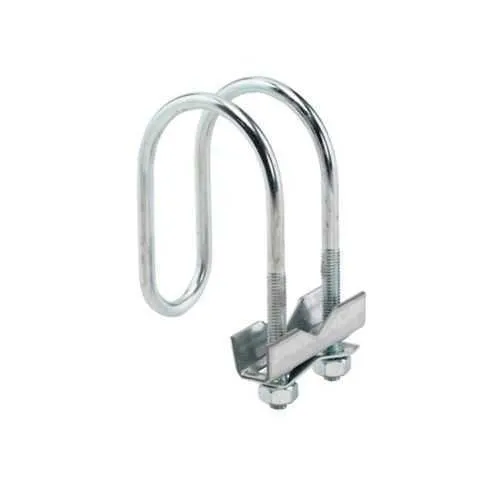

FIG 1000 2 1/2X1 FASTC PLN Eaton: Eaton B-Line series TOLCO lateral sway brace attachment, Plain, Steel, Fig 1000, 2.5" pipe size with 1" brace pipe, Fast clamp sway brace attachment
Product Name
Eaton B-Line series TOLCO lateral sway brace attachment
Catalog Number
FIG 1000 2 1/2X1 FASTC PLN
UPC
782051720686
Product Length/Depth
0 in
Product Height
1 in
Product Width
0 in
Product Diameter
2.5 in
Product Weight
9.1 lb
Certifications
OSHPD Certified
Finish
Plain
Material
Steel
Size
2.5 inch pipe size with 1 inch brace pipe
Model
Fig 1000
Type
Fast clamp sway brace attachment
Seismic engineering services
Seismic engineering services
Seismic engineering guidelines
Seismic engineering guidelines
Eaton Specification Sheet - FIG 1000 2 1/2X1 FASTC PLN
Feature: 2.5 inch pipe size with 1 inch brace pipe → Business Impact: Standardizes bracing across common rack configurations, reducing the need for custom hardware and minimizing inventory complexity. Application: Ideal for Eaton B-Line systems in electrical rooms and data centers where quick, reliable bracing is required. Feature: Fast clamp sway brace attachment → Business Impact: Accelerates installation, lowers field labor costs, and reduces risk of human error during assembly. Application: Suitable for on-site projects with tight schedules or constrained access. Feature: Material type steel with plain finish → Business Impact: Durable, cost-effective choice that resists wear in indoor environments and simplifies inspection workflows. Application: Internal bracing in clean-room or factory settings where a non-coated surface is preferred. Feature: Certifications OSHPD Certified → Business Impact: Demonstrates regulatory compliance for seismic installations, enabling safer, code-compliant deployments. Application: Critical for projects in seismic zones or facilities requiring formal bracing documentation. Feature: Product weight and dimensions (9.1 lb, 2.5 in diameter, 1 in height) → Business Impact: Manageable handling and predictable load performance, facilitating transport, staging, and retrofit work. Application: Compatible with standard rack legs and attachment hardware in industrial spaces. Feature: Model Fig 1000, Type Fast clamp sway brace attachment → Business Impact: Recognizable legacy compatibility with the FIG 1000 family, ensuring ecosystem coherence and simplifying procurement. Application: Widely used across electrical/mechanical infrastructure where swift, robust sway control is essential.
Get a Quick Quote for a Eaton FIG 1000 2 1/2X1 FASTC PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 1000 2 1/2X1 FASTC PLN?
Enquire Now
FAQs
FIG 1000 2 1/2X1 FASTC PLN is designed for a 2.5 in pipe size with a 1 in brace pipe, using a fast clamp mechanism. This compatibility supports standard rack configurations, minimizes need for adapters, and simplifies stocking for Eaton B-Line installations in electrical rooms and mechanical spaces.
Begin with locating the brace anchor points on the rack, insert the 2.5 in pipe through the sway brace attachment, align the 1 in brace pipe, and engage the fast clamp until it seats securely. Verify the assembly for lateral stability, then test movement to ensure proper restraint during normal operation and seismic events.
This sway brace is ideal for electrical rooms, data centers, industrial facilities, and mechanical spaces where 2.5 in piping requires reliable seismic restraint. The OSHPD Certified designation supports use in buildings with code-compliant seismic bracing requirements, helping maintain system integrity under vibration and seismic loads.
The FIG 1000 FASTC PLN carries OSHPD Certification, indicating compliance with seismic bracing expectations for code-conforming installations. It is also aligned with Eaton’s seismic engineering guidelines and resources, which support proper design and documentation during engineering reviews.
By reducing installation time with a fast clamp, enhancing seismic compliance, and decreasing rework from misalignment, this sway brace lowers labor costs, speeds commissioning, and improves long-term reliability of piping runs in critical facilities. Lifecycle benefits include easier inspections and durable performance under vibration.
