Eaton FIG 1000 4X1 1/4 FASTC PLN - OSHPD Certified
Part Number: FIG 1000 4X1 1/4 FASTC PLN
Quick Summary
Eaton FIG 1000 4X1 1/4 FASTC PLN is a lateral sway brace attachment for TOLCO supports in seismic installations. Installers often face lengthy bracing tasks and variable performance, leading to downtime and potential noncompliance. OSHPD Certified and aligned with seismic engineering guidelines, this component supports code-compliant bracing in healthcare facilities, data centers, and industrial spaces. Designed for a 4 inch pipe with a 1.25 inch brace pipe, it enables rapid, durable bracing that integrates smoothly with standard B-Line/TOLCO systems, helping facilities reduce installation time and total project costs while maintaining safety margins.
Product Information
Extended Description

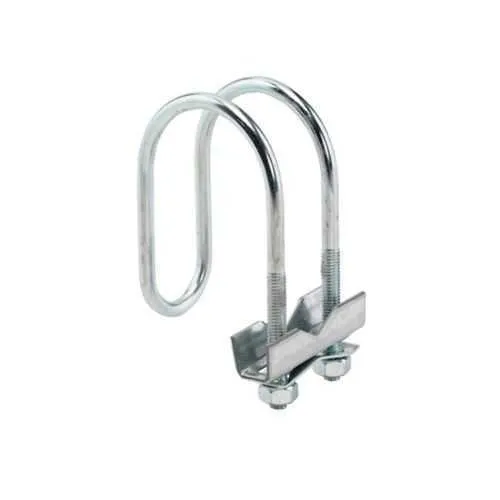

FIG 1000 4X1 1/4 FASTC PLN Eaton: Eaton B-Line series TOLCO lateral sway brace attachment, Plain, Steel, Fig 1000, 4" pipe size with 1.25" brace pipe, Fast clamp sway brace attachment
Product Name
Eaton B-Line series TOLCO lateral sway brace attachment
Catalog Number
FIG 1000 4X1 1/4 FASTC PLN
UPC
782051720983
Product Length/Depth
0 in
Product Height
1.25 in
Product Width
0 in
Product Diameter
4 in
Product Weight
11.4 lb
Certifications
OSHPD Certified
Finish
Plain
Material
Steel
Size
4 inch pipe size with 1.25 inch brace pipe
Model
Fig 1000
Type
Fast clamp sway brace attachment
TOLCO seismic bracing overview brochure
TOLCO seismic bracing overview brochure
Seismic engineering guidelines
Seismic engineering guidelines
Eaton Specification Sheet - FIG 1000 4X1 1/4 FASTC PLN
Feature: Fast clamp sway brace attachment design enables quick field connections. Business Impact: Cuts installation time and labor costs while reducing on-site errors. Application: Ideal for 4 inch pipe systems with 1.25 inch brace pipes in electrical rooms and data centers. Feature: Plain steel finish and robust 11.4 lb construction. Business Impact: Delivers durable, economical bracing compatible with indoor environments and existing hardware. Application: Great for retrofit projects and new builds in commercial facilities. Feature: OSHPD Certified ensures regulatory compliance for seismic bracing. Business Impact: Lowers project risk and accelerates approvals in healthcare facilities. Application: Seismic bracing in hospitals and clinics using TOLCO systems. Feature: Compatibility with Eaton B-Line series TOLCO components. Business Impact: Simplifies procurement, reduces field adaptation, and improves install consistency. Application: Widespread use across modular racking, cable management, and support systems. Feature: 4 inch pipe size with 1.25 inch brace pipe as standard. Business Impact: Supports common seismic bracing configurations with reliable load distribution. Application: Bracing for cable trays, racks, and support structures in industrial environments.
Get a Quick Quote for a Eaton FIG 1000 4X1 1/4 FASTC PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 1000 4X1 1/4 FASTC PLN?
Enquire Now
FAQs
The FASTC PLN uses a quick-clamp design that secures directly to a 4 in pipe and accepts a 1.25 in brace pipe. Ensure clean mounting surfaces, verify alignment with the TOLCO system, and tighten per Eaton’s torque specifications to achieve a secure, seismic-rated connection.
Yes. FIG 1000 is designed as a lateral sway brace attachment within the Eaton B-Line/TOLCO ecosystem, allowing seamless integration with existing support structures and standard components.
This part is intended for seismic bracing of 4 inch pipe systems with 1.25 inch brace pipes, commonly used in electrical rooms, data centers, healthcare facilities, and other environments requiring compliant TOLCO bracing.
The FIG 1000 FASTC PLN is OSHPD Certified, which supports compliance for seismic bracing in healthcare facilities and similar installations. For project teams, refer to Eaton’s seismic engineering guidelines and the TOLCO bracing literature for additional standards alignment.
Key specs include a 4 inch pipe size with 1.25 inch brace pipe, plain steel material, 11.4 lb weight, 1.25 in brace attachment height, and OSHPD certification. Catalog number is FIG 1000 4X1 1/4 FASTC PLN, with a 1.25 in brace and 4 in diameter.
