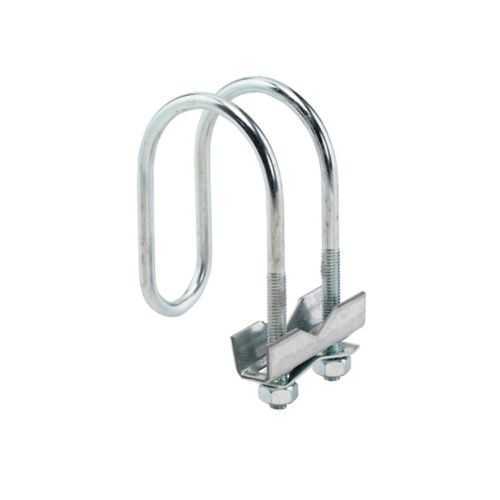

Eaton FIG 1000 5X1 1/4 FASTC EG - OSHPD Certified
Part Number: FIG 1000 5X1 1/4 FASTC EG
Quick Summary
Eaton FIG 1000 5X1 1/4 FASTC EG is a lateral sway brace attachment for seismic bracing of electrical support systems. Designers often face installation delays and compatibility challenges when retrofitting racks and supports to meet code requirements. OSHPD Certified to support code-compliant seismic bracing, this figure aligns with Tolco/TOLCO B-Line systems and is compatible with standard 5 inch pipe sizes and a 1.25 inch brace pipe. The electro-galvanized steel construction delivers durable performance in demanding environments, while the fast clamp design reduces on-site installation time. By leveraging this solution, facilities can improve installation efficiency, reduce labor costs, and ensure ongoing compliance in data centers, manufacturing floors, and electrical rooms. Use alongside Eaton seismic engineering resources for best results.
Product Information
Extended Description
FIG 1000 5X1 1/4 FASTC EG Eaton: Eaton B-Line series TOLCO lateral sway brace attachment, Electro-galvanized, Steel, Fig 1000, 5" pipe size with 1.25" brace pipe, Fast clamp sway brace attachment
Product Name
Eaton B-Line series TOLCO lateral sway brace attachment
Catalog Number
FIG 1000 5X1 1/4 FASTC EG
UPC
782051746020
Product Length/Depth
0 in
Product Height
1.25 in
Product Width
0 in
Product Diameter
5 in
Product Weight
1.27 lb
Certifications
OSHPD Certified
Finish
Electro-plated
Material
Steel
Size
5 inch pipe size with 1.25 inch brace pipe
Model
Fig 1000
Type
Fast clamp sway brace attachment
Seismic engineering services
Seismic engineering services
Seismic engineering guidelines
Seismic engineering guidelines
Eaton Specification Sheet - FIG 1000 5X1 1/4 FASTC EG
Feature → Business Impact → Application: The FIG 1000 uses a fast clamp sway brace attachment, enabling quicker installation times and reduced labor costs on project sites. This direct impact translates into shorter commissioning windows and lower total installed cost for seismic bracing projects. Application: Ideal for 5 inch pipe systems with a 1.25 inch brace pipe, common in industrial racks and electrical support structures; supports rapid retrofit and new-build installations with minimal tools. Feature → Business Impact → Application: Electro-plated electro-galvanized steel construction provides corrosion resistance suitable for damp or industrial environments, extending service life and reducing maintenance. Application: Suitable for data centers, manufacturing floors, and service rooms where durability and code compliance are critical. Feature → Business Impact → Application: OSHPD certification offers regulatory confidence and risk reduction, helping compliance teams pass seismic inspections without delays. Application: Use in projects requiring seismic validation and traceable documentation, supported by Eaton’s engineering resources. Feature → Business Impact → Application: Lateral sway control with a 5 inch pipe size and 1.25 inch brace pipe enhances structural stability under lateral loads. Application: Applies to rack bracing and mechanical-electrical-plumbing (MEP) systems within Tolco/B-Line installations. Feature → Business Impact → Application: Lightweight design (1.27 lb) minimizes load on supporting structures while maintaining strength, supporting cost-effective installations. Application: Great for multi-tier racking and ceiling-mounted bracing where dead load matters. Feature → Business Impact → Application: Comprehensive product metadata (Model Fig 1000, Type Fast clamp sway brace attachment) supports precise procurement and bill-of-materials workflows. Application: Improves purchasing accuracy and reduces order errors in large facilities.
Get a Quick Quote for a Eaton FIG 1000 5X1 1/4 FASTC EG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 1000 5X1 1/4 FASTC EG?
Enquire Now
FAQs
The FIG 1000 uses a fast clamp sway brace attachment designed for quick on-site installation. It accommodates a 5 inch pipe size and a 1.25 inch brace pipe, compatible with Eaton B-Line Tolco systems. Begin by aligning with the 5 inch main pipe, secure using the fast clamp mechanism, and verify alignment and tightness per Tolco installation guidelines. The electro-galvanized steel finish resists corrosion in typical electrical rooms and mechanical spaces.
Key specifications include a 5 inch product diameter, 1.25 inch brace pipe, and a weight of 1.27 lb, with an electro-plated steel body. The unit is part of Eaton’s B-Line series and is OSHPD Certified, ensuring seismic compliance. The model name is Fig 1000, and it’s designed as a Fast clamp sway brace attachment for efficient installation on 5 inch pipe systems.
Yes. The FIG 1000 5X1 1/4 FASTC EG is designed for seismic bracing in electrical and mechanical rooms, including data centers. Its 5 inch main pipe with a 1.25 inch brace pipe configuration matches common Tolco-B-Line layouts. OSHPD Certification adds regulatory confidence, and its fast-clamp design reduces labor time while maintaining code-compliant performance during seismic events.
The figure is OSHPD Certified, confirming it meets seismic compliance requirements for appropriate installations. This certification supports documentation needed for code compliance and inspections. For full acceptance, reference Eaton seismic engineering guidelines and the Seismic Bracing catalog PDFs, which provide installation procedures and verification steps aligned with OSHPD expectations.
The fast-clamp design reduces installation time and labor costs, offering faster project completion and lower field labor risk. Lightweight construction minimizes structural load, helping with easier integration into existing racks. OSHPD certification reduces risk of rework or inspection delays, contributing to a favorable overall return on investment for seismic-bracing projects in commercial and industrial facilities.
