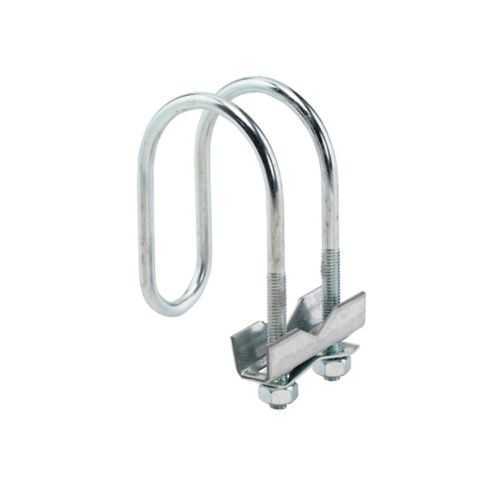

Eaton FIG 1000 5X1 1/4 FASTC PLN - OSHPD Certified
Part Number: FIG 1000 5X1 1/4 FASTC PLN
Quick Summary
The Eaton FIG 1000 sway brace attachment provides reliable lateral bracing for B-Line Tolco systems. Engineers often struggle with misalignment, slow installs, and on-site maintenance when bracing isn't designed for seismic loads. OSHPD Certified design supports seismic compliance, while the plain steel finish and fast clamp enable rapid, tool-free installation. This product integrates with Eaton’s B-Line Tolco hardware to support electrical, mechanical, and plumbing layouts. With a 5 inch pipe size and 1.25 inch brace pipe, it delivers robust support while maintaining a compact, lightweight installation profile. This makes it suitable for controlled environments and harsh industrial settings where space and labor savings matter.
Product Information
Extended Description
FIG 1000 5X1 1/4 FASTC PLN Eaton: Eaton B-Line series TOLCO lateral sway brace attachment, Plain, Steel, Fig 1000, 5" pipe size with 1.25" brace pipe, Fast clamp sway brace attachment
Product Name
Eaton B-Line series TOLCO lateral sway brace attachment
Catalog Number
FIG 1000 5X1 1/4 FASTC PLN
UPC
782051746013
Product Length/Depth
0 in
Product Height
1.25 in
Product Width
0 in
Product Diameter
5 in
Product Weight
1.27 lb
Certifications
OSHPD Certified
Finish
Plain
Material
Steel
Size
5 inch pipe size with 1.25 inch brace pipe
Model
Fig 1000
Type
Fast clamp sway brace attachment
Seismic engineering services
Seismic engineering services
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Eaton Specification Sheet - FIG 1000 5X1 1/4 FASTC PLN
Feature: Fast-clamp mechanism for the FIG 1000 sway brace. Business Impact: Accelerates field installation, cutting labor time and reducing on-site man-hours during seismic-bracing projects. Application: Ideal for 5 inch pipe size with a 1.25 inch brace pipe in Eaton B-Line Tolco lateral bracing installations, especially when schedules are tight. Feature: Precise compatibility with standard Tolco components. Business Impact: Minimizes adapters and misfits, improving install reliability and reducing rework. Application: Seamless integration with Fig 1000 and related Tolco hardware in mechanical rooms and electrical closets. Feature: Plain steel finish and robust construction. Business Impact: Delivers durable performance in industrial environments and supports long service life with minimal maintenance. Application: Suitable for harsh factory floors and near-system spaces where strength matters. Feature: OSHPD Certified design. Business Impact: Ensures seismic compliance for code-sensitive facilities, reducing design risk. Application: Critical in hospitals, data centers, and other regulated environments that rely on reliable bracing. Feature: Lightweight at about 1.27 lb. Business Impact: Eases handling and reduces cradle/hoisting equipment needs during installation. Application: Helpful in multi-branch installations in tight spaces. Feature: Access to supporting materials. Business Impact: Procurement and design workflows gain confidence with official brochures and catalogs. Application: Use Eaton seismic-bracing catalogs and the FIG 1000 spec sheet to validate configurations before field assembly.
Get a Quick Quote for a Eaton FIG 1000 5X1 1/4 FASTC PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 1000 5X1 1/4 FASTC PLN?
Enquire Now
FAQs
FIG 1000 FASTC PLN is designed for use with a 5 inch pipe size and a 1.25 inch brace pipe, using the fast-clamp mechanism. It pairs with Eaton B-Line Tolco lateral bracing hardware for straightforward installation in electrical, mechanical, and plumbing enclosures. The OSHPD-certified component supports seismic bracing requirements while providing a reliable alignment baseline.
Key specifications include a 5 inch product diameter, 1.25 inch brace pipe, plain steel finish, and a weight of approximately 1.27 pounds. The catalog number is FIG 1000 5X1 1/4 FASTC PLN, with a UPC of 782051746013. The unit is OSHPD certified and designed for lateral sway brace attachment in Tolco systems.
Yes. The FIG 1000 sway brace attachment is OSHPD certified, intended for seismic bracing within mechanical, electrical, and plumbing layouts. Its fast-clamp design minimizes installation time while maintaining structural integrity and compliance with seismic bracing guidelines pertinent to MEP installations.
The product is OSHPD Certified, confirming compliance with seismic bracing standards required in many construction projects. This certification supports regulatory acceptance in relevant jurisdictions and provides assurance for projects in healthcare, data centers, and other environments where seismic performance is critical.
The fast-clamp design reduces field labor and installation time, delivering tangible labor-cost savings on seismic-bracing tasks. The robust steel construction and OSHPD certification help minimize maintenance needs and rework due to misalignment, while standard sizing ensures easy sourcing and long-term procurement consistency.
