Eaton FIG 1000 6X1 1/4 FASTC PLN - OSHPD
Part Number: FIG 1000 6X1 1/4 FASTC PLN
Quick Summary
Eaton FIG 1000 6X1 1/4 FASTC PLN is a lateral sway brace attachment for seismic bracing of pipe racks. Construction teams often struggle with sway braces that loosen under vibration or take excessive time to install. OSHPD Certified and designed for durable performance, this attachment supports reliable seismic bracing in electrical and mechanical systems. In practice, it integrates with Eaton B-Line TOLCO hardware to reduce field labor and rework while ensuring compliance. It is particularly suited for 6 inch pipe systems with a 1.25 inch brace pipe, and the plain steel finish keeps procurement simple without compromising strength. With a lightweight profile and straightforward mounting, engineers can quickly verify alignment and meet project specifications.
Product Information
Extended Description

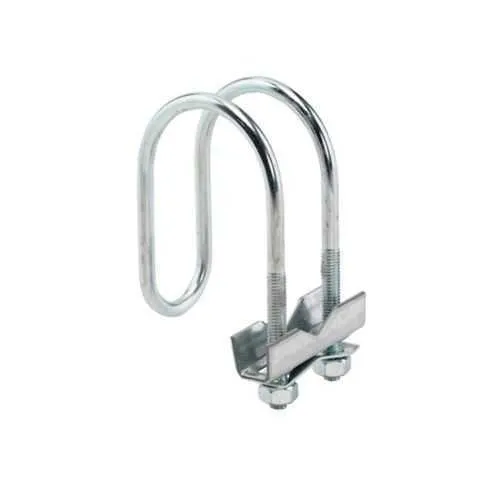

FIG 1000 6X1 1/4 FASTC PLN Eaton: Eaton B-Line series TOLCO lateral sway brace attachment, Plain, Steel, Fig 1000, 6" pipe size with 1.25" brace pipe, Fast clamp sway brace attachment
Product Name
Eaton B-Line series TOLCO lateral sway brace attachment
Catalog Number
FIG 1000 6X1 1/4 FASTC PLN
UPC
782051721003
Product Length/Depth
0 in
Product Height
1.25 in
Product Width
0 in
Product Diameter
6 in
Product Weight
1.41 lb
Certifications
OSHPD Certified
Finish
Plain
Material
Steel
Size
6 inch pipe size with 1.25 inch brace pipe
Model
Fig 1000
Type
Fast clamp sway brace attachment
TOLCO seismic bracing overview brochure
TOLCO seismic bracing overview brochure
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Eaton Specification Sheet - FIG 1000 6X1 1/4 FASTC PLN
The fast clamp mechanism reduces installation time and labor costs, delivering a secure, repeatable sway brace connection even in high-vibration environments. By design, the attachment integrates seamlessly with Eaton B-Line TOLCO components, ensuring compatibility across common seismic bracing layouts and easing project procurement. The plain steel finish keeps material costs low while providing dependable strength for indoor installations in electrical and mechanical rooms. The Fig 1000 model supports a 6 inch pipe size with a 1.25 inch brace pipe, minimizing field adaptations and fit issues during on-site assembly. OSHPD certification adds regulatory confidence, helping projects meet seismic design criteria while maintaining overall system integrity. Lightweight at 1.41 lb, the unit is easy to handle and position during mounting.
Get a Quick Quote for a Eaton FIG 1000 6X1 1/4 FASTC PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 1000 6X1 1/4 FASTC PLN?
Enquire Now
FAQs
Installation uses the fast clamp mechanism to grip the 6 inch pipe and the 1.25 inch brace pipe. Align the sway brace with the pipe rack, tighten the clamp until snug, and verify the connection remains secure under anticipated vibration. The lightweight 1.41 lb design reduces on-site handling and speeds commissioning.
Yes. FIG 1000 is designed for seamless integration with Eaton B-Line series TOLCO seismic bracing hardware, ensuring consistent fit and predictable load paths across common 6 in pipe configurations. This compatibility reduces procurement complexity and supports standardized installations.
This device is intended for seismic bracing in electrical and mechanical installations using 6 inch pipe systems with a 1.25 inch brace pipe. The OSHPD Certified unit is well-suited for healthcare and other seismic-sensitive facilities where robust lateral restraint is required.
The FIG 1000 FASTC PLN carries OSHPD Certification, indicating compliance with seismic bracing standards in specified jurisdictions. This certification helps ensure the product meets life-safety and installation requirements for critical electrical and mechanical infrastructure.
The fast clamp design minimizes field labor and rework, delivering faster installation and lower labor costs. The plain steel construction offers durable performance with minimal maintenance, and compatible 6 in pipe configurations reduce future replacement or modification needs.
