Eaton FIG 2002 2 1/2X1 1/2SWYBA PLN - UL Listed
Part Number: FIG 2002 3 X 1 1/2SWY B/A PLN
Quick Summary
Eaton B-Line series TOLCO lateral sway brace attachment is a robust solution for securing seismic restraint on 2.5 inch piping in mechanical, electrical, and plumbing assemblies. The goal is to reduce field rework and misalignment that often slow installs and compromise safety. UL Listed certification underpins electrical-safety compliance, while the plain steel, 2.5 inch pipe diameter, and 1.5 inch brace pipe configuration align with Tolco seismic bracing practices. This product streamlines installation workflows and supports predictable lead times, while integrating with Eaton’s B-Line Tolco ecosystem to boost project-wide reliability and compliance.
Product Information
Extended Description

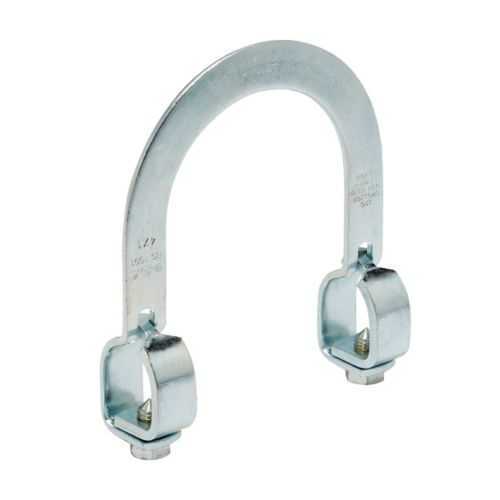

FIG 2002 3 X 1 1/2SWY B/A PLN Eaton: Eaton B-Line series TOLCO lateral sway brace attachment, Plain, Steel, Fig 2002, 3" pipe size with 1.5" brace pipe, Sway brace attachment
Product Name
Eaton B-Line series TOLCO lateral sway brace attachment
Catalog Number
FIG 2002 3 X 1 1/2SWY B/A PLN
UPC
782051721027
Product Length/Depth
0 in
Product Height
1.5 in
Product Width
0 in
Product Diameter
3 in
Product Weight
2.4 lb
Certifications
UL Listed
Finish
Plain
Material
Steel
Size
3 inch pipe size with 1.5 inch brace pipe
Model
Fig 2002
Type
Sway brace attachment
TOLCO seismic bracing overview brochure
TOLCO seismic bracing overview brochure
Seismic engineering guidelines
Seismic engineering guidelines
Eaton Specification Sheet - FIG 2002 3 X 1 1/2SWY B/A PLN
Feature → Business Impact → Application: Lateral sway brace attachment for 2.5 in pipe with 1.5 in brace pipe provides precise alignment and dependable seismic restraint, reducing adjustment time on site and improving installation accuracy for MEPS configurations. Application: ideal for seismic bracing in mechanical, electrical, and plumbing runs where quick, repeatable connections are required. Feature → Business Impact → Application: Steel construction with a plain finish offers durable performance and straightforward field touch-up or painting, lowering long-term maintenance costs and extending service life in harsh environments. Application: suitable for indoor industrial facilities needing resilient, code-compliant bracing. Feature → Business Impact → Application: UL Listed certification delivers regulatory confidence and simplifies audits, decreasing risk during inspections and accelerating procurement cycles. Application: essential for electrical-related projects and facilities subject to strict safety standards. Feature → Business Impact → Application: Part of the Eaton B-Line series Tolco system ensures compatibility across Tolco catalog components, enabling faster sourcing and fewer compatibility issues. Application: supports streamlined installation when combining with other Tolco seismic accessories. Feature → Business Impact → Application: Lightweight at approximately 2.83 lb with a 2.5 in diameter profile; improves handling on site and reduces crane or lift requirements for installation. Application: beneficial for install teams working in constrained spaces or elevated installations.
