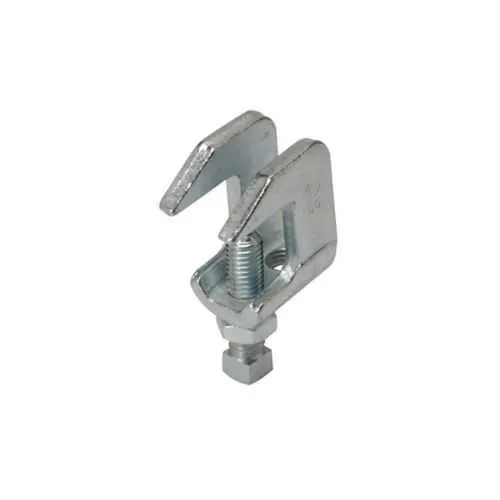

Eaton B-Line beam clamps FIG. 66 3/8 REVBEAMCL HDG - UL Listed
Part Number: FIG. 66 3/8 REVBEAMCL HDG
Quick Summary
Eaton B-Line beam clamps provide reliable support for electrical and mechanical runs in industrial facilities. Engineers often struggle to secure overhead supports that resist vibration while fitting compact spaces. This clamp features a safety factor of 5 when used with setscrews and locknuts, and uses a reversible stainless steel C-type design with a 3/8-16 thread/rod size. The hot-dipped galvanized finish adds corrosion protection in damp environments. UL Listed certification underscores safety and code compliance for building and electrical installations. For procurement teams, the combination of robust performance and straightforward installation translates to reduced project risk and faster commissioning, while maintaining compatibility with standard strut channels and Eaton B-Line accessories.
Product Information
Extended Description
FIG. 66 3/8 REVBEAMCL HDG Eaton: Eaton B-Line series beam clamps, Steel, Safety factor 5 used with setscrews and locknuts, Reversible stainless steel c-type beam clamp, 3/8"-16 thread/rod size, 3/8"-16 screw size, Hot-dipped galvanized
Product Name
Eaton B-Line series beam clamps
Catalog Number
FIG. 66 3/8 REVBEAMCL HDG
UPC
799038505686
Product Length/Depth
3 in
Product Height
1.6 in
Product Width
1.125 in
Product Weight
0.28 lb
Certifications
UL Listed
Set screw size
3/8"-16
Special features
Safety factor 5 used with setscrews and locknuts
Thread/rod size
3/8"-16
Type
Reversible stainless steel c-type beam clamp
Material
Steel
Beam clamps and accessories section from strut catalog
Eaton Specification Sheet - FIG. 66 3/8 REVBEAMCL HDG
Feature: Reversible stainless steel C-type beam clamp with 3/8-16 thread/rod size. Business Impact: Provides orientation flexibility and broad hardware compatibility, reducing rework and inventory needs. Application: Ideal for overhead support in lighting and emergency-system installations where space is constrained. Feature: 3 inch length, 1.6 inch height, and 1.125 inch width with a light 0.28 lb weight. Business Impact: Compact footprint supports tight enclosures and streamlined routing, improving installation efficiency. Application: Suitable for compact strut runs and where weight budgeting is important. Feature: Hot-dipped galvanized finish. Business Impact: Enhances corrosion resistance, extending service life in damp or outdoor environments and lowering maintenance costs. Application: Industrial facilities with exposure to moisture, dust, or outdoor sections. Feature: UL Listed. Business Impact: Confirms compliance with electrical and safety standards, reducing approval time and risk. Application: Electrical and lighting system installations that require code-ready components. Feature: Safety factor of 5 with setscrews and locknuts. Business Impact: Improves mounting reliability under dynamic loads and vibrations, lowering risk of loosening. Application: Racking, supports, and piping runs in vibration-prone environments.
Get a Quick Quote for a Eaton FIG. 66 3/8 REVBEAMCL HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG. 66 3/8 REVBEAMCL HDG?
Enquire Now
FAQs
The FIG. 66 3/8 REVBEAMCL HDG beam clamp uses a 3/8-16 thread/rod and a 3/8-16 set screw. For proper installation, align the clamp to the strut channel, insert the screw into the rod, and tighten with standard locknuts to achieve the specified safety factor. Ensure compatibility with existing B-Line components and verify UL Listed compliance after installation.
With a safety factor of 5 used in combination with setscrews and locknuts, the clamp provides enhanced margin against dynamic loads and vibrations common in industrial installations. This translates to reduced risk of loosening and improved long-term reliability in overhead supports for electrical and lighting runs.
Yes. The clamp features a hot-dipped galvanized finish that enhances corrosion resistance, making it appropriate for damp environments and exposed outdoor installations. Always verify environmental conditions and service life expectations to confirm long-term performance within your facility.
The clamp is UL Listed, signifying compliance with safety standards for electrical components. This certification helps ensure code compliance for building and electrical installations, simplifies procurement with code-ready hardware, and supports risk management in project planning.
The FIG. 66 REVBEAMCL HDG is designed for compatibility with standard 3/8-16 hardware and Eaton B-Line strut systems. Its reversible design, 3/8-16 thread/rod specification, and compatibility with setscrews and locknuts streamline retrofits and new builds alike, reducing install time and inventory complexity while maintaining high structural integrity.
