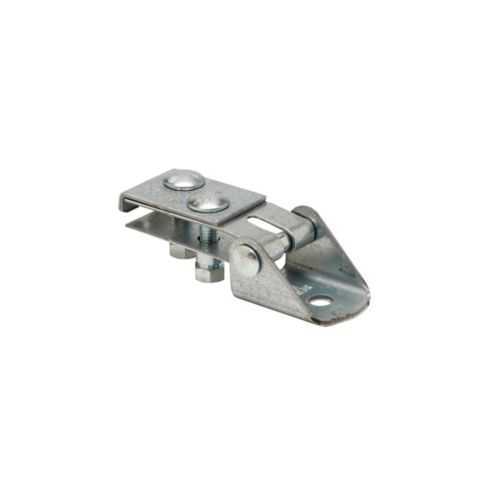

Eaton FIG 990 1/4CB 3/4 PGL - TOLCO swivel sway brace attachment, OSHPD Certified
Part Number: FIG 990 1/4CB 3/4 PGL
Quick Summary
Eaton FIG 990 1/4CB 3/4 PGL is a swivel sway brace attachment used for seismic bracing on electrical racks. This design addresses the challenge of quick, code-compliant bracing in crowded utility rooms where space is limited. OSHPD Certified and aligned with seismic engineering guidelines, it supports reliable structural restraint while minimizing hardware complexity. The pre-galvanized steel construction delivers corrosion resistance in interior installations, and the compact 5 in length keeps routing unobtrusive. By standardizing on this TOLCO brace, contractors gain faster installs, predictable performance, and long-term cost savings across data centers, manufacturing floors, and industrial facilities.
Product Information
Extended Description
FIG 990 1/4CB 3/4 PGL Eaton: Eaton B-Line series TOLCO swivel sway brace attachment, Pre-galvanized, 3150 lbs load capacity, 1/4", Steel material
Product Name
Eaton B-Line series TOLCO swivel sway brace attachment
Catalog Number
FIG 990 1/4CB 3/4 PGL
UPC
782051718751
Product Length/Depth
5 in
Product Height
2.62 in
Product Width
2.62 in
Product Weight
1.93 lb
Certifications
OSHPD Certified
Finish
Pre-galvanized
Material
Steel
Size
1/4 inch
Load capacity
3150 lbs
TOLCO seismic bracing overview brochure
TOLCO seismic bracing overview brochure
Seismic engineering guidelines
Seismic engineering guidelines
Eaton Specification Sheet - FIG 990 1/4CB 3/4 PGL
Feature: Pre-galvanized steel finish; Business Impact: Corrosion resistance improves long-term reliability in interior electrical installations, reducing maintenance cycles; Application: Ideal for indoor rack bracing where moisture exposure is minimal yet corrosion resistance is required. Feature: 3150 lbs load capacity; Business Impact: Enables secure restraint for heavy seismic loads, reducing risk of equipment displacement and potential downtime; Application: Suitable for high-density electrical rooms and data centers with demanding seismic requirements. Feature: Compact 5 in length and 2.62 in width; Business Impact: Minimal footprint enables installation in tight spaces without compromising cable routing or other hardware; Application: Overhead racks and crowded electrical panels where space is at a premium. Feature: 1.93 lb weight; Business Impact: Lightweight components speed up installation and handling without sacrificing strength; Application: Field installations where labor time per brace matters for project ROI. Feature: OSHPD Certified; Business Impact: Supports compliance with seismic bracing standards, streamlining approval processes and reducing rework; Application: Healthcare facilities, laboratories, and other OSHPD-regulated environments. Feature: Catalog Number FIG 990 1/4CB 3/4 PGL; Business Impact: Clear identification aids in procurement, inventory control, and spec alignment; Application: Standardized Eaton TOLCO bracing across projects, promoting repeatable installations. Feature: Material: Steel; Finish: Pre-galvanized; Product Dimension: Size 1/4 inch; Load rating and dimension data enable precise engineering calculations for rack systems; Application: Engineering design reviews and seismic bracing calculations in electrical installations.
Get a Quick Quote for a Eaton FIG 990 1/4CB 3/4 PGL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 990 1/4CB 3/4 PGL?
Enquire Now
FAQs
The FIG 990 1/4CB 3/4 PGL is designed for Eaton B-Line series TOLCO sway brace applications and uses standard sway brace attachment points. It pairs with 1/4 inch size bracing hardware, fits within typical electrical rack and cable tray layouts, and supports seismic bracing requirements in interior facilities like data centers and manufacturing plants.
This swivel sway brace attachment delivers a 3150 lbs load capacity and is manufactured from steel with a pre-galvanized finish. These characteristics provide robust seismic restraint, corrosion resistance, and long-term durability in indoor environments where mechanical stability is critical.
Yes, the FIG 990 1/4CB 3/4 PGL is OSHPD Certified, designed to meet seismic bracing standards for electrical installations. The certification supports code-compliant installations in regulated facilities and helps streamline approval processes during project commissioning.
The compact 5 in length and 2.62 in width enable installation in constrained spaces without obstructing adjacent components. This footprint improves cable routing flexibility, simplifies overhead mounting, and reduces clearance requirements, making it well-suited for dense rack configurations and crowded electrical rooms.
Eaton’s TOLCO sway braces offer durable steel construction with a pre-galvanized finish that resists corrosion, lowering maintenance cycles. The 3150 lbs rating supports reliable seismic restraint for critical equipment, accelerating installation, reducing rework, and delivering predictable long-term ROI across facilities with Seismic bracing needs.
