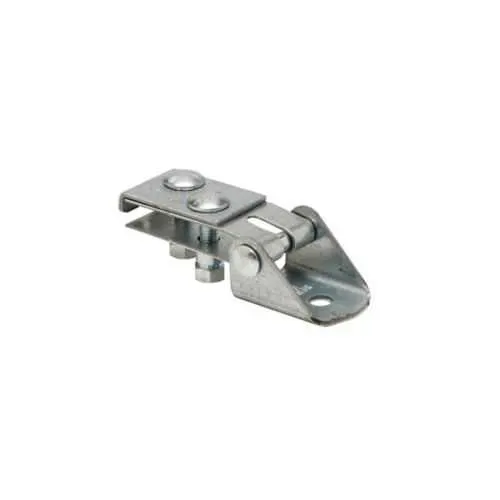

Eaton FIG 990 1/4CB 5/8RD PGL - OSHPD Certified
Part Number: FIG 990 1/4CB 5/8RD PGL
Quick Summary
Eaton FIG 990 1/4CB 5/8RD PGL is a swivel sway brace attachment that secures Tolco braces in seismic-sensitive electrical installations. Engineers often struggle to find bracing that combines high load capacity with quick, reliable installation in dense equipment rooms. This product carries OSHPD certification and aligns with Tolco seismic guidelines, ensuring regulatory compliance and predictable performance in critical facilities. The pre-galvanized steel finish resists corrosion, while a compact 5 inch length and 2.62 inch square footprint simplify retrofit in crowded racks. By delivering strong lateral support with minimal space impact, it helps reduce field labor, extend equipment life, and lower lifecycle costs for industrial, healthcare, and commercial projects.
Product Information
Extended Description
FIG 990 1/4CB 5/8RD PGL Eaton: Eaton B-Line series TOLCO swivel sway brace attachment, Pre-galvanized finish, 3150 lbs load capacity, 1/4", Steel material
Product Name
Eaton B-Line series TOLCO swivel sway brace attachment
Catalog Number
FIG 990 1/4CB 5/8RD PGL
UPC
782051718744
Product Length/Depth
5 in
Product Height
2.62 in
Product Width
2.62 in
Product Weight
1.93 lb
Certifications
OSHPD Certified
Finish
Pre-galvanized
Material
Steel
Size
1/4 inch
Load capacity
3150 lbs
Seismic engineering services
Seismic engineering services
Seismic engineering guidelines
Seismic engineering guidelines
Eaton Specification Sheet - FIG 990 1/4CB 5/8RD PGL
Feature: 3150 lb load capacity provides robust resistance to lateral and seismic loads. Business Impact: This translates to higher equipment stability, fewer field adjustments, and safer installations in crowded racks. Application: Ideal for securing electrical enclosures and support rails in industrial, healthcare, and commercial facilities. Feature: Pre-galvanized steel finish offers corrosion resistance in harsh environments. Business Impact: Extends service life and reduces maintenance costs in both indoor and outdoor installations. Application: Suitable for Tolco B-Line sway brace systems in factories and data centers. Feature: Compact 5 in length with 2.62 in width and 2.62 in height, weighing 1.93 lb. Business Impact: Enables easy handling and retrofit in tight spaces, speeding up installation without compromising strength. Application: Perfect for retrofits and new builds with limited clearance. Feature: OSHPD Certification and access to seismic guidelines. Business Impact: Supports regulatory compliance and reduces audit risk for projects in healthcare, commercial, and industrial sectors. Application: Used where seismic performance documentation is required. Feature: Compatibility with Eaton B-Line Tolco system and availability of official specification sheets and guidelines. Business Impact: Streamlines design decisions and procurement, reducing engineering time and ensuring consistent performance. Application: Integrates into Tolco sway brace layouts across multiple facilities.
Get a Quick Quote for a Eaton FIG 990 1/4CB 5/8RD PGL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 990 1/4CB 5/8RD PGL?
Enquire Now
FAQs
The FIG 990 is designed for seamless integration with Eaton B-Line Tolco sway brace assemblies. It leverages a 1/4 inch size steel construction and a pre-galvanized finish to deliver a 3150 lb load rating. With a 5 inch length and a roughly 2.62 inch square footprint, it fits typical Tolco configurations and supports OSHPD-compliant seismic performance.
The device provides a 3150 lb load capacity and is manufactured from steel with a pre-galvanized finish. It measures 5 inches in length and 2.62 inches in width and height, weighing about 1.93 lb. These specs combine strength with a compact form factor suitable for dense electrical support applications.
Yes. FIG 990 carries OSHPD certification, and Eaton provides seismic engineering documentation to support compliance in healthcare and other critical facilities. The design aligns with Tolco seismic bracing guidelines, helping teams meet regulatory requirements while delivering reliable structural support for racks, enclosures, and supports.
Leverage the pre-galvanized steel and compact form factor to simplify retrofits and reduce corrosion-related maintenance. Its compatibility with the Tolco B-Line system minimizes lead times on design reviews, and the availability of Eaton spec sheets and seismic guidelines accelerates engineering approval and installation planning.
Key resources include the Eaton Specification Sheet for FIG 990 1/4CB 5/8RD PGL and Tolco seismic guidelines. Also available are seismic engineering brochures and overview documents that support project design and regulatory compliance. These assets provide detailed dimensions, load data, and installation recommendations.
