Eaton FIG 990 1/8CB 1/2 PGL - OSHPD Certified
Part Number: FIG 990 1/8CB 1/2 PGL
Quick Summary

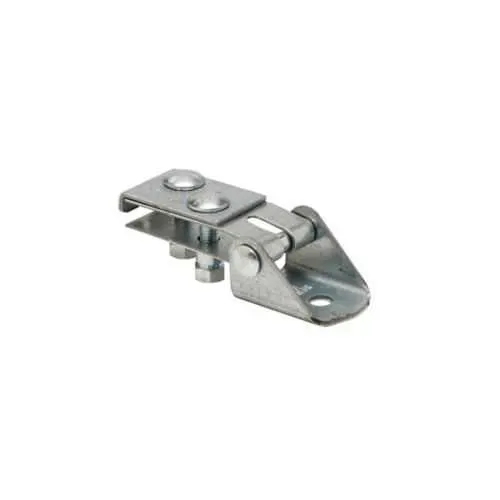

Eaton FIG 990 1/8CB 1/2 PGL swivel sway brace attachment stabilizes overhead supports in industrial enclosures. Choosing the wrong brace can lead to costly rework, undersized loads, or noncompliance with seismic requirements. This part carries OSHPD certification and aligns with seismic bracing guidelines to support code-compliant installations. With a 975 lb load capacity and a pre-galvanized steel finish, it delivers durable performance while remaining compatible with Eaton B-Line series and TOLCO systems, helping maintain uptime and minimize maintenance costs.
Product Information
Extended Description
FIG 990 1/8CB 1/2 PGL Eaton: Eaton B-Line series TOLCO swivel sway brace attachment, Pre-galvanized, 975 lbs load capacity, 1/8", Steel
Product Name
Eaton B-Line series TOLCO swivel sway brace attachment
Catalog Number
FIG 990 1/8CB 1/2 PGL
UPC
782051718720
Product Length/Depth
4.31 in
Product Height
2 in
Product Width
2 in
Product Weight
0.75 lb
Certifications
OSHPD Certified
Finish
Pre-galvanized
Material
Steel
Size
1/8 inch
Load capacity
975 lbs
TOLCO seismic bracing overview brochure
TOLCO seismic bracing overview brochure
Seismic engineering guidelines
Seismic engineering guidelines
Eaton Specification Sheet - FIG 990 1/8CB 1/2 PGL
Feature: 975 lbs load capacity → Business Impact: Enables secure support for heavier equipment and dynamic loads, reducing failure risk and rework; Application: Use in seismic bracing for electrical enclosures and mechanical systems. Feature: Pre-galvanized steel finish → Business Impact: Improves corrosion resistance in harsh environments, lowering replacement costs; Application: Install in industrial facilities with moisture exposure. Feature: Compact 4.31 in length with 2 in x 2 in footprint → Business Impact: Facilitates easy integration into existing rack infrastructure without rework; Application: Retrofit projects and new builds in restricted spaces. Feature: OSHPD Certified → Business Impact: Supports regulatory compliance for healthcare and critical facilities, reducing audit findings; Application: Seismic bracing design in code-governed spaces. Feature: 1/8 inch sizing and 975 lb rating → Business Impact: Provides precise compatibility with standard sway braces while offering substantial load capacity; Application: Versatile use across Eaton B-Line TOLCO installations. Insight: Industry practice favors modular, certified components that simplify design validation and procurement workflows, which this part supports with ready-to-use specifications.
Get a Quick Quote for a Eaton FIG 990 1/8CB 1/2 PGL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 990 1/8CB 1/2 PGL?
Enquire Now
FAQs
Installation starts with confirming compatibility with your existing sway braces and enclosure rails. Mount the swivel sway brace attachment in the designated TOLCO connection points, then secure using standard fasteners suitable for pre-galvanized steel. Verify the 4.31 inch length and 2 inch footprint fit within your rack spacing, and confirm a 975 pound load capacity under maximum expected seismic or wind loads. Always follow manufacturer guidelines and local codes during assembly.
Yes. FIG 990 is designed for use with 1/8 inch sway brace sizing and integrates with Eaton B-Line series TOLCO components. Its 1/8 inch size ensures precise compatibility, while the pre-galvanized steel construction supports reliable performance in typical industrial environments. For retrofit projects, confirm enclosure dimensions and brace attachment points before ordering.
The swivel sway brace attachment carries a 975 lb load capacity, making it suitable for stabilizing heavier equipment and stabilizing overhead systems in seismic zones. Use it in electrical enclosures and mechanical/plumbing installations where robust seismic bracing is required, and where OSHPD certification is desired to meet code compliance.
This part is OSHPD Certified, which supports compliance in seismic design for healthcare, industrial, and critical facilities. In addition, it references seismic engineering guidelines and catalog literature from Eaton to validate installation methods and performance under realistic loading scenarios. Always cross-check local regulatory requirements and project specifications when selecting seismically braced hardware.
The pre-galvanized steel finish offers enhanced corrosion resistance, reducing replacement frequency in damp or industrial environments. Its robust 975 lb rating minimizes the risk of brace failure, lowering downtime and maintenance interventions. Combined with straightforward installation and compatibility with existing B-Line TOLCO systems, it supports long-term lifecycle cost savings and more predictable maintenance planning.
