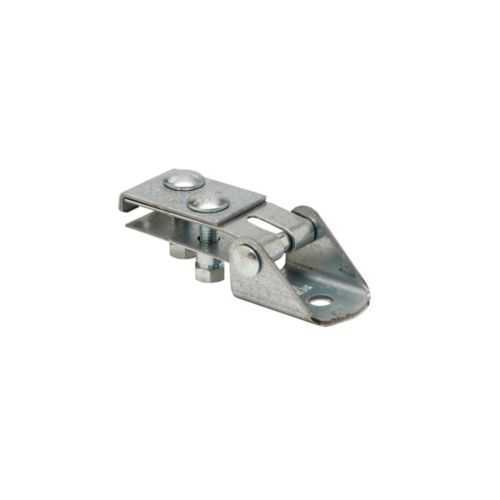

Eaton FIG 990 3/16CB 3/4 PGL - OSHPD Certified
Part Number: FIG 990 3/16CB 3/4 PGL
Quick Summary
Eaton B-Line TOLCO swivel sway brace attachment stabilizes seismic-braced MEP systems. Many facilities struggle with rapid seismic installs and retrofit compatibility in tight spaces. OSHPD Certified design supports compliant installations and reduces change orders during deployment. With 5 in length, 2.25 in width, 2.25 in height, 1.17 lb weight, and 2050 lb load capacity, it enables cost-efficient, scalable MEP bracing. The pre-galvanized steel finish extends durability in exposed environments, lowering lifecycle costs. Because it is designed for Eaton B-Line series and TOLCO hardware, installers can minimize parts, simplify mounting, and reduce field modifications. Its certified ratings and compact geometry support rapid retrofits in retrofit programs and new construction alike.
Product Information
Extended Description
FIG 990 3/16CB 3/4 PGL Eaton: Eaton B-Line series TOLCO swivel sway brace attachment, Pre-galvanized, 2050 lbs load capacity, 3/16", Steel
Product Name
Eaton B-Line series TOLCO swivel sway brace attachment
Catalog Number
FIG 990 3/16CB 3/4 PGL
UPC
782051744934
Product Length/Depth
5 in
Product Height
2.25 in
Product Width
2.25 in
Product Weight
1.17 lb
Certifications
OSHPD Certified
Finish
Pre-galvanized
Material
Steel
Size
3/16 inch
Load capacity
2050 lbs
Seismic engineering services
Seismic engineering services
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Eaton Specification Sheet - FIG 990 3/16CB 3/4 PGL
Feature: Seismic bracing capability with a 2050 lbs load capacity ensures robust performance under dynamic loads. Business Impact: Reduces risk of structural sway and misalignment, supporting code-compliant seismic installations. Application: Ideal for heavy-duty MEP runs in industrial facilities where vibration and movement are common. Feature: Pre-galvanized steel construction provides corrosion resistance and longer service life. Business Impact: Lowers maintenance costs and downtime due to corrosion-related wear. Application: Suitable for exposed or damp environments in mechanical rooms and electrical corridors. Feature: Compact footprint (5 in L x 2.25 in W x 2.25 in H) with light weight (1.17 lb). Business Impact: Simplifies installation in tight spaces and reduces material handling time. Application: Fits into crowded racks and conduit routes common in retrofit projects. Feature: Compatibility with Eaton B-Line series TOLCO systems. Business Impact: Streamlines procurement and installation, reducing field modifications and training needs. Application: Works seamlessly with existing TOLCO bracing hardware for quick, reliable assemblies. Feature: OSHPD Certification and catalog support. Business Impact: Improves compliance confidence and accelerates project approvals. Application: Essential for seismic bracing in healthcare, data centers, and industrial facilities where regulatory adherence matters.
Get a Quick Quote for a Eaton FIG 990 3/16CB 3/4 PGL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 990 3/16CB 3/4 PGL?
Enquire Now
FAQs
FIG 990 3/16CB 3/4 PGL is designed for seismic bracing in mechanical, electrical and plumbing (MEP) runs. It integrates with Eaton B-Line series TOLCO hardware to deliver stable sway control, essential in facilities subject to seismic activity or vibration. Its 2050 lb load capacity supports demanding equipment layouts while remaining compatible with standard TOLCO components.
This swivel sway brace attachment is part of the Eaton B-Line series TOLCO ecosystem, ensuring straightforward compatibility with existing TOLCO bracing and mounting accessories. Its 3/16 inch size and pre-galvanized finish simplify ordering and field installation, reducing the need for custom parts and minimizing installation time in new builds or retrofits.
To maximize seismic performance, secure the brace to rated structural anchors designed for seismic loads, follow Eaton’s installation guidelines, and confirm OSHPD compliance. Use compatible fasteners and brackets from the B-Line/TOLCO family, and verify the overall bracing path remains unobstructed to maintain the intended load path during movement.
The FIG 990 3/16CB 3/4 PGL is OSHPD Certified, supporting code-compliant seismic installations. While other certifications may vary by project, OSHPD certification is the primary standard referenced for seismic bracing in healthcare and critical facilities, aligning with industry acceptance and the catalog’s seismic guidance.
The combination of a high load rating (2050 lbs), durable pre-galvanized steel, and a lightweight form factor reduces installation time and labor costs. Long-term maintenance is minimized due to corrosion resistance and robust construction, delivering predictable lifecycle costs and faster retrofit deployments in busy industrial environments.
