Eaton FIG 990 3/16CB 5/8 PGL Swivel Sway Brace Attachment - OSHPD
Part Number: FIG 990 3/16CB 5/8 PGL
Quick Summary
Eaton B-Line TOLCO swivel sway brace attachments provide seismic bracing for electrical and mechanical installations. In retrofit projects and new builds, securing sway bracing quickly while meeting stringent codes can bottleneck schedules. OSHPD Certified, the solution aligns with seismic engineering guidelines for critical facilities. Its pre-galvanized steel construction delivers durable, maintenance-friendly support while enabling faster installation and predictable compliance. With a 2050 lb load capacity and compact 5 in length, it fits tight spaces without sacrificing strength. Designed for seamless compatibility with Eaton B-Line enclosures and framing, it simplifies inventory management and field installation. This makes it a practical choice for facilities managers seeking reliable, code-compliant bracing with predictable lead times.
Product Information
Extended Description

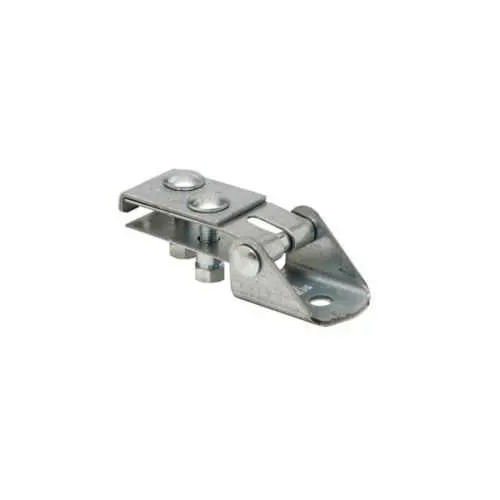

FIG 990 3/16CB 5/8 PGL Eaton: Eaton B-Line series TOLCO swivel sway brace attachment, Pre-galvanized finish, 2050 lbs load capacity, 3/16", Steel material
Product Name
Eaton B-Line series TOLCO swivel sway brace attachment
Catalog Number
FIG 990 3/16CB 5/8 PGL
UPC
782051718843
Product Length/Depth
5 in
Product Height
2.25 in
Product Width
2.25 in
Product Weight
1.17 lb
Certifications
OSHPD Certified
Finish
Pre-galvanized
Material
Steel
Size
3/16 inch
Load capacity
2050 lbs
TOLCO seismic bracing overview brochure
TOLCO seismic bracing overview brochure
Seismic engineering guidelines
Seismic engineering guidelines
Eaton Specification Sheet - FIG 990 3/16CB 5/8 PGL
Feature: The swivel sway brace attachment uses a pivoting connection that accommodates movement without overstressing framing. Business Impact: This reduces field adjustments and rework, accelerating installs and enabling tighter tolerances in crowded electrical rooms. Application: It’s ideal for securing cable trays, equipment, and conduit runs in data centers and industrial facilities. Feature: Pre-galvanized steel construction delivers corrosion resistance in challenging environments. Business Impact: Extended service life lowers replacement costs and minimizes maintenance. Application: Suitable for warehouses, manufacturing floors, and outdoor-rated installations where humidity or salt spray is a concern. Feature: 2050 lb load capacity with a compact 5 in length offers mounting flexibility. Business Impact: Supports heavy equipment and large cable bundles with fewer components, reducing hardware inventory. Application: Seismic bracing for electrical rooms, mechanical spaces, and service corridors. Feature: OSHPD certification and alignment with seismic engineering guidelines. Business Impact: Helps meet building codes, reduces audit risk, and speeds project approvals. Application: Critical facilities such as healthcare, data centers, and process plants. Feature: 3/16 inch size and 2.25 inch width/height with lightweight 1.17 lb weight. Business Impact: Improves handling, lowers freight costs, and supports quick field adjustments. Application: Works with Eaton B-Line framing and TOLCO seismic bracing systems in new construction and retrofit projects.
Get a Quick Quote for a Eaton FIG 990 3/16CB 5/8 PGL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 990 3/16CB 5/8 PGL?
Enquire Now
FAQs
To install FIG 990, verify compatibility with Eaton B-Line framing, then mount the brace using standard hardware at the designated sway brace point. The swivel joint allows minor misalignment, reducing alignment precision requirements. Tighten per project torque guidelines and ensure the pre-galvanized finish surfaces are clean to prevent corrosion. Refer to Eaton installation guidelines for step-by-step details.
The FIG 990 3/16CB 5/8 PGL swivel sway brace attachment is made from steel with a pre-galvanized finish and is rated for up to 2050 pounds of load capacity. This combination provides strong seismic bracing while resisting corrosion in typical industrial environments.
Yes. The FIG 990 3/16CB 5/8 PGL is OSHPD Certified, aligning with seismic engineering guidelines. It is suitable for seismic bracing in critical facilities such as healthcare, data centers, and other environments requiring compliant, reliable bracing solutions.
This attachment is ideal for seismic bracing of electrical rooms, mechanical spaces, data centers, and any installation using Eaton B-Line framing. Its robust load capacity and corrosion-resistant finish make it suitable for both indoor and moderately harsh environments, including retrofit projects where space and accuracy are critical.
Labor time declines with this design due to fewer fasteners and a swivel joint that reduces alignment requirements. The 5 in length and 1.17 lb weight simplify handling and transport, potentially lowering freight costs. The OSHPD-certified, durable solution also reduces compliance risk and rework, contributing to a favorable total cost of ownership over the project life.
