Eaton FIG 990 3/16CB1/2 PGL - OSHPD Certified
Part Number: FIG 990 3/16CB1/2 PGL
Quick Summary
The Eaton FIG 990 3/16CB1/2 PGL swivel sway brace attachment provides seismic bracing for electrical racks. Projects often struggle to meet load, vibration, and code requirements without adding complexity or excessive hardware. OSHPD Certified provides verified seismic performance, while the TOLCO system aligns with standard B-Line installations. In practice, this combination reduces risk, speeds installation, and supports durable, code-compliant enclosures. The product’s pre-galvanized steel finish resists corrosion in electrical rooms and mechanical spaces, while the 5 inch length and 2.25 inch width simplify mounting alongside standard racking. With a load rating of 2050 lbs, it accommodates heavy-duty bracing while remaining relatively lightweight and easy to handle on site.
Product Information
Extended Description

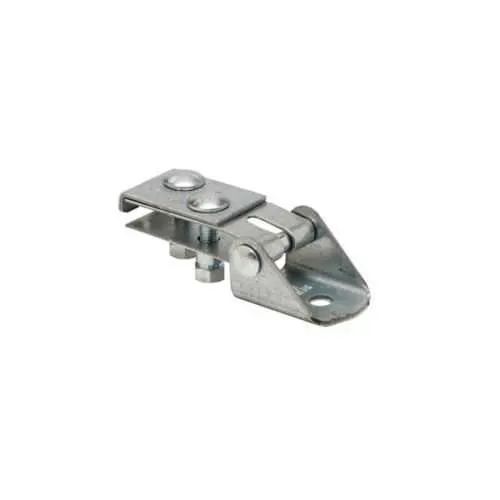

FIG 990 3/16CB1/2 PGL Eaton: Eaton B-Line series TOLCO swivel sway brace attachment, Pre-galvanized finish, 2050 lbs load capacity, 3/16", Steel
Product Name
Eaton B-Line series TOLCO swivel sway brace attachment
Catalog Number
FIG 990 3/16CB1/2 PGL
UPC
782051718836
Product Length/Depth
5 in
Product Height
2.25 in
Product Width
2.25 in
Product Weight
1.17 lb
Certifications
OSHPD Certified
Finish
Pre-galvanized
Material
Steel
Size
3/16 inch
Load capacity
2050 lbs
TOLCO seismic bracing overview brochure
TOLCO seismic bracing overview brochure
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Eaton Specification Sheet - FIG 990 3/16CB1/2 PGL
Feature: Pre-galvanized steel finish offers corrosion resistance in harsh environments. Business Impact: Prolonged service life and lower maintenance costs for seismic bracing systems. Application: Ideal for electrical rooms, mechanical spaces, and industrial environments where moisture and humidity are concerns. Feature: High load capacity of 2050 lbs ensures robust support for sway brace assemblies. Business Impact: Reduces need for multiple hardware components and minimizes retrofit work during upgrades. Application: Suitable for large electrical racks and heavy equipment bracing in data centers and manufacturing facilities. Feature: Compact dimensions (5 in length, 2.25 in width) and lightweight (1.17 lb) enable easy handling and flexible mounting. Business Impact: Speeds installation, lowers labor time, and improves on-site safety. Application: Compatible with standard racking footprints and tight mounting spaces. Feature: OSHPD Certified status provides regulatory confidence. Business Impact: Simplifies code compliance documentation and accelerates project approvals. Application: Residential, commercial, and hospital electrical rooms where seismic bracing is mandated. Feature: Part of Eaton B-Line series TOLCO family ensures seamless compatibility. Business Impact: Streamlines procurement and inventory management, reduces compatibility risk. Application: Works with existing B-Line seismic bracing catalogs and hardware ecosystems. Insight: The FIG 990 series is designed to integrate with Seismic bracing for mechanical, electrical, and plumbing systems catalogs, accelerating project timelines.
Get a Quick Quote for a Eaton FIG 990 3/16CB1/2 PGL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 990 3/16CB1/2 PGL?
Enquire Now
FAQs
Installation requires mounting to compatible racking and attachment points within the Eaton B-Line series TOLCO system. Align the swivel pivot with the brace path, secure with approved fasteners, and verify load capacity is within the 2050 lb rating. Always follow the Seismic bracing overview guidelines and catalog recommendations for best results.
Yes. The FIG 990 3/16CB1/2 PGL is part of the Eaton B-Line series TOLCO family and is designed to integrate with standard B-Line seismic bracing hardware. Use the Seismic bracing catalogs and engineering guidelines to confirm exact fitment with existing racking and brace assemblies.
The attachment supports up to 2050 lbs and is made from steel with a pre-galvanized finish. This combination provides strong, durable seismic bracing while resisting corrosion in typical electrical and mechanical spaces.
Yes. The product is OSHPD Certified, ensuring it meets recognized seismic performance standards. This certification supports compliance in code-driven installations and simplifies documentation for building approvals.
Prioritize alignment with standard racking, use compatible fasteners, and leverage the swivel design to minimize precise positioning during installation. The relatively light weight plus the 5 in length and 2.25 in width reduce labor time, while the 2050 lb capacity accommodates future equipment upgrades without hardware changes.
