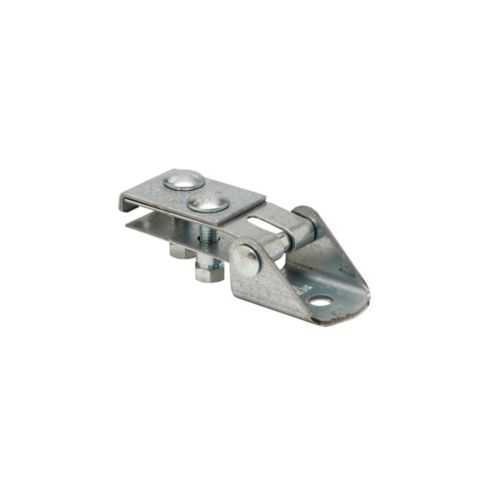

Eaton FIG 990 3/16CB3/8 PGL - OSHPD Certified 3150 lb
Part Number: FIG 990 3/16CB3/8 PGL
Quick Summary
Eaton B-Line series TOLCO swivel sway brace attachment is designed to stabilize MEP supports in seismic environments. It helps prevent sway and misalignment of critical systems during earthquakes. OSHPD Certified ensures code compliance for seismic bracing in healthcare and commercial facilities, while the pre-galvanized steel construction resists corrosion in harsh environments. This attachment pairs with standard B-Line TOLCO components for quick, reliable installations, delivering predictable performance without specialized hardware. For buyers prioritizing durability, easy installation, and verified seismic performance, this brace attachment integrates seamlessly into existing seismic bracing catalogs and procurement workflows while supporting long-term lifecycle costs.
Product Information
Extended Description
FIG 990 3/16CB3/8 PGL Eaton: Eaton B-Line series TOLCO swivel sway brace attachment, Pre-galvanized finish, 3150 lbs load capacity, 3/16", Steel
Product Name
Eaton B-Line series TOLCO swivel sway brace attachment
Catalog Number
FIG 990 3/16CB3/8 PGL
UPC
782051718829
Product Length/Depth
5 in
Product Height
2.25 in
Product Width
2.25 in
Product Weight
1.419 lb
Certifications
OSHPD Certified
Finish
Pre-galvanized
Material
Steel
Size
3/16 inch
Load capacity
3150 lbs
Seismic engineering services
Seismic engineering services
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Seismic bracing for mechanical, electrical, and plumbing systems catalog
Eaton Specification Sheet - FIG 990 3/16CB3/8 PGL
Feature: Pre-galvanized steel finish enhances corrosion resistance and long-term durability in harsh environments. Business Impact: Extends service life and reduces ongoing maintenance while preserving structural integrity in seismic bracing applications. Application: Ideal for outdoor or industrial facilities where exposure to moisture is a concern and seamless compatibility with the B-Line series is required. Feature: 3150 lbs load capacity provides a robust stabilization point for heavy MEP equipment. Business Impact: Enables lighter secondary bracing elsewhere and reduces the number of components needed, lowering total installed cost. Application: Suitable for high-load seismic bracing on rooftops or mechanical rooms serving heavy equipment. Feature: 5 in length and 2.25 in width/height with 3/16 inch size for standard rail mounting. Business Impact: Improves compatibility with common rail profiles, speeding up installation and reducing field adjustments. Application: Compatible with typical TOLCO rail layouts and snap-in fittings in new builds or retrofits. Feature: OSHPD Certified ensures seismic compliance. Business Impact: Supports code-required bracing without additional third-party verification, streamlining procurement and inspection. Application: Healthcare, commercial, and industrial facilities requiring validated seismic performance. Feature: Lightweight (1.419 lb) design with easy handling reduces labor time during installation. Business Impact: Cuts install cycles and lowers labor costs while maintaining reliability. Application: Rapid bracing of multiple runs in constrained spaces or crowded mechanical rooms. Feature: Compatible with Eaton B-Line series TOLCO system components for seamless integration. Business Impact: Reduces compatibility risk and simplifies stocking decisions for procurement teams. Application: Retrofit projects and new installations leveraging existing B-Line infrastructure.
Get a Quick Quote for a Eaton FIG 990 3/16CB3/8 PGL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FIG 990 3/16CB3/8 PGL?
Enquire Now
FAQs
The FIG 990 PGL is designed to mount on standard B-Line TOLCO rails using common hardware. Verify rail dimensions, ensure a clean attachment surface on the pre-galvanized steel, and align with seismic bracing run layouts. The 5 in length and 2.25 in width help fit typical HVAC and electrical corridors, while the 3/16 inch size matches standard mounting tolerances. OSHPD certification supports code compliance during inspections.
The swivel sway brace attachment delivers a high load rating of 3150 lbs, reducing sway and movement during seismic events. Its pre-galvanized steel construction resists corrosion, maintaining performance over time. OSHPD certification verifies compliance with seismic bracing standards, making it suitable for healthcare, commercial, and industrial facilities that require validated seismic performance.
Yes. FIG 990 is designed for seamless integration with Eaton B-Line series TOLCO components. Its 3/16 inch size and pre-galvanized steel finish ensure compatibility with typical rails and fittings, enabling straightforward retrofits or new installations without specialized adapters. This compatibility reduces procurement complexity and speeds up on-site assembly.
The product is OSHPD Certified, which confirms seismic compliance for building systems in relevant jurisdictions. This certification supports code-adherence during inspections and simplifies the approval process for seismic bracing installations. While other certifications are not listed, the OSHPD credential is a strong indicator of performance in seismic applications.
Key dimensions include a 5 in product length, 2.25 in height and width, and a 3/16 inch size, with a weight of 1.419 lb. The 3150 lb load capacity and pre-galvanized steel finish influence material costs and installation planning. These specs help engineers estimate bracket runs, rail spans, and labor requirements for seismic bracing.
