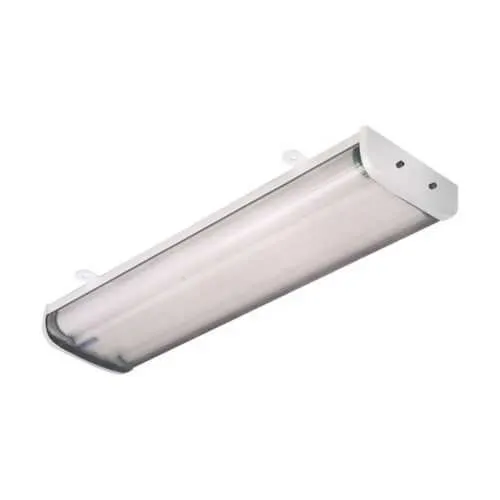

Eaton FLC217BV-1 FLC Marine Interior Light - NEC/CEC
Part Number: FLC217BV-1
Quick Summary
Eaton FLC217BV-1 is a marine interior fluorescent luminaire designed for reliable ceiling-mounted lighting aboard vessels. Engineers often battle space constraints, corrosion risks, and ballast maintenance in compact areas; this fixture’s copper-free aluminum housing and separate ballast streamline service and extend life. It carries NEC/CEC compliance and is suitable for Ordinary/Non-Hazardous Locations, supporting safe operation across 50/60 Hz power. Built for marine interior lighting, it delivers robust performance with a compact footprint, making it a dependable choice for shipboard applications while aligning with cost-of-ownership objectives in industrial environments.
Product Information
Extended Description
FLC217BV-1 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FLC marine interior, 50/60 Hz, 2 ft, Acrylic lens, T8, Copper-free aluminum, Ceiling mount, 2-lamp, Blue filter tube with separate ballast (one lamp), 120-277 Vac, 17W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FLC marine interior
Catalog Number
FLC217BV-1
UPC
662276395138
Product Length/Depth
24.75 in
Product Height
2.63 in
Product Width
7.25 in
Product Weight
6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 ft
Light type
T8
Number of lamps
2-lamp
Wattage
17W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Ceiling
Material
Copper-free aluminum
Lens material
Acrylic
Special features
Blue filter tube with separate ballast (one lamp)
Crouse-Hinds series Pauluhn FLC Marine Interior Low Profile Surface Lights catalog page
IF LBL1515 - FLC Fluorescent Luminaires
Eaton Specification Sheet - FLC217BV-1
Copper-free aluminum housing provides corrosion resistance in harsh marine environments, translating to longer service life and reduced maintenance costs on ships and offshore platforms. This 2-lamp, 2 ft fluorescent fixture offers a predictable, energy-efficient 17W per two-lamp load, contributing to lowered operational costs while maintaining lumen output for crewed workspaces and passageways. The separate ballast design paired with a blue filter tube simplifies on-deck servicing and lamp replacement, minimizing downtime during critical maintenance windows and improving overall fleet readiness. With an acrylic lens and ceiling-mount configuration, the luminaire delivers reliable illumination without compromising headroom or aesthetics in crowded engine rooms and cabins. The unit’s weight and dimensions support straightforward replacement and retrofit into existing marine interiors, enhancing compatibility across vessel types while meeting NEC/CEC standards and Ordinary/Non-Hazardous Location requirements.
Get a Quick Quote for a Eaton FLC217BV-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FLC217BV-1?
Enquire Now
FAQs
Installation is designed for ceiling mounting in marine interiors. Verify a 120-277 VAC supply, anchor to suitable ceiling structures, and connect to the ballast channel. The unit’s two-lamp arrangement fits standard 2-foot luminaire spaces, while the copper-free aluminum housing minimizes corrosion risk. Ensure the area is classified Ordinary/Non-Hazardous and follow standard electrical safety procedures during retrofits or new builds.
The FLC217BV-1 is a 2-lamp, 2-foot T8 fluorescent luminaire that operates at 120-277 VAC and 50/60 Hz, consuming 17W per fixture. It uses copper-free aluminum housing with an acrylic lens for durability, and it features a blue filter tube with a separate ballast to simplify maintenance and lamp replacement aboard vessels.
Yes. The copper-free aluminum housing provides corrosion resistance essential in salt-air environments, and the unit is designed for Ordinary/Non-Hazardous locations. The ceiling-mount installation, along with a durable acrylic lens, makes it ideal for crew quarters, passageways, and galley areas on ships and offshore platforms.
The fixture is configured to NEC/CEC standards, supporting compliant operation in marine interiors. It is classified for Ordinary/Non-Hazardous Locations, aligning with typical shipboard electrical safety requirements and reducing regulatory concerns during procurement and installation.
The separate ballast and blue-filter tube design simplify lamp replacement, reducing service time and downtime during routine maintenance. The copper-free aluminum housing enhances longevity in marine environments, lowering replacement frequency. With energy usage at 17W for a two-lamp setup, operators gain lower operating costs and improved fleet-wide reliability.
