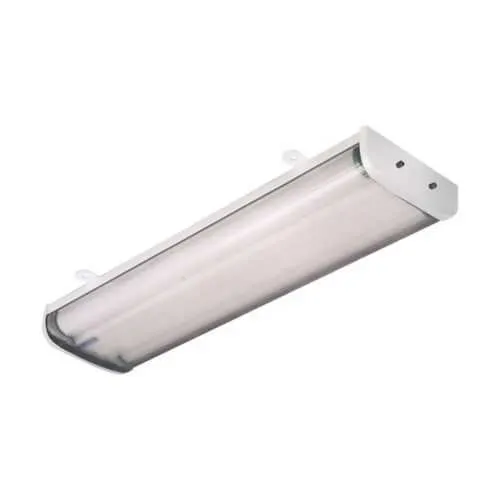

Eaton FLC217RV-1 Marine Interior Luminaires - NEC/CEC
Part Number: FLC217RV-1
Quick Summary
Eaton FLC217RV-1 marine interior fluorescent luminaire is designed to illuminate crew spaces and shipboard interiors with reliable performance in harsh environments. Engineers often struggle with corrosion, space constraints, and maintenance cycles on vessels, which can drive downtime and costs. This fixture aligns with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations aboard vessels, addressing compliance and reliability. Its compact, low-weight copper-free aluminum housing and two-lamp T8 configuration deliver energy-efficient illumination while simplifying installation and service. For operators seeking predictable maintenance intervals and a robust offshore-ready solution, the FLC217RV-1 offers a strong combination of performance and value.
Product Information
Extended Description
FLC217RV-1 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FLC marine interior, 50/60 Hz, 2 ft, Acrylic lens, T8, Copper-free aluminum, Ceiling mount, 2-lamp, Red filter tube with separate ballast (one lamp), 120-277 Vac, 17W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FLC marine interior
Catalog Number
FLC217RV-1
UPC
662276395183
Product Length/Depth
24.75 in
Product Height
2.63 in
Product Width
7.25 in
Product Weight
6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 ft
Light type
T8
Number of lamps
2-lamp
Wattage
17W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Ceiling
Material
Copper-free aluminum
Lens material
Acrylic
Special features
Red filter tube with separate ballast (one lamp)
Crouse-Hinds series Pauluhn FLC Marine Interior Low Profile Surface Lights catalog page
IF LBL1515 - FLC Fluorescent Luminaires
Eaton Specification Sheet - FLC217RV-1
Feature: Two-lamp T8 fluorescent design provides balanced lighting with low energy consumption. Business Impact: Delivers high lumen output per watt, reducing energy costs while maintaining consistent illumination across long corridors and work areas. Application: Ideal for crew quarters, engine rooms, and cargo holds where reliable light is critical. Feature: Copper-free aluminum housing delivers excellent corrosion resistance in salt-air environments. Business Impact: Extends service life and lowers maintenance frequency, lowering total cost of ownership. Application: Offshore platforms and marine interiors exposed to humidity and salinity. Feature: Acrylic lens offers impact resistance and durability. Business Impact: Minimizes lens damage from maintenance activity and rough handling, improving uptime. Application: High-traffic shipboard areas such as galleys and passageways. Feature: Ceiling mounting with a 24.75 in length and 7.25 in width ensures easy retrofit and compatibility with standard marine ceilings. Business Impact: Simplifies installation, reduces labor time, and enables rapid upgrades during drydock cycles. Application: Vessel interiors with limited mounting depth. Feature: 120-277 Vac, 50/60 Hz electrical rating supports diverse shipboard electrical systems. Business Impact: Broad compatibility reduces inventory and simplifes electrical design. Application: Global fleets with varying power configurations. Feature: Red filter tube with separate ballast (one lamp) provides targeted signaling options. Business Impact: Enables diagnostic or signaling lighting for maintenance and safety workflows without additional components. Application: Control rooms and indicator zones on ships.
Get a Quick Quote for a Eaton FLC217RV-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FLC217RV-1?
Enquire Now
FAQs
The FLC217RV-1 is designed for ceiling mounting, with a compact 24.75 inch length and 7.25 inch width, weighing about 6 pounds. Its two-lamp, 2 ft configuration fits standard marine ceiling layouts, and the copper-free aluminum housing simplifies mounting hardware selection. Installers benefit from straightforward wiring within the 120-277 Vac, 50/60 Hz supply range while preserving available headroom for service access.
Key specifications include a two-lamp configuration with 17 W per lamp, T8 lamps, and a voltage rating of 120–277 Vac operating at 50/60 Hz. The fixture uses a separate ballast per lamp with a red filter tube option, enabling targeted lighting or signaling. The overall system is designed for ordinary/non-hazardous locations aboard vessels.
Yes. The FLC217RV-1 is specified for Ordinary/Non-Hazardous Locations and is intended for marine interior applications such as crew quarters, corridors, galleys, and machine spaces. Its marine-oriented construction and lighting performance support reliable visibility in demanding environments without exceeding power budgets.
This luminaire complies with NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations, aligning with marine interior installation requirements. While not a hazardous-area rating, its design supports safe operation aboard vessels under typical shipping and offshore regulations.
The copper-free aluminum housing resists saltwater corrosion, extending service life in marine environments. A two-lamp, low-wattage design reduces energy consumption, while separate ballast per lamp simplifies lamp replacement and reduces ballast-related downtime. Overall, this translates to lower maintenance costs, shorter downtime, and improved uptime for critical vessel areas.
