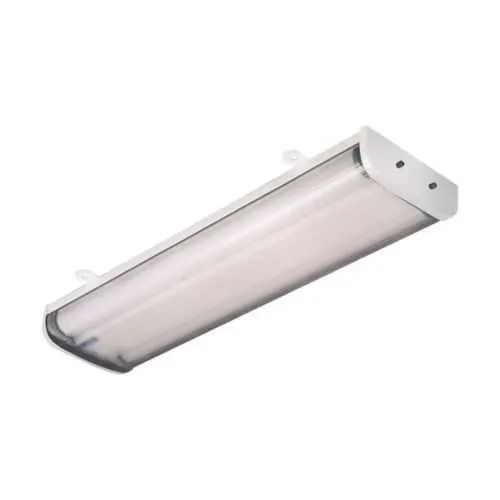

Eaton FLC232EMT2L Marine Interior Luminaire - NEC/CEC
Part Number: FLC232EMT2L
Quick Summary
Eaton FLC232EMT2L marine interior luminaire provides reliable 4 ft T8 lighting for ships and offshore platforms. In demanding marine environments, downtime and outages threaten safety and productivity, so dependable illumination is essential. This luminaire is designed to meet NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, offering regulatory assurance for onboard applications. With a copper-free aluminum housing, acrylic lens, and a built-in emergency battery back-up ballast, it delivers resilience and code compliance. Ceiling-mounted with lamp included and test switch, it reduces maintenance costs while ensuring personnel have consistent lighting during power loss, supporting efficient operations and safer work environments.
Product Information
Extended Description
FLC232EMT2L Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FLC marine interior, 50/60 Hz, 4 ft, Acrylic lens, T8, Copper-free alum, Ceiling mount, 2-lamp, Emergency battery back-up ballast, one lamp, 277V max., test switch, lamp included, 120-277 Vac, 32W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FLC marine interior
Catalog Number
FLC232EMT2L
UPC
662276458512
Product Length/Depth
48.75 in
Product Height
2.63 in
Product Width
7.25 in
Product Weight
11.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
4 ft
Light type
T8
Number of lamps
2-lamp
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Ceiling
Material
Copper-free aluminum
Lens material
Acrylic
Special features
Emergency battery back-up ballast, one lamp, 277V max., test switch, lamp included
Crouse-Hinds series Pauluhn FLC Marine Interior Low Profile Surface Lights catalog page
IF LBL1515 - FLC Fluorescent Luminaires
Eaton Specification Sheet - FLC232EMT2L
Feature → Business Impact → Application: The 4 ft, 2-lamp T8 configuration delivers high lumen output with low energy use, reducing operating costs while maintaining critical visibility in cargo holds and passageways. This design, with copper-free aluminum housing and an acrylic lens, enhances corrosion resistance in marine atmospheres, increasing service life and reducing replacement cycles on vessels. Feature → Business Impact → Application: Emergency battery back-up ballast and a built-in test switch provide immediate illumination during power loss, improving safety during man-overboard drills and routine maintenance in dim areas. Feature → Business Impact → Application: Ceiling mounting and a compact footprint (48.75 in x 7.25 in x 2.63 in) fit standard marine ceilings without structural modifications, accelerating installation and minimizing downtime. Feature → Business Impact → Application: 120–277 Vac and 50/60 Hz compatibility ensure reliable operation across diverse shipboard electrical systems, reducing integration complexity for fleet-wide deployments. Feature → Business Impact → Application: Lamp included simplifies procurement and reduces total cost of ownership by avoiding separate lamp sourcing and ballast upgrades. Feature → Business Impact → Application: Ordinary/Non-Hazardous Locations certification aligns with common shipboard spaces, streamlining compliance while delivering trusted performance in daily operations.
Get a Quick Quote for a Eaton FLC232EMT2L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FLC232EMT2L?
Enquire Now
FAQs
The unit is ceiling-mounted with dimensions of 48.75 in long, 7.25 in wide and 2.63 in high, weighing 11.6 lb. It uses a copper-free aluminum housing with an acrylic lens, supports two 32W T8 lamps, and operates on 120–277 VAC at 50/60 Hz. Lamp is included and a test switch is provided for ongoing safety checks.
This luminaire operates at 120–277 VAC and 50/60 Hz, delivering 32W of power across two lamps. It features an emergency battery back-up ballast with 277V maximum for back-up operation and is designed for compatibility with common shipboard electrical systems without requiring separate ballast upgrades.
Yes. It is intended for Ordinary/Non-Hazardous Locations in marine interiors and complies with NEC/CEC standards. The copper-free aluminum construction and acrylic lens provide corrosion resistance suitable for maritime environments, supporting reliable performance in everyday shipboard applications.
The integrated emergency ballast ensures illumination during power outages, improving safety and operations continuity. The built-in test switch enables routine verification of the battery back-up system without external tools, reducing maintenance effort and ensuring readiness for emergency scenarios.
With copper-free aluminum housing and an acrylic lens, the luminaire offers enhanced corrosion resistance for marine duty. The unit ships with a lamp and features a test switch and emergency ballast, reducing replacement frequency and simplifying procurement. The ceiling-mount design also minimizes maintenance access time during routine inspections.
