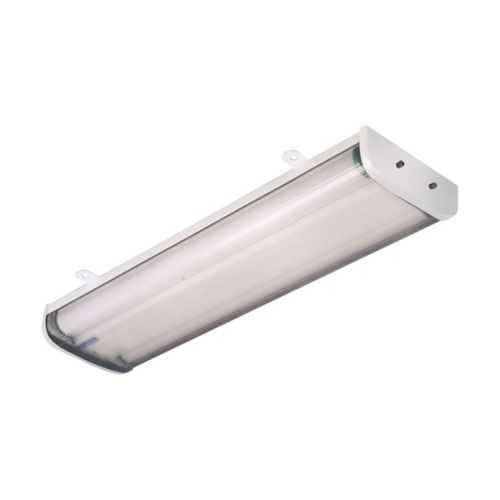

Eaton FLC240 Luminaire - Marine Interior
Part Number: FLC240
Quick Summary
Eaton FLC240 Luminaire provides reliable fluorescent lighting for marine interior applications. The compact 4 ft, 2-lamp fixture is engineered to withstand shipboard conditions where downtime and maintenance costs drive decisions. It addresses common pain points like corrosion-prone gear, glare, and difficult service by using a copper-free aluminum housing and an acrylic lens. NEC/CEC-compliant construction and correct area classification for Ordinary/Non-Hazardous Locations ensure code conformity without overspecifying. The 120 VAC, 60 Hz supply compatibility, along with ceiling-mount installation and standard T12ES lamps, delivers straightforward procurement and predictable lifecycle costs for fleet operators and contractors.
Product Information
Extended Description
FLC240 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FLC marine interior, 60 Hz, 4 ft, Acrylic lens, T12ES, Copper-free aluminum, Ceiling mount, 2-lamp, 120 Vac, 34W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FLC marine interior
Catalog Number
FLC240
UPC
662276395299
Product Length/Depth
48.75 in
Product Height
2.63 in
Product Width
7.25 in
Product Weight
10.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
4 ft
Light type
T12ES
Number of lamps
2-lamp
Wattage
34W
Voltage rating
120 Vac
Frequency rating
60 Hz
Mounting Method
Ceiling
Material
Copper-free aluminum
Lens material
Acrylic
Eaton Crouse-Hinds FLC240 3D drawing
Crouse-Hinds series Pauluhn FLC Marine Interior Low Profile Surface Lights catalog page
IF LBL1515 - FLC Fluorescent Luminaires
Eaton Specification Sheet - FLC240
Copper-free aluminum housing and an acrylic lens deliver excellent corrosion resistance and long service life in damp marine interiors, reducing maintenance and replacement costs while improving reliability in harsh environments. The 4 ft length with a 2-lamp, 34W configuration operating on 120 VAC at 60 Hz aligns with standard vessel electrical systems, delivering consistent illumination with minimal energy waste and a favorable total cost of ownership. Ceiling-mount installation simplifies retrofits and new builds, enabling rapid deployment in overhead spaces and reducing labor risk. Compliance with NEC/CEC standards and an area classification of Ordinary/Non-Hazardous Locations minimizes regulatory exposure and streamlines procurement for shipyards and offshore facilities. The fixture’s weight and modular lamp design support straightforward servicing, with 4 ft lamp length and T12ES lamps contributing to predictable inventory planning and lifecycle planning.
Get a Quick Quote for a Eaton FLC240
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FLC240?
Enquire Now
FAQs
The FLC240 is designed for ceiling mounting and is compatible with standard 120 VAC, 60 Hz electrical systems found on marine vessels and offshore facilities. With a 4 ft length and 2-lamp configuration, it fits typical ceiling cavities and aligns with common 4 ft ballast and conduit layouts. Ensure a suitable electrical box, secure mounting surface, and access for lamp replacement during maintenance planning.
This luminaire uses 34W total power with two lamps in a 4 ft arrangement, powered by 120 VAC at 60 Hz. It employs T12ES lamps and a copper-free aluminum housing with an acrylic lens. These specs support predictable energy consumption, straightforward stock management, and reliable light output in marine interiors while meeting standard electrical codes.
Yes. The FLC240 is specifically designed for marine interior use, suitable for ordinary/non-hazardous locations. Its copper-free aluminum housing and acrylic lens resist damp environments, and the ceiling-mount configuration is ideal for overhead spaces in cabins, galleys, and work areas on vessels and offshore facilities.
The FLC240 complies with NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations. This combination supports code-conformant installation on ships and offshore installations while simplifying procurement and regulatory review for marine contractors and fleet managers.
Plan for lamp replacement with standard 4 ft T12ES lamps and periodic cleaning of the acrylic lens to sustain light output. The copper-free aluminum housing improves corrosion resistance, reducing maintenance intervals in damp environments. The 2-lamp configuration provides redundancy and easier stocking of replacement parts, supporting a lower total cost of ownership over the asset lifecycle.
