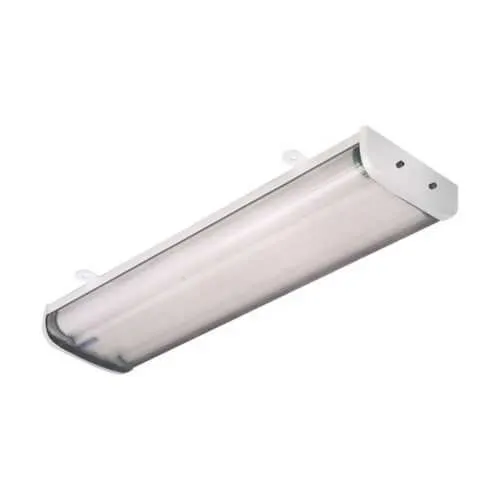

Eaton FLC240EMT2 Marine Interior Light - NEC/CEC
Part Number: FLC240EMT2
Quick Summary
The FLC240EMT2 is a marine interior fluorescent luminaire for ceiling-mounted cabin lighting on vessels. Designed for harsh marine environments, it minimizes maintenance downtime and ensures reliable illumination during power outages. NEC/CEC compliant and rated for Ordinary/Non-Hazardous Locations, this fixture integrates a two-lamp 4 ft configuration with an acrylic lens and copper-free aluminum housing to resist corrosion. The emergency back-up ballast supports continued visibility when shore power is disrupted, while a convenient test switch streamlines routine checks. In practice, this fixture delivers dependable performance for crew areas, engine rooms, and passageways, helping ship operators meet onboard safety standards and reduce lifecycle costs. Its compact, low-profile form also simplifies retrofits and new installations, making it a versatile choice for marine lighting programs.
Product Information
Extended Description
FLC240EMT2 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FLC marine interior, 60 Hz, 4 ft, Acrylic lens, T12ES, Copper-free aluminum, Ceiling mount, 2-lamp, Emergency battery back-up ballast, one lamp, 277V max., test switch, 120 Vac, 34W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FLC marine interior
Catalog Number
FLC240EMT2
UPC
662276395312
Product Length/Depth
48.75 in
Product Height
2.63 in
Product Width
7.25 in
Product Weight
13.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
4 ft
Light type
T12ES
Number of lamps
2-lamp
Wattage
34W
Voltage rating
120 Vac
Frequency rating
60 Hz
Mounting Method
Ceiling
Material
Copper-free aluminum
Lens material
Acrylic
Special features
Emergency battery back-up ballast, one lamp, 277V max., test switch
Crouse-Hinds series Pauluhn FLC Marine Interior Low Profile Surface Lights catalog page
IF LBL1515 - FLC Fluorescent Luminaires
Eaton Specification Sheet - FLC240EMT2
Feature: Two-lamp 4 ft fluorescent luminaire with T12ES lamps and 34W per lamp. Business Impact: Delivers solid illumination while keeping electrical load predictable, enabling consistent lighting design across multiple vessel zones and reducing power consumption compared to older fixtures. Application: Ideal for cabins, corridors, and galley areas where reliable 60 Hz, 120 VAC duty is required. Feature: Copper-free aluminum housing and acrylic lens. Business Impact: Improves corrosion resistance in salt-rich marine environments, extending service life and lowering maintenance costs over time. Application: Suitable for engines rooms and high-humidity interiors where moisture exposure is common. Feature: Emergency battery back-up ballast with a test switch. Business Impact: Enables uninterrupted lighting during power loss, supporting safety egress and compliance without manual intervention. Application: Critical for crew safety corridors and escape routes aboard ships and offshore platforms. Feature: Ceiling mounting with a 4 ft length and 2-lamp configuration. Business Impact: Reduces fixture count and installation complexity, shortening project timelines and simplifying retrofits in existing hulls. Application: Convenient for bulkhead ceilings, cabin roofs, and overhead lighting schemes. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating. Business Impact: Ensures regulatory alignment and safer operation in standard shipboard environments, mitigating compliance risk. Application: Procurement teams can standardize on a single, code-compliant luminaire for mixed fleets. Industry insight: For marine programs, matching fixture form factor, lens material, and ballast options to the vessel class minimizes spare-part inventory while maximizing uptime during sea trials and routine maintenance.
Get a Quick Quote for a Eaton FLC240EMT2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FLC240EMT2?
Enquire Now
FAQs
Install the FLC240EMT2 as a ceiling-mounted, 4 ft luminaire using the two-lamp configuration. Ensure the mounting surface supports copper-free aluminum housing and acrylic lens exposure to marine environments. Verify power is supplied at 120 VAC, 60 Hz, and integrate the emergency ballast and test switch for continuous operation during power interruptions.
The unit operates at 120 VAC, 60 Hz with two T12ES lamps drawing 34W each. It includes an emergency battery back-up ballast with a 277V max capability and a test switch for routine verification. The 4 ft, two-lamp configuration is designed for predictable cycling and reliable illumination in standard shipboard zones.
Yes. The fixture is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, making it appropriate for typical crew areas, corridors, and cargo spaces on vessels where standard lighting and safety requirements apply, while providing corrosion resistance and robust construction for maritime use.
The FLC240EMT2 is NEC/CEC compliant and rated for Ordinary/Non-Hazardous Locations. These certifications ensure electrical safety and compatibility with North American marine electrical systems, reducing regulatory risk during audits and facilitating fleet-wide standardization.
The unit’s emergency ballast provides lighting continuity during power outages, while the copper-free aluminum housing and acrylic lens resist corrosion, extending service life. The test switch simplifies checks, and the 4 ft, two-lamp design lowers fixture counts, delivering lower maintenance costs and faster future retrofits across fleets.
