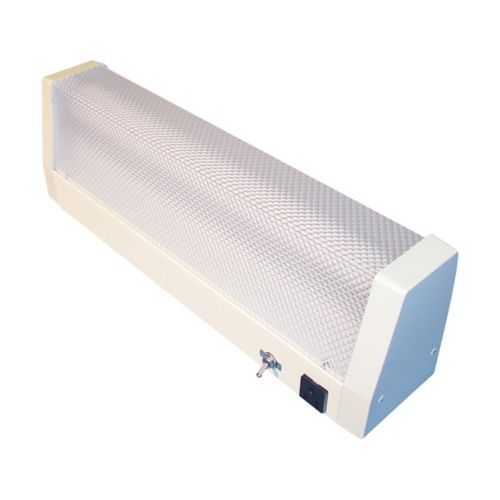

Eaton FN115 Berth/Mirror Interior Light - NEC/CEC
Part Number: FN115
Quick Summary
FN115 Berth/Mirror Interior Light from Eaton delivers reliable illumination for marine berths and mirrors. Engineers often wrestle with compact, vibration-resistant lighting that fits tight cabin spaces while meeting electrical and safety standards. This fixture carries NEC/CEC compliance and an Ordinary/Non-Hazardous Locations rating, ensuring shipboard utility and crew safety. With a wall-mount design and 15W T8 lamp, it integrates easily into standard marine wiring, delivering dependable performance without sacrificing space or service life. It also supports cost savings through energy efficiency and straightforward maintenance, strengthening overall vessel lighting reliability.
Product Information
Extended Description
FN115 Eaton: Eaton Crouse-Hinds series Pauluhn FN marine interior, 60 Hz, Acrylic lens, T8, Aluminum, Wall mount, 1-lamp, Berth/mirror type, 120 Vac, 15W
Product Name
Eaton Crouse-Hinds series Pauluhn FN marine interior
Catalog Number
FN115
UPC
662276395404
Product Length/Depth
18.75 in
Product Height
6 in
Product Width
4.25 in
Product Weight
6.3 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Berth/mirror
Number of lamps
1-lamp
Wattage
15W
Light type
T8
Mounting Method
Wall
Material
Aluminum
Lens material
Acrylic
Voltage rating
120 Vac
Frequency rating
60 Hz
Eaton Crouse-Hinds FN115 3D drawing
Crouse-Hinds series Pauluhn FN Marine Interior Berth and Mirror Lights catalog page
Eaton Specification Sheet - FN115
The FN115 uses a 15W, 1-lamp T8 configuration on a 120 VAC, 60 Hz supply, delivering bright yet energy-efficient cabin lighting. This reduces overall power draw on vessels while maintaining consistent illumination in berths and mirror areas. The aluminum housing provides robust protection against corrosion and mechanical impact typical of marine interiors, extending service life and lowering maintenance intervals. An acrylic lens resists yellowing and scratching, preserving clear light transmission across voyage cycles and enabling quick, tool-free lamp replacement by maintenance crews. Designed for wall mounting in berth/mirror applications, the unit fits compact cabin geometries with an 18.75 in length and 4.25 in width, enabling flexible placement without sacrificing headroom. NEC/CEC compliance and Ordinary/Non-Hazardous Locations classification reduce regulatory risk, streamline procurement, and support fleet-wide standardization. The 6 in height and 6.3 lb weight balance is ideal for space-constrained compartments, while standard 120 VAC wiring simplifies installation for both new builds and retrofits. In practice, specifying FN115 supports lifecycle cost reduction through predictable maintenance planning, longer service intervals, and compatibility with common marine electrical systems.
Get a Quick Quote for a Eaton FN115
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FN115?
Enquire Now
FAQs
FN115 is designed for wall mounting as a Berth/Mirror interior light. It fits standard berth spaces and mirrors in marine cabins, with dimensions of 18.75 in length, 6 in height, and 4.25 in width. Install on 120 VAC circuits at 60 Hz and use the single 1-lamp 15W T8 configuration.
FN115 operates at 120 VAC, 60 Hz, drawing 15 watts with a single 1-lamp T8 configuration. The housing is aluminum and the lens is acrylic, designed for reliable illumination in marine interiors and easy replacement when needed.
Yes. FN115 is certified for NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, making it appropriate for shipboard interiors that do not involve hazardous locations.
The durable aluminum housing and acrylic lens resist corrosion and impact, reducing maintenance frequency. The energy-efficient 15W load lowers operating costs, while the straightforward 1-lamp design simplifies replacement during voyages.
Consult Eaton’s official resources: the Crouse-Hinds Pauluhn FN Marine Interior Berth and Mirror Lights catalog page and the Eaton specification sheet for FN115, plus access to 3D CAD drawings via the provided links.
