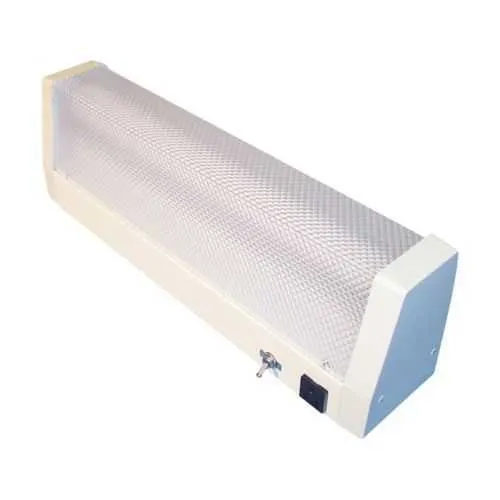

Eaton FN117LLCO Marine Interior Berth Light - NEC/CEC
Part Number: FN117LLCO
Quick Summary
FN117LLCO marine interior berth light is a robust, one-lamp lighting solution designed for vessel cabins and berths. It delivers reliable 17W T8 illumination in space-constrained environments, reducing maintenance and replacement cycles on ships. Installing marine interior lighting in challenging locations can be difficult; this fixture supports universal 120-277Vac supply and a wall-mount Berth/mirror configuration that fits tight quarters. It also aligns with NEC/CEC standards and is classified for Ordinary/Non-Hazardous locations, strengthening safety and compliance in mixed marine environments. For fleets pursuing predictable performance and quick retrofits, this Pauluhn FN series light offers durability, easy lamp replacement, and compatibility with standard T8 lamps.
Product Information
Extended Description
FN117LLCO Eaton: Eaton Crouse-Hinds series Pauluhn FN marine interior, 50/60 Hz, Acrylic lens, T8, Aluminum, Wall mount, 1-lamp, Lamp included, without convenience outlet, Berth/mirror type, 120-277 Vac, 17W
Product Name
Eaton Crouse-Hinds series Pauluhn FN marine interior
Catalog Number
FN117LLCO
UPC
662276453838
Product Length/Depth
24.75 in
Product Height
6 in
Product Width
4.25 in
Product Weight
5.95 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Berth/mirror
Number of lamps
1-lamp
Wattage
17W
Light type
T8
Mounting Method
Wall
Material
Aluminum
Lens material
Acrylic
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Special features
Lamp included, without convenience outlet
Crouse-Hinds series Pauluhn FN Marine Interior Berth and Mirror Lights catalog page
Eaton Specification Sheet - FN117LLCO
The FN117LLCO is engineered for compact spaces on ships and offshore platforms, using a single 17W T8 lamp to deliver efficient illumination with minimal heat. This energy-efficient approach reduces operating costs while maintaining dependable brightness for berth areas and mirrors. The fixture accepts a universal 120-277Vac supply at 50/60 Hz, simplifying electrical planning and spare parts inventory across fleets. Its aluminum housing and acrylic lens resist corrosion in salt-air environments, ensuring long service life with minimal maintenance. Wall mounting and a Berth/mirror design maximize space utilization in tight corridors and cabins. Lamps are included, eliminating an extra procurement step and expediting installation while reducing downtime. The absence of a convenience outlet further lowers risk in wet marine zones. Compliance with NEC/CEC and Ordinary/Non-Hazardous location classifications supports regulator-ready shipboard installations.
Get a Quick Quote for a Eaton FN117LLCO
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FN117LLCO?
Enquire Now
FAQs
Designed for wall mounting in berth and mirror applications, the FN117LLCO fits compact spaces on ships and offshore vessels. It ships with a lamp included and requires no external convenience outlet, simplifying power routing. With a length of 24.75 in and a width of 4.25 in, plan cutouts and mounting hardware accordingly to ensure a secure fit.
The FN117LLCO operates at 120–277 Vac with a 50/60 Hz frequency and uses a single 17W T8 lamp. This universal voltage range supports mixed power systems on vessels, enabling consistent brightness without multiple transformers. The result is predictable performance, lower energy use, and easier spare parts management across fleets.
Yes. It is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, making it appropriate for non-hazardous marine interiors. Its rugged aluminum housing and acrylic lens resist corrosion from sea air, while the wall-mount Berth/mirror design saves space in tight crew cabins.
The fixture carries Ordinary/Non-Hazardous Locations area classification and NEC/CEC standards compliance. These certifications ensure the product is appropriate for non-hazardous maritime environments and adheres to critical electrical safety requirements, reducing regulatory risk and simplifying fleet-wide approvals for shipboard installations.
Lamps are included, reducing installation time and downtime. The 17W energy-efficient lamp lowers operating costs compared to older models, while the aluminum housing and acrylic lens resist corrosion, extending service life in marine conditions. Minimal maintenance, quick lamp replacement, and standardized voltage support improve fleet ROI.
