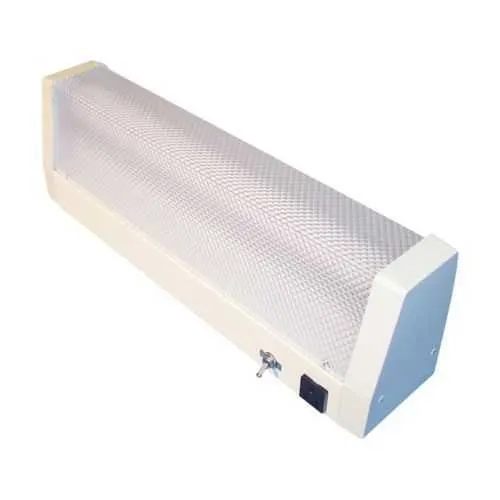

Eaton FN215 Marine Interior Berth/Mirror Light - NEC/CEC
Part Number: FN215
Quick Summary
Eaton FN215 marine interior berth/mirror light delivers reliable cabin illumination for vessel berths. Shipboard environments demand compact, vibration-tolerant fixtures that stay bright with minimal maintenance. The FN215 carries NEC/CEC compliance and an Ordinary/Non-Hazardous Locations rating, supporting safe, code-compliant installations on commercial and recreational vessels. Its rugged aluminum housing and acrylic lens resist harsh marine conditions, while a wall-mount design simplifies retrofits in tight berths and cabins. Designed for 60 Hz, 120 Vac circuits, it delivers consistent performance across vessel power configurations.
Product Information
Extended Description
FN215 Eaton: Eaton Crouse-Hinds series Pauluhn FN marine interior, 60 Hz, Acrylic lens, T8, Aluminum, Wall mount, 2-lamp, Berth/mirror type, 120 Vac, 15W
Product Name
Eaton Crouse-Hinds series Pauluhn FN marine interior
Catalog Number
FN215
UPC
662276395510
Product Length/Depth
18.75 in
Product Height
6 in
Product Width
4.25 in
Product Weight
6.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Berth/mirror
Number of lamps
2-lamp
Wattage
15W
Light type
T8
Mounting Method
Wall
Material
Aluminum
Lens material
Acrylic
Voltage rating
120 Vac
Frequency rating
60 Hz
Eaton Crouse-Hinds FN215 3D drawing
Crouse-Hinds series Pauluhn FN Marine Interior Berth and Mirror Lights catalog page
Eaton Specification Sheet - FN215
Feature: Two-lamp, 15W T8 configuration provides balanced illumination while keeping energy use low. Business Impact: Reduces power draw and heat load, improving overall energy efficiency and operational costs for fleet lighting. Application: Ideal for berth and mirror areas where reliable light levels are needed without frequent bulb replacements. Feature: Aluminum housing with acrylic lens offers corrosion resistance in salt spray environments. Business Impact: Extends service life and lowers maintenance costs in marine interiors. Application: Dockside and offshore vessels require durable materials; FN215 meets those needs. Feature: Wall-mount installation and compact footprint simplify retrofits in tight cabins. Business Impact: Speeds up installation, minimizes structural changes, and enables modular upgrades. Application: Fits standard cabin walls and berths. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Locations rating ensure code-conforming operation. Business Impact: Reduces compliance risk and accelerates procurement approvals. Application: Suitable for non-hazardous shipboard locations.
Get a Quick Quote for a Eaton FN215
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FN215?
Enquire Now
FAQs
FN215 is designed for wall mounting in berths and marine interiors. It operates on standard 120 Vac, 60 Hz circuits and fits within ordinary/non-hazardous locations per NEC/CEC. Ensure proper clearance around the 18.75 in length, 6 in height, and 4.25 in width, and verify supply wiring meets maritime electrical codes.
FN215 employs a 2-lamp configuration using T8 lamps at 15 W total. It runs on 120 Vac at 60 Hz, with an acrylic lens and aluminum housing for durability. Dimensions are 18.75 in long, 6 in high, 4.25 in wide, and it weighs about 6.2 lb—designed for wall mounting in marine interiors.
FN215 is rated for Ordinary/Non-Hazardous Locations per area classification and NEC/CEC standards. It is not intended for hazardous locations. For ships operating in restricted or hazardous zones, consider alternative luminaires with appropriate IP and hazard ratings and confirm compatibility with vessel electrical systems.
Yes. Eaton provides comprehensive technical documentation for FN215, including a 3D CAD drawing package, a Crouse-Hinds FN Marine Interior catalog page, and a dedicated specification sheet. These resources support precise installation planning, compatibility verification with existing shipboard luminaires, and correct integration with mounting provisions and electrical connections.
The 2-lamp 15W design minimizes power draw while delivering adequate cabin illumination, reducing energy costs on fleets. Regular lamp replacement is straightforward due to accessible mounting, and the aluminum-aluminum housing resists corrosion, lowering maintenance frequency and extending service life for marine interiors.
