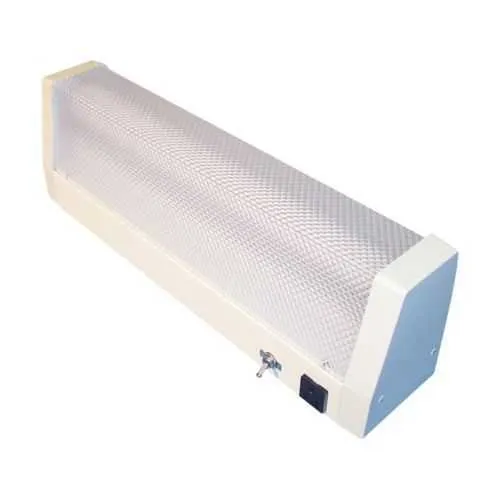

Eaton FN215LCO Berth/mirror interior light - NEC/CEC
Part Number: FN215LCO
Quick Summary
FN215LCO is a marine interior light fixture delivering berth and mirror illumination on vessels. This solution addresses the common challenge of cramped, moisture-prone spaces by providing reliable, compact lighting that remains durable under marine conditions. It aligns with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, supporting safe electrical practices in shipboard environments. The wall-mount design, 2-lamp configuration, and 15W per lamp efficacy deliver energy-efficient illumination with straightforward installation, helping maintenance teams reduce downtime while improving crew comfort and operational readiness on deck and in crew berths.
Product Information
Extended Description
FN215LCO Eaton: Eaton Crouse-Hinds series Pauluhn FN marine interior, 60 Hz, Acrylic lens, T8, Aluminum, Wall mount, 2-lamp, Without convenience outlet, Berth/mirror type, 120 Vac, 15W
Product Name
Eaton Crouse-Hinds series Pauluhn FN marine interior
Catalog Number
FN215LCO
UPC
662276395534
Product Length/Depth
18.75 in
Product Height
6 in
Product Width
4.25 in
Product Weight
6.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Berth/mirror
Number of lamps
2-lamp
Wattage
15W
Light type
T8
Mounting Method
Wall
Material
Aluminum
Lens material
Acrylic
Voltage rating
120 Vac
Frequency rating
60 Hz
Special features
Without convenience outlet
Crouse-Hinds series Pauluhn FN Marine Interior Berth and Mirror Lights catalog page
Eaton Specification Sheet - FN215LCO
Feature: 2-lamp, 15W T8 configuration with 120 VAC 60 Hz input. Business impact: Low power consumption and consistent lumen output reduce energy costs and heat generation, extending component life in tight crew spaces. Application: Ideal for berths and mirrors where dependable, efficient lighting is essential for routine tasks and inspections. Feature: Aluminum housing with an acrylic lens and wall-mount capability. Business impact: Durable construction offers corrosion resistance in humid marine environments and simplifies retrofits or new installations, lowering maintenance and replacement frequency. Application: Suitable for interior shipboard mounting in cabins and companionways where rugged, easy-to-clean surfaces are valued. Feature: Berth/mirror type with no convenience outlet. Business impact: Reduces wiring complexity and space consumption while limiting potential moisture ingress from outlets, enhancing safety and reliability. Application: Particularly advantageous in compact berthing areas and mirror stations where space efficiency matters. Feature: Compliance with NEC/CEC standards and Ordinary/Non-Hazardous location rating. Business impact: Helps installers meet regulatory requirements and insurers’ expectations, minimizing risk and accelerating procurement approvals. Application: Compatible with standard marine electrical practices and shipboard service conditions. Feature: Dimensional and weight specs (18.75 in length, 6 in height, 4.25 in width, 6.2 lb). Business impact: Predictable footprint simplifies integration with existing berths and light layouts, reducing modification work and installation time. Application: Fits common berth/mirror enclosures and wall-cut-outs on vessels.
Get a Quick Quote for a Eaton FN215LCO
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FN215LCO?
Enquire Now
FAQs
FN215LCO is designed for 120 VAC, 60 Hz operation and features a wall-mount design with dimensions that fit typical berth and mirror installations on vessels. The rugged aluminum housing and acrylic lens simplify mounting, wiring, and future maintenance, while ensuring secure performance in humid marine cabins.
The fixture uses two 15W lamps (T8) powered at 120 VAC. This configuration delivers adequate illumination for berths and mirror areas while minimizing power draw and heat generation compared with higher-wattage options, contributing to lower energy costs and longer lamp life in continuous-use maritime settings.
Yes. With a berth/mirror design, 18.75 in length, 6 in height, and 4.25 in width, plus a 6.2 lb weight, it fits common shipboard spaces. The aluminum housing and acrylic lens resist corrosion, and the fixture supports reliable performance in ordinary non-hazardous locations while meeting relevant electrical standards.
FN215LCO complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. This ensures alignment with typical marine electrical practices, supports regulatory compliance, and reduces risk during procurement and installation for vessel projects.
The aluminum housing and acrylic lens provide durable, easy-to-clean surfaces with reduced corrosion risk, lowering maintenance frequency. The energy-efficient 15W per lamp design lowers ongoing power costs, while the compact, no-convenience-outlet configuration minimizes potential failure points and simplifies installation, delivering favorable return on investment for fleet or vessel retrofit projects.
